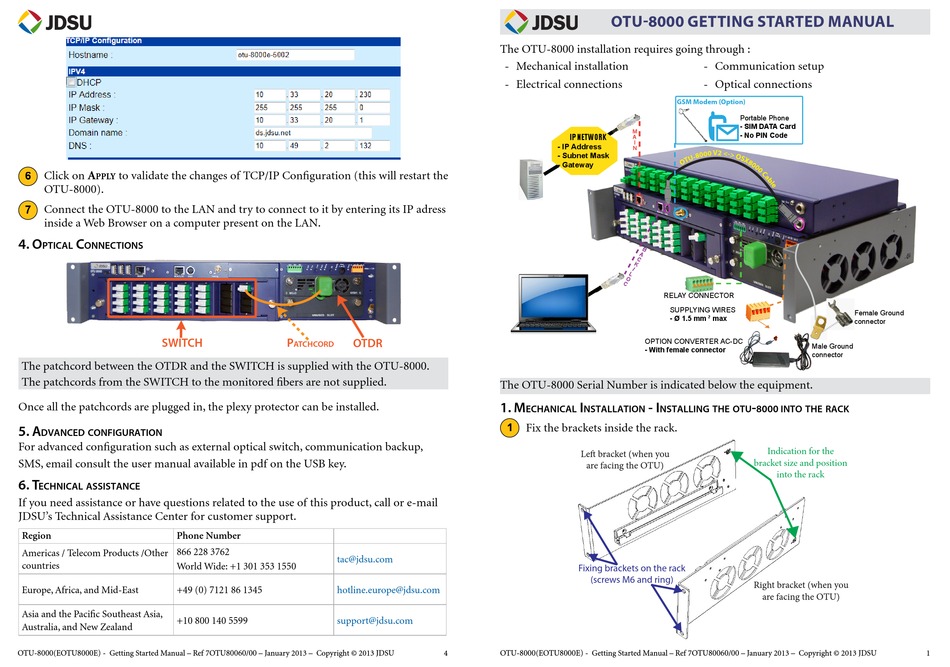

Viavi OTU-8000 Getting Started Manual

6
Click on A
to validate the changes of TCP/IP Confi guration (this will restart the
PPLY
OTU-8000).
7
Connect the OTU-8000 to the LAN and try to connect to it by entering its IP adress
inside a Web Browser on a computer present on the LAN.
4. O C
PTICAL ONNECTIONS
SWITCH
The patchcord between the OTDR and the SWITCH is supplied with the OTU-8000.
The patchcords from the SWITCH to the monitored fi bers are not supplied.
Once all the patchcords are plugged in, the plexy protector can be installed.
5. A
DVANCED CONFIGURATION
For advanced confi guration such as external optical switch, communication backup,
SMS, email consult the user manual available in pdf on the USB key.
6. T
ECHNICAL ASSISTANCE
If you need assistance or have questions related to the use of this product, call or e-mail
JDSU's Technical Assistance Center for customer support.
Region Phone Number
866 228 3762
Americas / Telecom Products /Other
countries
World Wide: +1 301 353 1550
Europe, Africa, and Mid-East +49 (0) 7121 86 1345
Asia and the Pacifi c Southeast Asia,
+10 800 140 5599
Australia, and New Zealand
OTU- 8000 (EOTU 8000 E ) - Getting Started Manual – Ref 7OTU 80060 / 00 – January 2013 – Copyright © 2013 JDSU
P OTDR
ATCHCORD
tac@jdsu.com
hotline.europe@jdsu.com
support@jdsu.com
4
OTU-8000 GETTING STARTED MANUAL
The OTU-8000 installation requires going through :
- Mechanical installation
- Electrical connections
GSM Modem (Option)
IP NETWORK
- IP Address
- Subnet Mask
- Gateway
RELAY CONNECTOR
SUPPLYING WIRES
- Ø 1.5 mm
OPTION CONVERTER AC-DC
- With female connector
The OTU-8000 Serial Number is indicated below the equipment.
1. M I - I
ECHANICAL NSTALLATION NSTALLING THE OTU
1
Fix the brackets inside the rack.
Left bracket (when you
are facing the OTU)
Fixing brackets on the rack
(screws M6 and ring)
OTU- 8000 (EOTU 8000 E ) - Getting Started Manual – Ref 7OTU 80060 / 00 – January 2013 – Copyright © 2013 JDSU
- Communication setup
- Optical connections
Portable Phone
- SIM DATA Card
- No PIN Code
Female Ground
max
2
connector
Male Ground
connector
-
8000 INTO THE RACK
Indication for the
bracket size and position
into the rack
Right bracket (when you
are facing the OTU)
1
