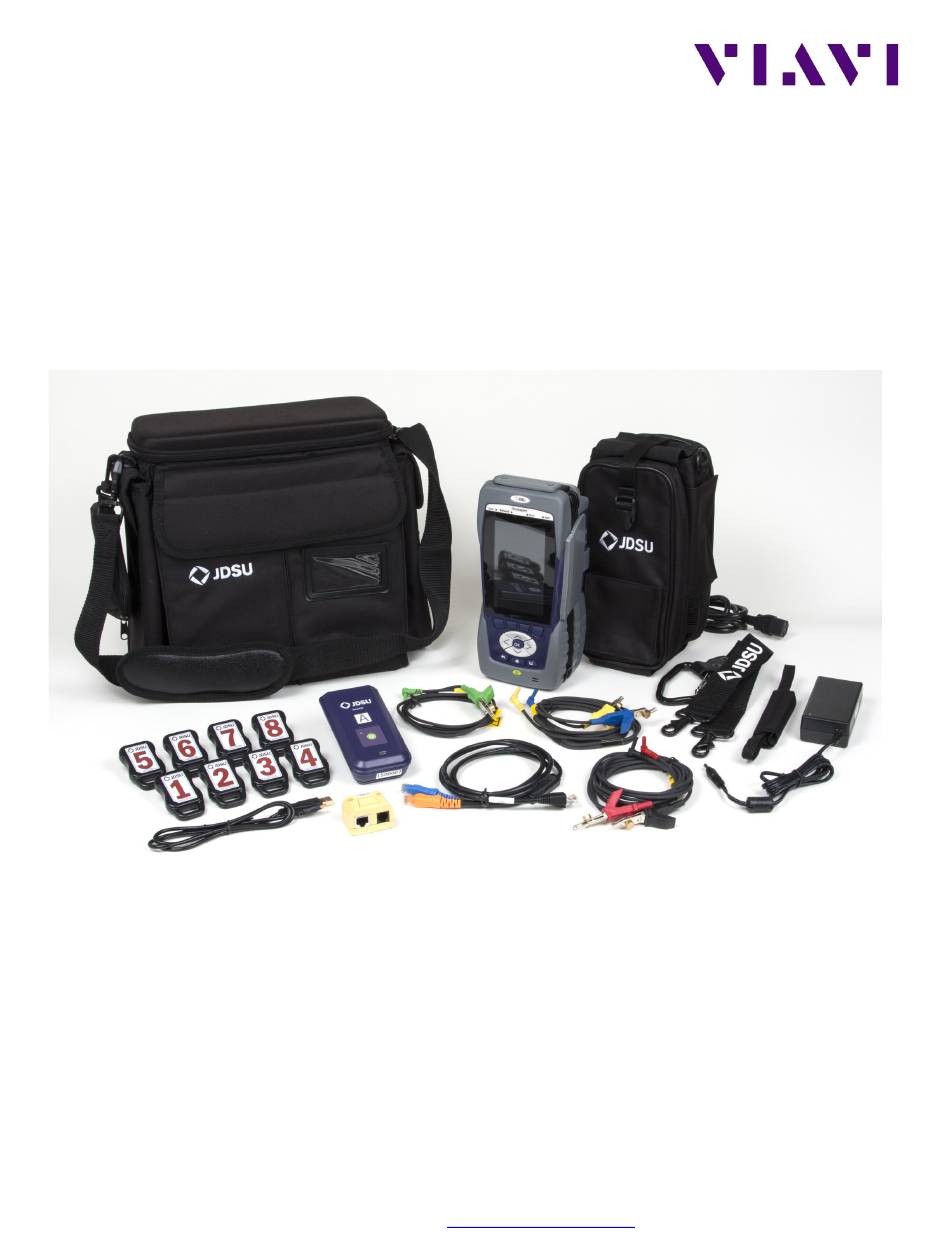

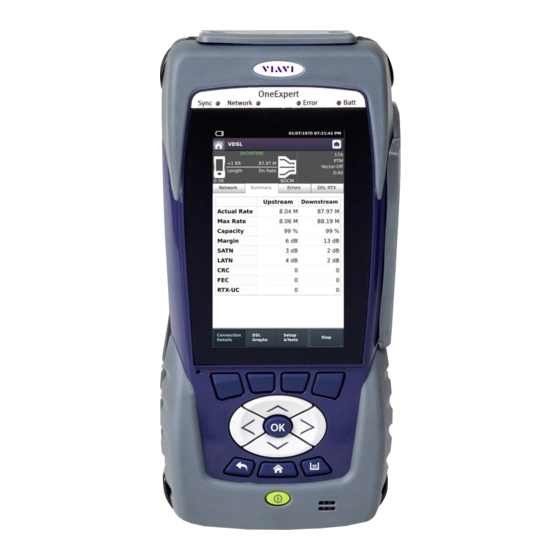

  • Page 1 VIAVI ONX 580 tac@viavisolutions.com June-2015 Technical Assistance: 1-844-GO-VIAVI;...

  • Page 2: Table Of Contents

    6.2 Date and Time ..........................20 6.3 Remote Operation .......................... 21 6.4 Blue Tooth ............................21 6.5 International Settings ........................22 6.6 User Information ..........................22 7.2 Opens Compensation ........................25 7.3 Resistance Compensation ......................25 tac@viavisolutions.com June-2015 Technical Assistance: 1-844-GO-VIAVI;...

  • Page 3: Outside Plant Testing

    1. Connect Tip and Ring test leads from the test set to the desired pair. Connect Green lead to Ground. Or connect the RJ-11 to the POTS connector on the side panel. Under Copper select POTS test application Return to table of contents tac@viavisolutions.com June-2015 Technical Assistance: 1-844-GO-VIAVI;...
  • Page 4 Some jobs are issued with no dial tone associated on the order; you will not be able to perform an Automatic Num- ber Identification because no telephone number has been assigned. Return to table of contents tac@viavisolutions.com June-2015 Technical Assistance: 1-844-GO-VIAVI;...

  • Page 5: Xdsl Rate Test

    1. Connect Tip, and Ring test leads from the test set to the desired pair. Connect Green lead to Ground. 2. Under DSL select the Default Single test applica- tion. Return to table of contents tac@viavisolutions.com June-2015 Technical Assistance: 1-844-GO-VIAVI;...
  • Page 6 CRC: Number of CRC errors accumulated sometimes referred to as code violations. FEC: Number of Far End Correctable errors errors that are correct- RTX-UC: Retransmissions that are uncorrected. Press System Tray, and then press Save Report. Return to table of contents tac@viavisolutions.com June-2015 Technical Assistance: 1-844-GO-VIAVI;...

  • Page 7: Bonded Pair Test

    1. Connect Tip and Ring to Pair 1 and Tip1 and Ring1 to Pair 2 of the desired pairs. Connect Green lead to Ground. 2. Under DSL select Default Bonded. Return to table of contents tac@viavisolutions.com June-2015 Technical Assistance: 1-844-GO-VIAVI;...
  • Page 8 (PSD Controlled). CRC: Number of CRC errors accumulated. FEC: Number of Far End Correctable errors. RTX-UC: Retransmissions that are uncorrected. 5. Press System Tray, and then press Save Report. Return to table of contents tac@viavisolutions.com June-2015 Technical Assistance: 1-844-GO-VIAVI;...
  • Page 9 • tips can be simultane SNR and data are shown on the and in text (text read out is on the cursor below. Return to table of contents tac@viavisolutions.com June-2015 Technical Assistance: 1-844-GO-VIAVI;...

  • Page 10: Copper Testing

    Procedure 1. Connect a Tip Ring and Ground of the pair under test to the Tip, Ring and Ground cable of the test set. 2. Under AutoTests select OneCheck Copper. Return to table of contents tac@viavisolutions.com June-2015 Technical Assistance: 1-844-GO-VIAVI;...
  • Page 11 Prem. If problem is on drop trouble trou- bleshoot, if on the F2 get a helper ticket. Load Coil Detect the presence of Load coils on the pair Remove load coil Return to table of contents tac@viavisolutions.com June-2015 Technical Assistance: 1-844-GO-VIAVI;...

  • Page 12: Additional Copper Tests

    Press AC Volts or DC Volts to Cycle through the tests. If Required Select Option to change the Termina- tion between 100K and 1 Meg ohm, default is 100K. Return to table of contents tac@viavisolutions.com June-2015 Technical Assistance: 1-844-GO-VIAVI;...

  • Page 13: Resistance

    Note: Leakage indicator shows in the Resistance box. If Required select Options then select Distance to Short to convert a resistance measurement to a dis- tance in feet. Return to table of contents tac@viavisolutions.com June-2015 Technical Assistance: 1-844-GO-VIAVI;...

  • Page 14: Opens

    Select Options and ensure correct cable type is selected. Tip/Ground Ring/Ground measurements. Results can be viewed in Capacitance only. The Opens measurement will count standard Bell ringers. (older phone types). Return to table of contents tac@viavisolutions.com June-2015 Technical Assistance: 1-844-GO-VIAVI;...

  • Page 15: Current

    Tip, Ring, and Ground pairs, 5. Press Continuous to return individual pair tests. 6. If required select AC Current to measure the AC Cur- rent on a pair. Return to table of contents tac@viavisolutions.com June-2015 Technical Assistance: 1-844-GO-VIAVI;...

  • Page 16: Longitudinal Balance

    2. Under Copper, select Longitudinal Balance. 3. Press Stop to halt the test then Start to begin it. Press Ground Lead Check to ensure there is an ac- ceptable ground reference. Return to table of contents tac@viavisolutions.com June-2015 Technical Assistance: 1-844-GO-VIAVI;...

  • Page 17: Load Coil Counter

    Under Copper, select Load Coil. 3. View Results, there should never be Load coils on pairs that are delivering Digital Services such as VDSL2. Some DSLAMS may falsely appear as multiple load coils Return to table of contents tac@viavisolutions.com June-2015 Technical Assistance: 1-844-GO-VIAVI;...

  • Page 18: System Utilities

    Select Time Format to switch between 12 and 24 hour. Select Time Zone for desired zone. 7. Select DST to choose whether Daylight Savings Time is used. 8. Select OK to accept. Return to table of contents tac@viavisolutions.com June-2015 Technical Assistance: 1-844-GO-VIAVI;...

  • Page 19: Remote Operation

    For other devices press Scan for device, follow pair- ing procedure Return to table of contents tac@viavisolutions.com June-2015 Technical Assistance: 1-844-GO-VIAVI;...

  • Page 20: International Settings

    4. Select Measurement for Imperial or Metric. 5. Select Temperature for Fahrenheit or Celsius. 6. Select Time Zone to set proper UTC. 7. Select Cable Terminology for Tip/Ring/Ground or A/B/Earth. Select OK to accept it. Return to table of contents tac@viavisolutions.com June-2015 Technical Assistance: 1-844-GO-VIAVI;...

  • Page 21: User Information

    11. Select Work Address to set proper address. Select Office Phone Number to set proper phone number. 13. Select Mobile Phone Number to set proper phone number. Select OK to accept it. Return to table of contents tac@viavisolutions.com June-2015 Technical Assistance: 1-844-GO-VIAVI;...

  • Page 22: Opens Compensation

    1. From the Copper test screen, use the swipe down mo- tion or press the System Tray button. Select Resistance Compensation. Short all Test Leads. Press Compensate. Press Return to return to Copper test. Return to table of contents tac@viavisolutions.com June-2015 Technical Assistance: 1-844-GO-VIAVI;...
