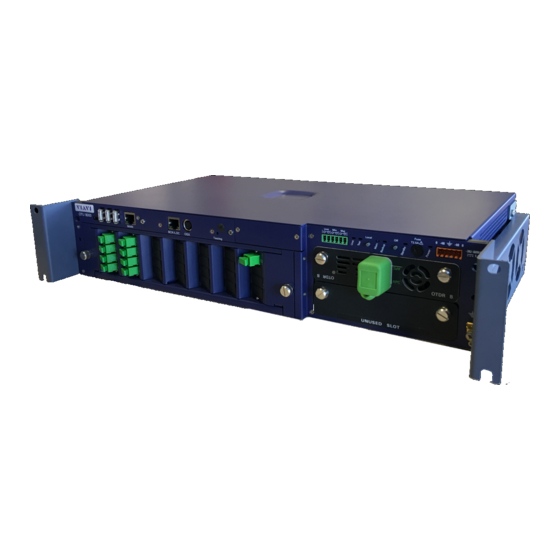

Viavi OTU-8000 Getting Started Manual

6

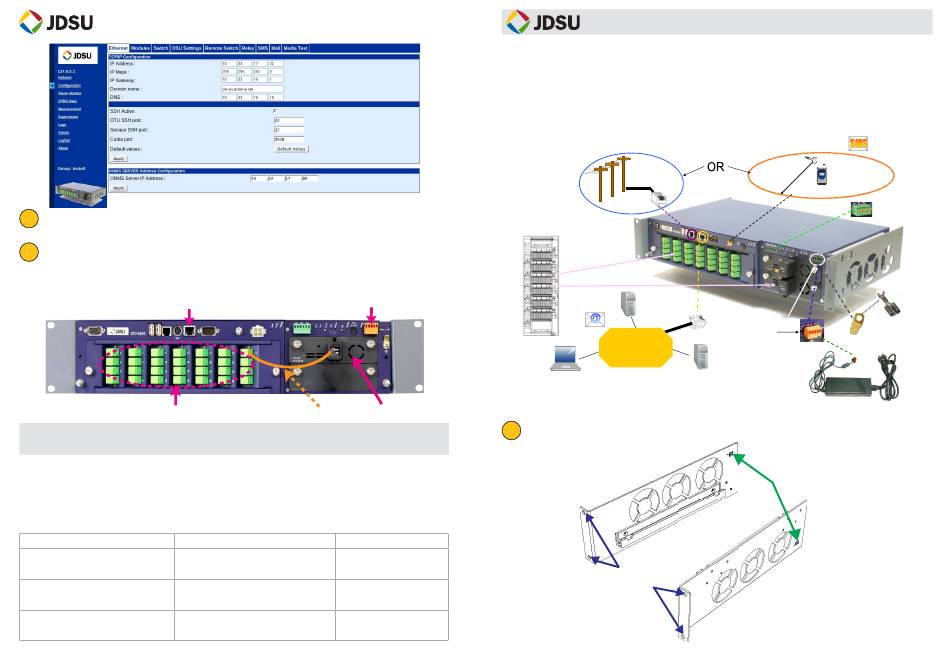

Click on A to validate the changes of TCP/IP Confi guration (this will restart the
PPLY
OTU-8000).
7
Connect the OTU-8000 to the LAN and try to connect to it by entering its IP adress
inside a Web Browser on a computer present on the LAN.
4. O C
PTICAL ONNECTIONS
Ethernet
Switch
The patchcord between the OTDR and the Switch is supplied with the OTU-8000.
The patchcords from the Switch to the ODF are not supplied.
Once all the patchcords are plugged in, the plexy protector can be installed.
5. T
ECHNICAL ASSISTANCE
If you need assistance or have questions related to the use of this product, call or e-mail
JDSU's Technical Assistance Center for customer support.
Region Phone Number
Americas / Telecom Products /Other 866 228 3762
countries
World Wide: +1 301 353 1550
+49 (0) 7121 86 1345 (Europe)
Europe, Africa, and Mid-East
+33 (0) 1 30 81 50 60 (JDSU France)
+852 2892 0990 (Hong Kong)
Asia and the Pacifi c Southeast Asia,
Australia, and New Zealand
+86 10 6833 7477 (Beijing-China)
OTU-8000 - Getting Started Manuel – Ref 7OTU80020/00 – January 2011 – Copyright 2011 JDSU
Dual -48V
P OTDR
ATCHCORD
tac@jdsu.com
hotline.europe@jdsu.com
support.france@jdsu.com
4
OTU-8000 GETTING STARTED MANUAL
The OTU-8000 installation requires going through :
- Mechanical installation
- Electrical connection
- Communication setup
- Optical connections
Option PSTN Modem
RJ11
ODF :
- Patchcords length
E-mail Server:
- SMTP Address
RJ 45
I P N E T W O R K
- IP Address
- Subnet Mask
- Gateway
ONMS SERVER
WORK STATION :
- Web Browser
1. M I - I
ECHANICAL NSTALLATION NSTALLING THE OTU
1
Fix the brackets inside the rack.
Left bracket (when you
are facing the OTU)
Fixing brackets on the rack
(screws M6 and ring)
OTU-8000 - Getting Started Manuel – Ref 7OTU80020/00 – January 2011 – Copyright 2011 JDSU
Option GSM Modem
+
Portable Phone:
- SIM DATA Card
GSM Antenna
- No PIN code
Relay
Connector
Female Ground
SUPPLYING WIRES :
Connector
²
- Ø 1,5 mm max.
Male Ground
Connector
48V Female connector
OPTION CONVERTER AC – DC:
- With female connector
-
8000 INTO THE RACK
Indication for the
bracket size and position
into the rack
Right bracket (when you
are facing the OTU)
1
