ADDENDUM
TO INSTRUCTION MANUAL
Roughneck V920D Mounting Instructions
The information in this addendum supplements the information in the instruction manual XX258 for the
Roughneck® V920D Camera Dome series. It supplies mounting details, including the contents of the
accessory kit and how these accessories are used for installation.
There is an accessory kit included with the Roughneck V920D. The table below lists the contents.
Torx wrench (to remove tamperproof screws)
Pipe sealant tape (to seal pipe fitting to housing)
Screws, anchors and rubber washers (for some
appropriate installations)
Vent plug (for outdoor installations)
Terminal blocks, 3-pin (24 VAC power); 4-pin (alarm
output); 2-pin (RS-485; UTP option)
Cable access plug (black; for rear hole)
Cable access plug and tool (threaded; for side hole)
Grommet (for routing cable; rear hole)
Select a location for the installation of the V920D camera. Be sure the area around the selected location is
clear of obstacles (such as steel beams, headers, pipes, electrical wiring, etc.) which would interfere with the
mounting of the camera and that the location can support the weight of the unit [the V920D unit weighs 2.5 lb
(1.1 kg)]. Video and power cables must be routed to the installation location.
The V920D mounts directly to a ceiling or wall. The base has four mounting hole. As a mounting alternative,
the mounting holes align with a standard 4 x 4 electrical box for mounting; an adapter plate is available that
creates an aesthetically pleasing appearance (model V910/V600W-PLATE).

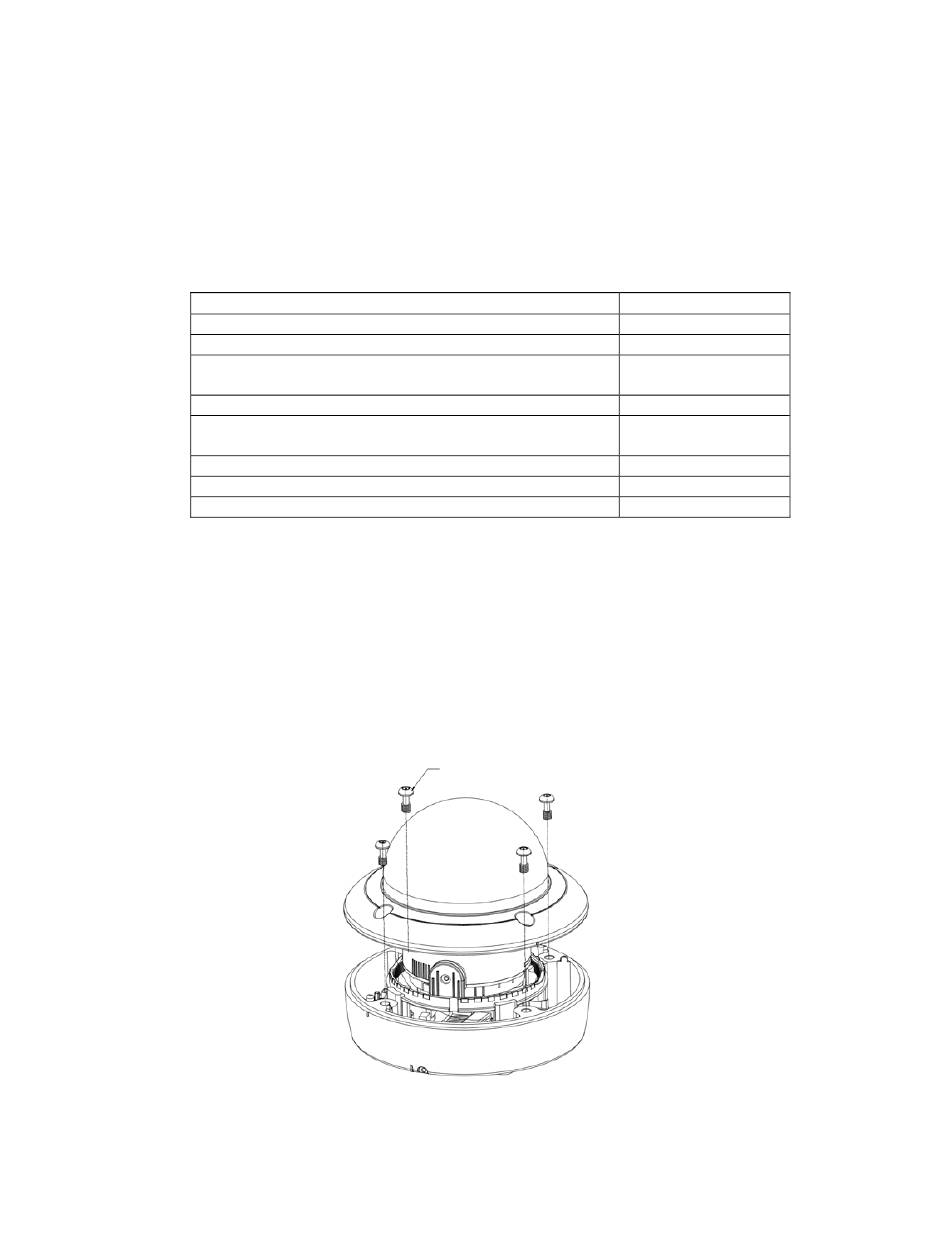

1. Loosen the four (4) Torx screws securing the cover; leave the screws intact. The cover is attached to the
base by the safety cord upon delivery. Allow the cover to hang.
Copyright © 2013 Vicon Industries Inc. All rights reserved.
Product specifications subject to change without notice.
Vicon, Roughneck and their logos are registered trademarks of Vicon Industries Inc.
Vicon part number 8009-5258-00-00 Rev 113
VICON INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAUGE, NEW YORK 11788
Description
Torx screws
M5x10 (4x)
TEL: 631-952-2288 TOLL FREE: 800-645-9116
24-Hour Tech Support: 800-34-VICON (800-348-4266)
UK: +44 (0) 1489 566300
WEB: www.vicon-security.com
ADD NO.
AA258-00-00
Quantity
1
1
4 of each
1
1, 1, 2
1
1 of each
1
REV.
113
