Vicon V920B Series Quick Manual

Hide thumbs Also See for V920B Series:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual

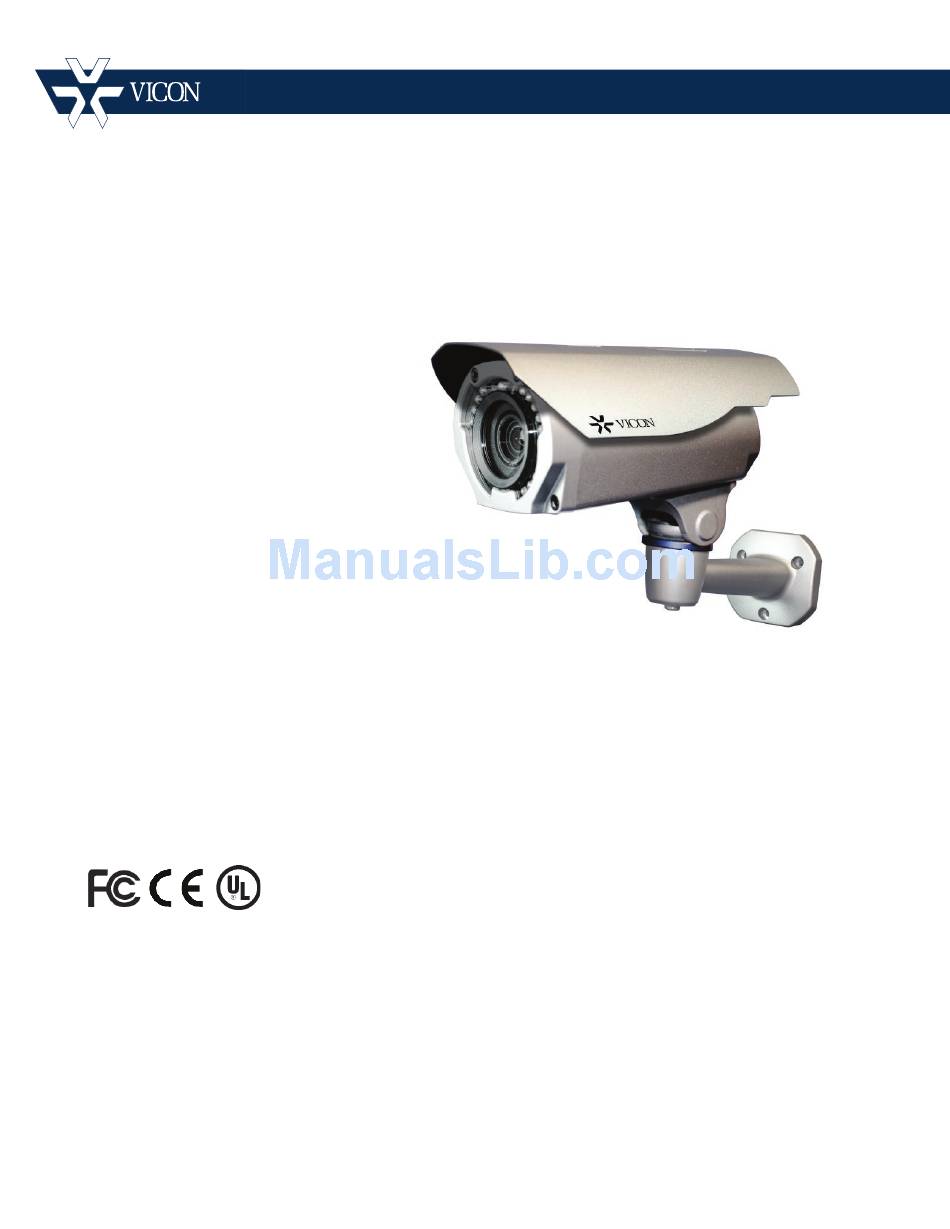

Quick Guide
XX271-20-00
V920B Series
Bullet Cameras
Vicon Industries Inc.
Tel: 631-952-2288 Fax: 631-951-2288 Toll Free: 800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300
Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the
operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed
to be used in life-critical situations and must not be used for this purpose.
www.vicon-security.com
Document Number: 8009-8271-20-00
Issued: 1114
Product specifications subject to change without notice.
Copyright © 2014 Vicon Industries Inc. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V920B Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vicon V920B Series

Summary of Contents for Vicon V920B Series

  • Page 1 24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300 Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed to be used in life-critical situations and must not be used for this purpose.
  • Page 2 V920B Series Quick Installation Guide...
  • Page 3 The information in this manual provides quick installation and setup procedures for the Roughneck® V920B Series of Bullet Cameras. These units should only be installed by a qualified technician using approved materials in conformance with federal, state, and local codes. Read these instructions thoroughly before beginning an installation.

  • Page 4: Camera Installation

    V920B Series Quick Installation Guide 2. Installation For the network camera to operate, it is necessary to connect a network cable for data transmission and power connection from customer-supplied power supply (if not using PoE). 2.1 Camera Installation  Camera Dimensions See the diagrams below for the exact dimensions of the network camera.

  • Page 5: Sunshield Installation

    V920B Series Quick Installation Guide Sunshield Installation  The unit is shipped without the sunshi eld installed. Use the bolt supplied to secur e the sunshiel d to the body of the camera. Base Installation  There are two ways of installing the camera.
  • Page 6 V920B Series Quick Installation Guide 2) Installation 2 (Using the cable knockout tab in mount base) PTS1, M5x20 Mounting Screws (3x) Mounting Base Plastic Anchors (3x) Template S heet Remove the cable knockout tab for Wall cable entry A. Drill the mounting hole locations, using the template sheet (or the bottom of the mount base) as a guide.

  • Page 7: Cable Connections

    V920B Series Quick Installation Guide 2.2 Connections  Cable Connections Wire Color Description Red: 12 VDC Main Power; 2 pin terminal, 12 VDC 2A (24W) with heater, White: GND or 12 VDC 320mA (3.8W) without heater Ethernet; RJ-45 port compatible with 10/100Mbps having PoE Black Modular jack.
  • Page 8 V920B Series Quick Installation Guide • Connecting Service Monitor Port Service monitor port is used for easy OSD setup. To make changes from the OSD menu, use the optional OSD controller. ▶ ID & IP assignment To make changes in the OSD menu, the optional OSD controller (V920D-OSD) can be used to set Camera Title and IP Address.

  • Page 9: Network Connection And Ip Assignment

    V920B Series Quick Installation Guide 2.3 Network Connection and IP assignment The network camera is designed for use on an Ethernet network and requires an IP address for access. Most networks today have a DHCP server that automatically assigns IP addresses to connected devices.

  • Page 10: Operation

    V920B Series Quick Installation Guide 3. Operation The network camera can be used with Windows® operating system and browsers. The recommended browsers are Internet Explorer®, Safari®, Firefox®, Opera® and Google® Chrome® with Windows. Note: To view streaming video in Microsoft® Internet Explorer, set your browser to allow ActiveX controls.

  • Page 11: Access From The Internet

    V920B Series Quick Installation Guide 3.2. Access from the Internet Once connected, the network camera is accessible on your local network (LAN). To access the network camera from the Internet you must configure your broadband router to allow incoming data traffic to the network camera.

  • Page 12: General Controls

    V920B Series Quick Installation Guide 1) General controls Live View Page Search & Playback Page Setup Page Help Page The video drop-down list allows the selection of a customized or pre- programmed video stream on the Live View page. Stream profiles are configured under Setup >...

  • Page 13: Video Streams

    V920B Series Quick Installation Guide 3) Video Streams The network camera provides several image and video stream formats. Your requirements and the properties of your network will determine the type you use. The Live View page of the network camera provides access to H.264, MPEG-4 and Motion JPEG video streams and to the list of available video streams.

  • Page 14: Resetting To The Factory Default Settings

    V920B Series Quick Installation Guide 3.5 Resetting to the factory default settings To reset the network camera to the original factory settings, go to the Setup>System> Maintenance web page (described in “3.5.5 System > Maintenance” of User’s Manual) or use the Reset button on network camera, as described below: •...
  • Page 15 Vicon Industries Inc. Internet Address: www.vicon-security.com V920B 50303846A...
