Maximum torch angle

The maximum torch angle with extreme bevel consumables is 66.5 degrees at a clearance of 2 mm
(0.080 in). Using a maximum torch angle during bevel cutting increases the effective thickness of
the workpiece being cut. For example, bevel cutting a 12 mm (.50 inch) workpiece at a 60-degree
angle is like cutting a 25 mm (1 inch) workpiece at a 90-degree angle. Refer to
Hypertherm recommends using the default torch-clearance settings to start cutting. Adjust
clearance settings only when necessary.

Effective thickness

Effective thickness

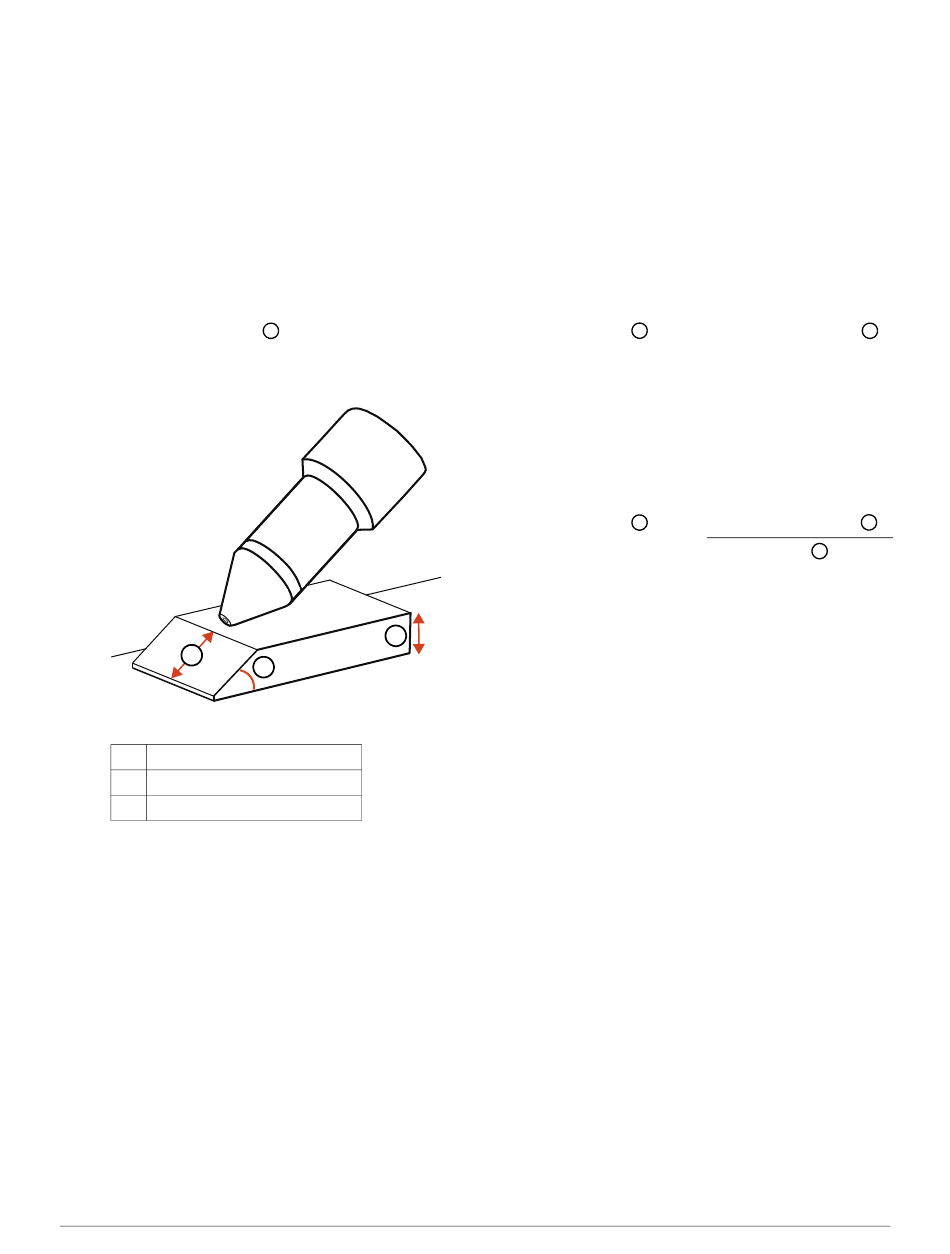

When cutting at an angle, the thickness that the torch has to cut is increased.
1
a
1 Effective thickness
2 Angle of the torch – sin(a)
3 Workpiece thickness
MAXPRO200 Instruction Manual
is directly related to the workpiece thicness
1
3
2
811270
and the angle of the torch
3
=
1
Effective thickness
Cut charts
Effective thickness.
.
2
3
Workpiece thickness
2
sin(a)
