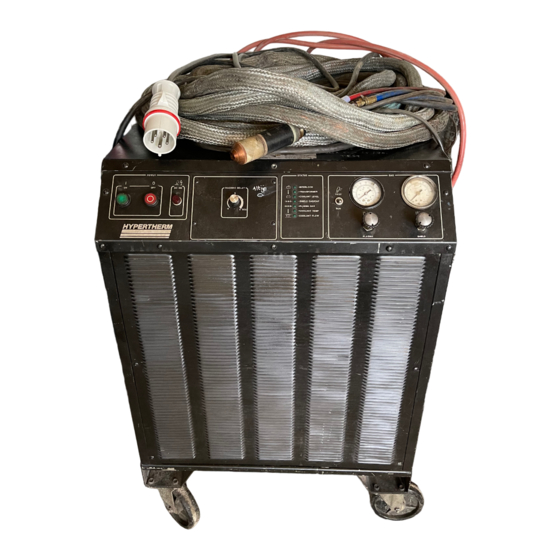

MAX200
Plasma Arc Cutting System
Product Configuration Manual
PM-345
(P/N 803450)
Revision 0 December, 1998
HYPERTHERM, Inc.
P.O. Box 5010
Hanover, New Hampshire 03755-5010
Tel.: (603) 643-3441
Fax: (603) 643-5352
http://www.hypertherm.com
email:info@hypertherm.com
© Copyright 1998 Hypertherm, Inc.
All Rights Reserved
HYPERTHERM, HT and LongLife are trademarks of Hypertherm, Inc. and may be
registered in the United States and/or other countries
