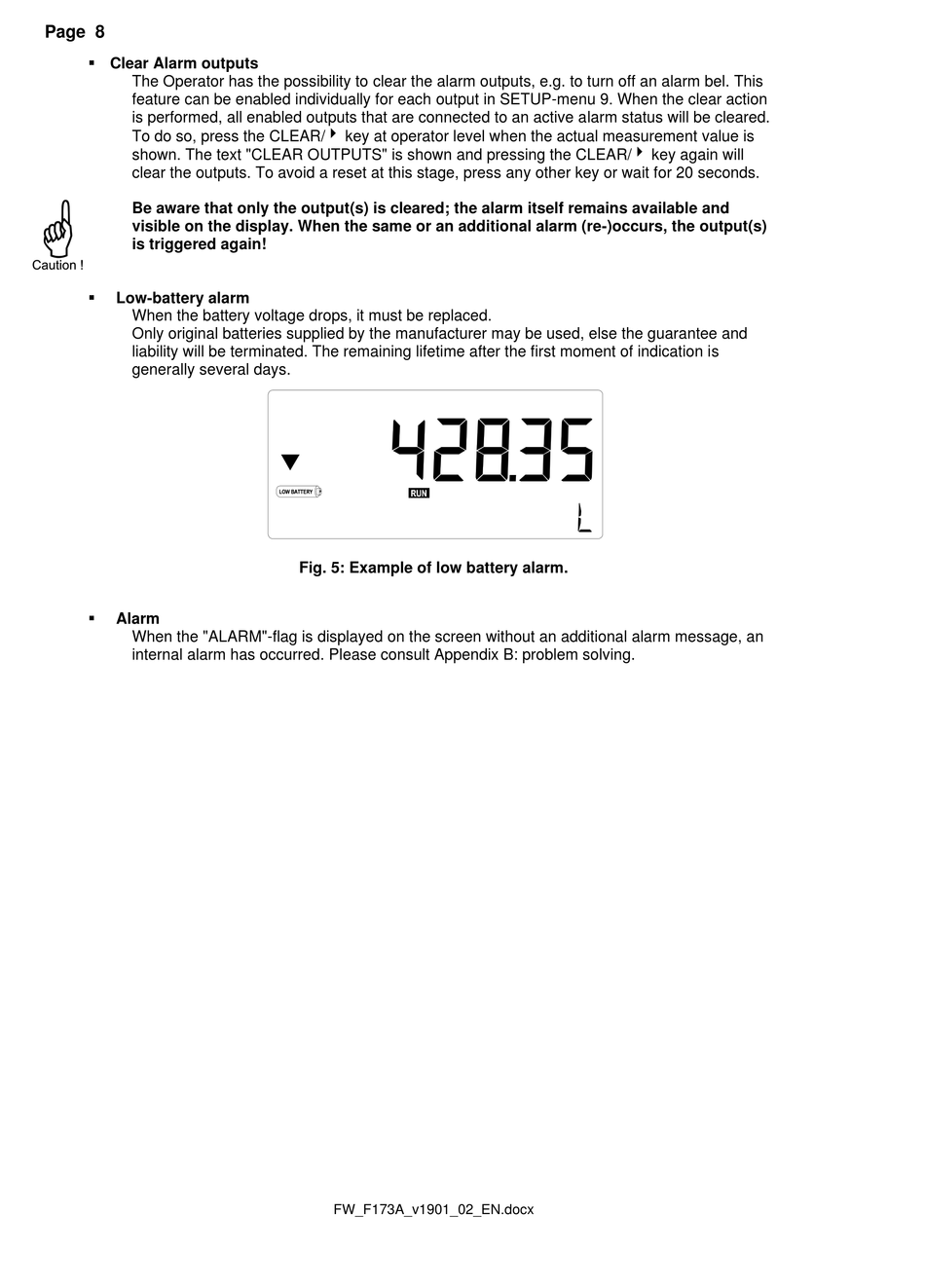

▪ Clear Alarm outputs

The Operator has the possibility to clear the alarm outputs, e.g. to turn off an alarm bel. This

feature can be enabled individually for each output in SETUP-menu 9. When the clear action

is performed, all enabled outputs that are connected to an active alarm status will be cleared.

To do so, press the CLEAR/ key at operator level when the actual measurement value is

shown. The text "CLEAR OUTPUTS" is shown and pressing the CLEAR/ key again will

clear the outputs. To avoid a reset at this stage, press any other key or wait for 20 seconds.

Be aware that only the output(s) is cleared; the alarm itself remains available and

visible on the display. When the same or an additional alarm (re-)occurs, the output(s)

is triggered again!

▪

Low-battery alarm

When the battery voltage drops, it must be replaced.

Only original batteries supplied by the manufacturer may be used, else the guarantee and

liability will be terminated. The remaining lifetime after the first moment of indication is

generally several days.

▪

Alarm

When the "ALARM"-flag is displayed on the screen without an additional alarm message, an

internal alarm has occurred. Please consult Appendix B: problem solving.

Fig. 5: Example of low battery alarm.
