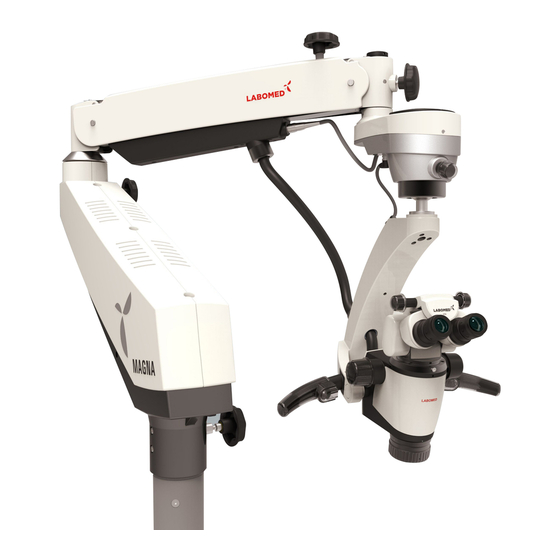

Labomed Magna User Manual
  1. Manuals
  2. Brands
  3. Labomed Manuals
  4. Microscope
  5. Magna
  6. User manual

Labomed Magna User Manual

Operating microscope dentistry
Hide thumbs Also See for Magna:
Table of Contents

Advertisement

Quick Links

MAGNA
User Manual
Operating Microscope Dentistry
To ensure proper use of this instrument as well as to avoid injury while operating instrument, understanding this manual
completely before use is highly recommended.
6129000-796
Magna
Issue 1.3
Printed on April. 2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Magna and is the answer not in the manual?

Questions and answers

Related Manuals for Labomed Magna

Summary of Contents for Labomed Magna

  • Page 1 MAGNA User Manual Operating Microscope Dentistry To ensure proper use of this instrument as well as to avoid injury while operating instrument, understanding this manual completely before use is highly recommended. 6129000-796 Magna Issue 1.3 Printed on April. 2018...
  • Page 2 The information contained in this document was accurate at the time of publication. Specifications are subject to change without prior notice. LABOMED reserves the right to make changes to the product described in this user manual without notice and without incorporating those changes in any products already sold.

  • Page 3: Table Of Contents

    MAGNA List of Contents Introduction and Intended Use Product Description (Magna Floor Stand) Product Description (Magna with Ceiling Mount) 3. (A) 4 - 11 Installation References Product Description (Magna with Wall Mount) 4. (A) Installation References 13 – 16 Construction Requirements (Ceiling / Wall Mount) 17 –...

  • Page 4: Introduction And Intended Use

    7. When the microscope is not in use, the suspension arm can be folded over the main body for compact storage. Intended Use The Magna microscope is an AC powered device intended for use during diagnosis and surgery to provide a magnified view of the region of interest.

  • Page 5: Product Description (Magna Floor Stand)

    MAGNA 2. PRODUCT DESCRIPTION MAGNA FLOOR STAND (Product Code: 6129000) Caster wheel with Brakes Auto Balancing Arm Locking Knob Cross Base Top Suspension Arm Hydraulic Movement Lock Cross Base Bottom Suspension Arm Column Suspension Arm Spring Tension Adjustment Hand Rest...

  • Page 6: Product Description (Magna With Ceiling Mount)

    MAGNA 3. PRODUCT DESCRIPTION Magna with Heavy Ceiling Mount & Long Arm (Product Code: 6129004) Zoom Magnification Knob Column Cover Mount (to be used in false ceiling only) Common Main Objective with Fine Focusing Swivel Arm Suspension Arm Suspension Arm Hydraulic Movement Lock...

  • Page 7: A) Installation References

    MAGNA 3. (A) INSTALLATION REFERENCES Magna with Heavy Ceiling Mount & Long Arm (Product Code: 6129004) CEILING MOUNT SYSTEM FOR 12 FEET CEILING HEIGHT Issue 1.3 6129000-796 Magna Printed on April. 2018...
  • Page 8 MAGNA INSTALLATION REFERENCES Magna with Heavy Ceiling Mount & Long Arm (Product Code: 6129004) CEILING MOUNT SYSTEM FOR 11 FEET CEILING HEIGHT Issue 1.3 6129000-796 Magna Printed on April. 2018...
  • Page 9 MAGNA INSTALLATION REFERENCES Magna with Heavy Ceiling Mount & Long Arm (Product Code: 6129004) CEILING MOUNT SYSTEM FOR 10 FEET CEILING HEIGHT Issue 1.3 6129000-796 Magna Printed on April. 2018...
  • Page 10 MAGNA INSTALLATION REFERENCES Magna with Heavy Ceiling Mount & Long Arm (Product Code: 6129004) Marking References 67.5 67.5 67.5 67.5 Issue 1.3 6129000-796 Magna Printed on April. 2018...
  • Page 11 MAGNA INSTALLATION REFERENCES Magna with Heavy Ceiling Mount & Long Arm (Product Code: 6129004) Issue 1.3 6129000-796 Magna Printed on April. 2018...
  • Page 12 MAGNA INSTALLATION REFERENCES Magna with Heavy Ceiling Mount & Long Arm (Product Code: 6129004) Issue 1.3 6129000-796 Magna Printed on April. 2018...
  • Page 13 MAGNA INSTALLATION REFERENCES Magna with Heavy Ceiling Mount & Long Arm (Product Code: 6129004) Raval Plug M10.75mm SS-854 (6 Nos) To be fixed in Concrete Ceiling Bolt M10.75mm SS-854 (6 Nos) Fixed in Raval Plug SS-666 M4x10 PH. Pan Head Screw (10 Nos) Issue 1.3...
  • Page 14 MAGNA INSTALLATION REFERENCES Magna with Heavy Ceiling Mount & Long Arm (Product Code: 6129004) Issue 1.3 6129000-796 Magna Printed on April. 2018...

  • Page 15: Product Description (Magna With Wall Mount)

    MAGNA 4. PRODUCT DESCRIPTION Magna Wall Mount with Short Arm (Product Code: 6129002) Wall Mount Bracket Common Main Objective with Fine Focusing Mount Shaft Swivel Arm Suspension Arm Suspension Arm Hydraulic Movement Lock Knob Auto Balancing Arm Lock knob ABA (Auto balancing Arm) Magnetic Clutch Illumination Control Knob Ergo Head 0 - 210°...

  • Page 16: A) Installation References

    MAGNA INSTALLATION REFERENCES Magna Wall Mount with Short Arm (Product Code: 6129002/6129003) 6129000-796 Magna Issue 1.3 Printed on April. 2018...
  • Page 17 MAGNA INSTALLATION REFERENCES Magna Wall Mount with Short Arm (Product Code: 6129002/6129003) Rotation of Horizontal Arm about the Cloumn on the Wall Mount is limited with the wall acting as a stop. Rotation of Suspension Arm about the Horizontal Arm on both the Ceiling Mount and the Floor stand is 360°.
  • Page 18 MAGNA INSTALLATION REFERENCES Magna Wall Mount with Short Arm (Product Code: 6129002/6129003) 6129000-796 Magna Issue 1.3 Printed on April. 2018...
  • Page 19 MAGNA INSTALLATION REFERENCES Magna Wall Mount with Short Arm (Product Code: 6129002) Magna Wall Mount with Long Arm (Product Code: 6129003) 6129000-796 Magna Issue 1.3 Printed on April. 2018...

  • Page 20: Construction Requirements (Ceiling/Wall Mount)

    MAGNA 5. CONSTRUCTION REQUIREMENTS (CEILING/WALL MOUNT) 1. The 6129001 ceiling mount must be installed on the LABOMED ceiling column plate. 2. The construction specialist must confirm in writing that the applicable regional and local codes & regulations have been complied with and that the points listed below have been observed. The costumer must keep this confirmation with his records on the ceiling mount.
  • Page 21 MAGNA CONSTRUCTION REQUIREMENTS (CEILING/WALL MOUNT) NOTE: The series 6129001 suspension system including the components mentioned here comply safety requirements with CE, MDD 92/42 EEC and IEC 60601-1-3rd. Such activities as the installation of the ceiling mount and the installation of conduits and electrical lines are the customer’s responsibilities.

  • Page 22: Warnings And Cautions

    MAGNA 6. WARNINGS AND CAUTIONS LABOMED is not responsible for the safety and reliability of this instrument when: - Assembly, disassembly, repair, or modification is made by unauthorized dealers or persons. - The instrument is not used in accordance with this user manual.
  • Page 23 MAGNA WARNINGS AND CAUTIONS WARNING: THIS INSTRUMENT IS NOT SUITABLE FOR USE IN THE PRESENCE OF FLAMMABLE ANESTHETIC MIXTURES SUCH AS OXYGEN OR NITROUS OXIDE. WARNING: LED RADIATION - DO NOT STARE DIRECTLY INTO THE BEAM WHEN THE MICROSCOPE IS IN THE ON POSITION.

  • Page 24: Explanation Of Symbols

    MAGNA 7. EXPLANATION OF SYMBOLS Caution: Observe all warning labels and notes! If any label in missing on your instrument or has become illegible, please contact the manufacturer to obtain new labels. Brightness Control: After the illumination has been switched on, the user can continously adjust brightness by turning the knob appropriately.

  • Page 25: Standards And Directives

    MAGNA 8. STANDARDS AND DIRECTIVES The instrument described in this user manual has been designed in compliance with the following standards: ISO 8600-3 First edition 1997-07-01 AMENDMENT 1 Optics and Optical instruments-Medical endoscopes and endoscopic accessories Part 3: Determination of field of view and direction of view of endoscopes with optics.

  • Page 26: Unpacking

    MAGNA 9. UNPACKING The appliance is delivered in sub-assembled modular groups along with one Installation Kit and one user manual. Please check for the following when unpacking the device: Mobile Cross base in two parts with brakes on caster wheels or Ceiling Mount or Wall Mount as ordered.

  • Page 27: Installation Of Cross Base (Mobile Stand)

    MAGNA 10. INSTALLATION OF CROSS BASE (MOBILE STAND) 1. Open the box containing Cross Base Bottom as shown in Fig. 1. Fig. 1 2. Take out the Cross bottom base and put it on floor as shown in Fig. 2.

  • Page 28: Installation Of Microscope (Mobile Stand)

    MAGNA 10.1 INSTALLATION OF MICROSCOPE (MOBILE STAND) 1. Open the microscope box. Take out (column) from the box. Mount the column onto a shaft in base by aligning the corresponding holes in Column (A) and shaft (B). Secure it with (3) M6x16mm Allen Screws (C) using 4mm Allen Key as shown in Fig.
  • Page 29 MAGNA INSTALLATION OF MICROSCOPE (MOBILE STAND) 4. Install the standard accessories onto the carrier assembly as mentioned below: a. Loosen the M4 grub screw (3) by 2mm allen key and Fix Double iris diaphragm (J) on magnichanger by retightening the M4 grub screw.

  • Page 30: Electrical Connections

    MAGNA 10.2 ELECTRICAL CONNECTIONS Connect the power cable to the AC inlet socket (1) located at the back of the swivel arm as shown in Fig. 11. Switch on the power using the ON/OFF switch (2). NOTE: The power supply is designed with universal input 100V-240V AC, 50/60Hz.
  • Page 31 MAGNA ELECTRICAL CONNECTIONS Auto Balancing Arm Connections a. Connect the 7 pin connector (D) at the 7 Pin female inlet (E) located in Suspension Arm for power in Auto Balancing Arm (ABA) as shown in Fig. 14. b. Take the power wire having 2 pin connectors on...

  • Page 32: Wiring Coding Diagram

    MAGNA 10.3 WIRING CODING DIAGRAM 6129000-796 Magna Issue 1.3 Printed on April. 2018...

  • Page 33: Control Elements

    MAGNA 10.4 CONTROL ELEMENTS ON / OFF Switch The ON/OFF switch (A) is located at the back of the swivel arm. In the ON position, a green LED (B) glows, and the cooling fan starts running as shown in Fig. 14.
  • Page 34 MAGNA CONTROL ELEMENTS Locking Knobs a. Swivel Arm Locking Knob This knob shown as (G) locks the movement of the Swivel arm at the desired position by turning it clockwise as shown in Fig. 17. b. Suspension Arm Locking Knob...

  • Page 35: Using The Microscope

    MAGNA 11. USING THE MICROSCOPE WARNING: INSTRUMENT IS UNSAFE FOR MRI ENVIRONMENTS. Setting up the microscope: a. For stability of microscope, lock all four brakes on the base caster wheels. b. Optimize the Auto Balancing Arm (ABA) position by using clutch motions shown as (A) and (A.1) to get the proper field of vision as shown in Fig.
  • Page 36 MAGNA USING THE MICROSCOPE Main Microscope Configuration: Magna comes with standard accessories mentioned below: a. NuVar variable objective, focal length 300 – 400mm (standard). b. 0° - 210° tiltable ergo binocular tube. c. DBSi (Double beam splitter inclined). d. Double iris diaphragm.

  • Page 37: Use Of Accessories

    MAGNA 12. USE OF ACCESSORIES Model: Magna Fig. 22 Magna Issue 1.3 6129000-796 Printed on April. 2018...
  • Page 38 MAGNA USE OF ACCESSORIES Rotoplate: Rotoplate eliminates neck craning, making it comfortable to view hard to see region of mouth from 9 and 3’O clock seated position. DBSi (Double beam splitter inclined): A beam splitter divides the light into two beams, it can be 50:50 or 80:20.

  • Page 39: Thermal Cut-Off

    MAGNA 13. THERMAL CUT‐OFF The instrument is designed with safety provisions. Fans in the electrical box provide free-and forced-air circulation to cool the electronic components. The instrument also includes a built-in-safety mechanism called ‘’auto thermal cut-off’’. This mechanism is activated when the LED temperature rises above 70°C. This time power to the LED will be cut off.

  • Page 40: Moving The Instrument

    MAGNA 15. MOVING THE INSTRUMENT Fold the system as shown before moving Fig. 24 Moving the Stand Turn off the unit at the power switch. Disconnect the power cable. Remove the video cable from the video modules (e.g., video monitor, USB monitor) and the camera control unit.

  • Page 41: Care And Maintenance

    MAGNA 16. CARE AND MAINTENANCE This instrument is a high grade technological product and does not require any special periodical maintenance if handled carefully. Still to ensure optimum performance and safe working order of the instrument, its safe functioning must be checked periodically as per table below. We recommend having this check performance by our service representative as part of regular maintenance work.
  • Page 42 Instructions Workplace • Remove surface contamination with a paper towel. Autoclaving The rubber caps, sleeves and grips supplied by labomed are recommend for the following program for autoclaving: • 134° C Temperature: •...

  • Page 43: Schedule Of Autoclavable Caps

    MAGNA 17. SCHEDULE OF AUTOCLAVABLE CAPS Autoclavable Caps Lock Knob Covers for Arm Movement: Knob cover - Part no. 6168000 - 216 Knob cover - Part no. 6168000 – 216 Knob cover - Part no. 6168000 – 216 Knob cover - Part no. 6168000 - 216 Knob for Illumination Control: Silicon Cover –...

  • Page 44: Ambient Requirement

    MAGNA 18. AMBIENT REQUIREMENT For Operation Temperature + 10°C…..+40°C Rel. Humidity 30%..90% (without condensation) 700hPa…….1,060hPa Air Pressure For Transportation and Storage Temperature -10°C…..+40°C Rel. Humidity 30%..90% (without condensation) 700hPa…….1,060hPa Air Pressure The unit meets the essential requirements stipulated in Annex I of the 93/42/EEC directive governing medical devices.

  • Page 45: Technical Specifications

    MAGNA 20. TECHNICAL SPECIFICATIONS Stand Robust, vibration-free stand on a cross base with four lockable caster wheels 0 - 210° tiltable head configured with Rotoplate, DBSi Binocular Tubes (Double Beam Splitter Inclined, Double Iris Diaphragm and DSLR Adapter IPD Adjustment 50 –...

  • Page 46: Troubleshooting Table

    MAGNA 21. TROUBLESHOOTING TABLE Problem Possible Cause Remedy No illumination Power cable not pluged in Plug in power cable Power switch in OFF position Press the power switch to ON position Defective instrument fuse Change the fuse Defective power cable...
  • Page 47 MAGNA TROUBLESHOOTING TABLE Problem Possible Cause Remedy Stand is unstable The brakes on the wheels are not Engage the brakes in use No image is visible in the Magnichanger is not indexed Rotate the Magnichanger to click field of view...

  • Page 48: Guidance Tables

    All Equipment and Systems Guidance and Manufacturer’s Decleration – Electromagnetic Emissions Magna is intended for use in the electromagnetic environment specified below. The customer or user of the Magna should ensure that it is used in such an environment. Emissions Test...
  • Page 49 All Equipment and Systems Guidance and Manufacturer’s Decleration – Electromagnetic Emissions Magna is intended for use in the electromagnetic environment specified below. The customer or user of the Magna should ensure that it is used in such an environment. Immunity Test...
  • Page 50 Equipment and Systems that are NOT Life-Supporting Guidance and manufacturer’s Decleration – Electromagnetic Immunity The Magna is intended for use in the Electromagnetic environment specified below. The customer or user of the Magna should unsure that it is used in such an environment.
  • Page 51 The Magna is intended for use in electromagnetic environments in which radiated RF disturbances are controlled. The customer or user of the Magna can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the Magna as recommended below, according to the maximum output power of the communications equipment.

  • Page 52: Dimensions And Weight

    MAGNA 23. DIMENSIONS AND WEIGHT Ceiling Mount Wall Mount Floor Stand Configurations Weight Magna with Wall Mount Wall Bracket 10 Kg Shaft 07 Kg Magna Arm Long/Short 28 Kg/22 Kg Magna Carrier : 10 Kg Magna with Ceiling Mount Ceiling Mount...

  • Page 53: Glossary

    MAGNA 24. GLOSSARY Ametropia Compensation Compensation of short-or-far-sightedness. This can be done for each eye using the two individual eyepieces (range: +5 to -5 diopters). Working Distance Distance from the common main objective (CMO) to the object or area of interest.

  • Page 54: Warranty

    LABOMED factory or authorized LABOMED Dealer. All claims under this warranty must be in writing and directed to the LABOMED factory or its authorized dealer for this device making the original sale and must be accompanied by a copy of the purchaser’s invoice.
  • Page 55 MAGNA WARRANTY (continued) CLAIMS FOR DAMAGES IN TRANSIT Our shipping responsibility ceases with the safe delivery in good condition to the transportation company. Claims for loss or damage in transit should be made promptly and directly to the transportation company.
  • Page 56 Revision History Rev. No. Date of Release DCR # Change Appd. By Removal of Protector Lens March 1, 2018 cover Assy. for Autoclavable list on Page No. 40 Addition of Protector Lens April 1, 2018 cover Assy. for Autoclavable list on Page No.
  • Page 57 F 510 445 1317 Fremont, CA 94538 sales@laboamerica.com U.S.A. LABOMED and Magna are registered trademarks of Labo America, Inc. With a policy of continuous development, Labo America, Inc. reserves the right to changedesign and specifications without prior notice. e 2015 Labo Ame,1e:a., Inc.
