Summary of Contents for Labomed Luxeo 2S
- Page 1 Luxeo Stereo / Zoom Stereo Microscopy User Manual Part No. 4140000-795 To ensure proper use of this instrument as well as to avoid injury while operating Issue 1.3 Instrument, understanding this manual completely before use is highly recommended. Printed on Jan.,2020...
-
Page 3: Table Of Contents
1. INTRODUCTION 2. SAFETY INFORMATION 3. LUXEO 2S 4. LUXEO 4Z 5. LUXEO 4Z TRINOCULAR 6. UNPACKING YOUR MICROSCOPE 7. STANDARD COMPONENTS- LUXEO 2S/4Z 8. SYSTEM DIAGRAM OF OPTIONAL ACCESSORIESS 9. INITIAL SETUP 12-14 10. SUMMARY OF BRIGHT FIELD OBSERVATION PROCEDURE 11. -
Page 4: Introduction
Luxeo INTRODUCTION The Luxeo is a stereoscopic zoom microscope reflecting a modern design as well as the latest in optical and mechanical advancements. Designed for professionals as well as students, this microscope offers many features and functions for a diverse set of applications. Extra clarity and contrast is provided through a Binocular body inclined at 45°. -
Page 5: Safety Information
Do not place microscope on a flexible surface, as this could result in blocking the air vents and cause Overheating. 4. Always use the power cord provided by LABOMED. If the proper power cord is not used, product safety performance cannot be warranted. - Page 6 [Warning against risk of electric shock] [Warning against damage in non- compliance with instructions manual] If the warning label is stained or peeled off, contact your LABOMED distributor. GETTING STARTED 1. A microscope is a precision instrument with delicate glass compo- nents.
- Page 7 Luxeo CAUTION If the microscope is used in a manner not specified by this manual, the safety of the user may not be warranted. In addition, the equipment may also suffer damage. Always use the equipment as outlined in this instruction manual. CARE &...
- Page 8 Luxeo Caution: Do not use aggressive organic solvent such as acetone for cleaning painted surfaces and plastic parts of the microscope. 3. Never attempt to dismantle : Never attempt to dismantle the instrument so as to avoid the possibility of impairing its operational efficiency and accuracy.
-

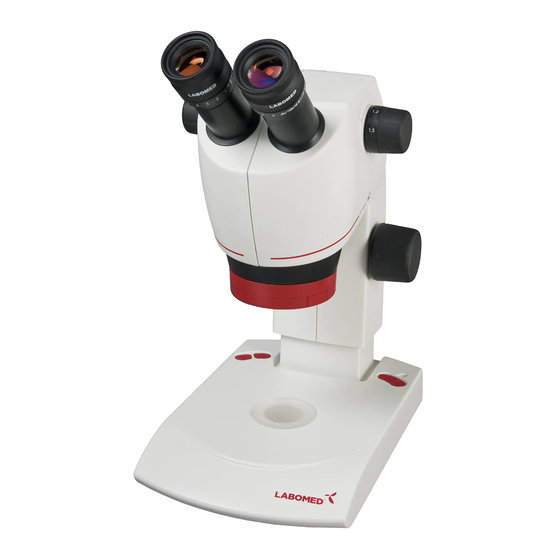

Page 9: Luxeo 2S
Luxeo LUXEO 2S Magnification Changer Eyepieces Observation body Coarse adjustment Objective knob Illumination Control On/Off switch Transmitted Illumination 4140000-795 Issue 1.3 Luxeo Printed on Jan.,2020... -
Page 10: Luxeo 4Z
Luxeo LUXEO 4Z Eyepieces Magnification Changer Observation body Coarse adjustment Objective knob Illumination On/Off switch Control Transmitted Illumination 4140000-795 Issue 1.3 Luxeo Printed on Jan.,2020... -
Page 11: Luxeo 4Z Trinocular
Luxeo LUXEO 4Z TRINOCULAR Camera C-Mount Magnification Changer Eyepieces Observation body Coarse adjustment Objective knob Illumination Control On/Off switch Transmitted Illumination 4140000-795 Issue 1.3 Luxeo Printed on Jan.,2020... -
Page 12: Unpacking Your Microscope
Luxeo UNPACKING YOUR MICROSCOPE 4140000-795 Issue 1.3 Luxeo Printed on Jan.,2020... -
Page 13: Standard Components- Luxeo 2S/4Z
Luxeo STANDARD COMPONENTS - LUXEO 2S/4Z • After removing your microscope from its packaging, make sure that all of the following contents are present. Eyepieces Magnification Changer Observation body Coarse Objective adjustment knob Illumination On/Off switch Control Transmitted Illumination Power Cord... -
Page 14: System Diagram Of Optional
Luxeo SYSTEM DIAGRAM OF OPTIONAL ACCESSORIES ATLAS CMOS CAMERA VEGA CMOS CAMERA 1/2" 3146100 3146200 4140010 4147016 4147020 CAMERA ADAPTER 4143070 EYEPIECE AUXILIARY OBJECTIVE 1.5X WITH RISER BLOCK 4142085 POLORISER ATTACHMENT 4142030 4140000-795 Luxeo Issue 1.3 Printed on Jan.,2020... -
Page 15: Initial Setup
Luxeo INITIAL SETUP INSTALL EYEPIECES Recover the eyepieces from packing and install them in the eyepiece ocular one by one. The ocular tubes are equipped with locking system which prevents the eyepieces from falling, rotat- ing freely or easily pulled out. When Wearing Eyeglasses Use with the eye guards in the normal, folded-down position. - Page 16 Use the coarse motion knob (B) to focus the specimen. B. Luxeo 2S While looking through the eyepiece, rotate the magnification in clockwise or anticlockwise to achieve the desired magnification of 1x/3x/ or 2x/4x.
- Page 17 INSTALLING THE CAMERA In Luxeo 4Z Trinocular, C-Mount adapter is Pre-assembled to use Atlas or Vega Camera as specified by Labomed. Camera is easily threaded onto the C-Mount adapter. Rotate the adapter to erect the Image if image is inverted and lock the adapter in position.
-
Page 18: Summary Of Bright Field Observation Procedure
Luxeo SUMMARY OF BRIGHT FIELD OBSERVATION PROCEDURE Flip the main switch to “ON” Incident and transmitted illumination selector Switch on the incident and/or transmitted illumi- AC inlet nation as required. The illumination for incident Main switch light can be controlled through the membrane switches provided on the observation head. -
Page 19: Troubleshooting Guide
Under certain conditions, performance of the unit may be adversely affected by factors other than defects. If problems occur, please review the following list and take remedial action as needed. If you cannot solve the problem after checking the entire list, please contact Labomed for assistance. OBSERVATION... - Page 20 Labo America Inc. 920 Auburn Court Fremont, CA 94538 U.S.A. Phone: 510-445-1257 Fax: 510-991-9862 Email: sales@laboamerica.com www.laboamerica.com EU REP. Labomed Europe b.v. Essebaan 50 2908 LK Capelle aan den IJssel The Netherlands Phone: +31-10-458-4222, Fax: +31-10-450-8251 E-mail: info@labomedeurope.com A28240 ISO 9001 LABOMED...
