BluStream DA11AEN Quick Reference Manual page 4

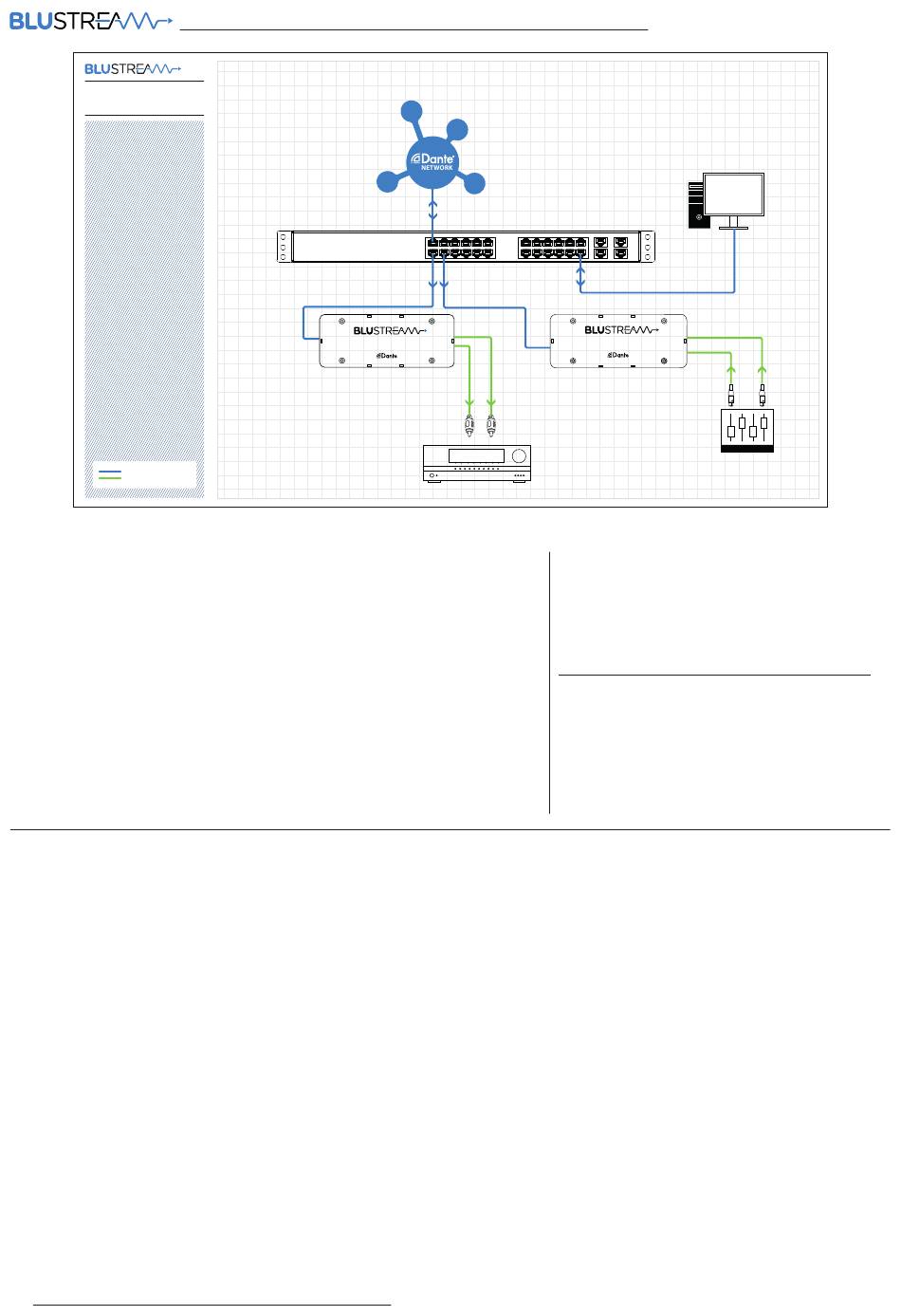

Example Schematic
DA11AEN
CAT Cable
Analogue Audio
Specifications
Audio Input Connectors:
balanced analogue audio)
Audio Output Connectors:
Casing Dimensions (W x H x D):
Shipping Weight: 0.3 Kg
Operating Temperature:
Storage Temperature: - 4°F to 140°F (- 20°C to 60°C)
Power Supply: Class 1 IEEE 802.3af POE PD or 12V/1A DC 2-PIN Phoenix connector
Certifications
FCC NOTICE
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by
turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
04
1G Network Switch
DA11ADE
6-pin Phoenix connector (2ch balanced / un-
1 x RJ45, female (100 Mbps Dante® network)
120mm x 26mm x 47mm
32°F to 104°F (0°C to 40°C)
DA11ADE
Dante ® Audio Analogue Decoder
Analogue
Audio Output
(2 x channels)
CAUTION - changes or modifications not expressly approved
by the party responsible for compliance could void the user's
authority to
operate the equipment.
CANADA, INDUSTRY CANADA (IC) NOTICES
This Class B digital apparatus complies with Canadian ICES-003.
Operation is subject to the following two conditions: (1) this device
may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired
operation of the device.
CORRECT DISPOSAL OF THIS PRODUCT
This marking indicates that this product should not be disposed
with other household wastes. To prevent possible harm to the
environment or human health from uncontrolled waste disposal,
recycle it responsibly to promote the sustainable reuse of material
resources. To return your used device, please use the return and
collection systems or contact the retailer where the product was
purchased. They can take this product for environmentally safe
recycling.
www.blustream.com.au
DA11AEN
Dante®
Controller
DA11AEN
Dante ® Audio Analogue Encoder
DA11AEN
Analogue
Audio Input
(2 x channels)
Package Contents
• 1 x DA11AEN
• 1 x Quick Reference Guide
Acknowledgements
Dante® is a registered trademark of
Audinate Pty Ltd.
| www.blustream-us.com
QUICK REFERENCE GUIDE
| www.blustream.co.uk
