BluStream DA11AU Quick Reference Manual

Introduction

• Analogue audio inputs support both balanced and unbalanced audio signals

• Supports 44.1, 48 & 96 KHz sample rates @ 24 Bit

• Configurable Dante® device latency (supports 1, 2 or 5ms configurable using Dante® Controller)

• Supports AES67 RTP audio transport

• Features Class 1 802.3af PoE for powering of product from any PoE switch

Front Panel

Dante® Audio Output - RJ45 socket connets to your Dante® network.

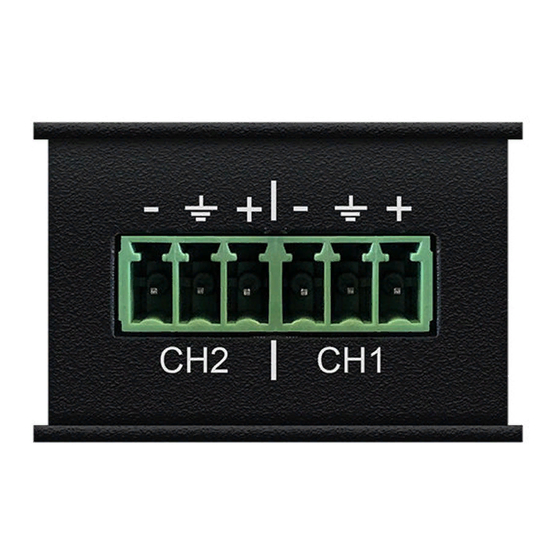

Audio Input - Phoenix Connector accepts balanced or unbalanced 2 channel audio input.

contact

support@blustream.co.uk / support@blustream.com.au

DA11AU

Quick Reference Guide

Our DA11AU has been designed to convert unbalanced or balanced 2ch analogue

audio to Dante® digital signal. The DA11AU allows any non-Dante® audio source

such as mixing consoles, amplifiers, computers and Blustream Matrix products or

distribution products to be connected as a source within a Dante® network. The

DA11AU is a plug & play device that is powered using PoE (Power Over Ethernet)

from any PoE network switch and supports AES67 RTP audio transport.

Rear Panel

DA11AU

QUICK REFERENCE GUIDE

Table of Contents

Do you have a question about the DA11AU and is the answer not in the manual?

Page 1: Quick Reference Guide
Blustream Matrix products or distribution products to be connected as a source within a Dante® network. The DA11AU is a plug & play device that is powered using PoE (Power Over Ethernet) from any PoE network switch and supports AES67 RTP audio transport.
Page 2 By default the DA11AU is shipped with its network settings set to obtain an IP Address automatically. This means that if a DHCP server is present on your network, it will provide the DA11AU with an IP Address. If no DHCP server is present then the DA11AU will receive a default IP Address in the 169.254.xxx.xxx range.
Page 3 QUICK REFERENCE GUIDE Advanced Dante Settings It is also possible to change the settings of the DA11AU under the “Device Info” screen in the Dante Controller software. To do so, select the “Device Config” menu. Here we can adjust the sample rate of the DA11AU. Please note that Dante products can only transmit or receive audio from other Dante products that are set up with the same sample rate.
Page 4: Specifications
Storage Temperature: - 4°F to 140°F (- 20°C to 60°C) Power Supply: Class 1 IEEE 802.3af POE PD Package Contents • 1 x DA11AU • 1 x Quick Reference Guide Acknowledgements Dante® is a registered trademark of Audinate Pty Ltd. www.blustream.co.uk...
