Page 1: User Manual
3 2 1 Coaxial Mode HDMI Output L/R Out Upgrade DC 5V 3 2 1 L/R In HDMI Input EDID SC11HD-V2 User Manual... - Page 2 Safety And Performance Notice Do not substitute or use any other power supply other than the enclosed unit, or a Blustream approved replacement. Do not disassemble either the Transmitter or Receiver units for any reason. Doing so will void the manufacturer’s warranty.

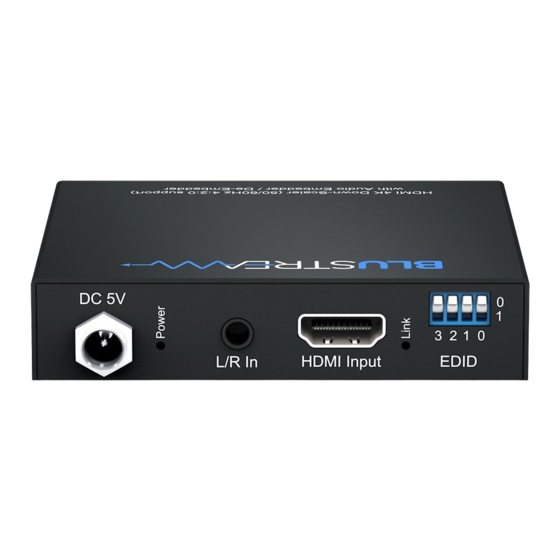

- Page 3 The SC11HD-V2 is ideal for installations with muliple output resolution requirements. The SC11HD-V2 supports down-scaling of 4K video to 1080P and supports HDCP 2.2 with advanced EDID management. It also features either de-embedding or embedding audio within the HDMI signal path.
- Page 4 SC11HD-V2 USER MANUAL Front Panel 3 2 1 Coaxial Mode HDMI Output L/R Out Upgrade DC 5V Connections: 3 2 1 MODE dip-switches - adjust the MODE setting for HDMI output - see page 5 for further details HDMI Input...
-
Page 5: Edid Management
Audio bypass mode - allows HDMI audio to pass through Mode control by serial USB Mode control by DIP switch Note: You must power-cycle the SC11HD-V2 after changes have been made in order for the Mode settings to update. The SC11HD-V2 cannot up-scale to 4K video formats. contact... - Page 6 SC11HD-V2 USER MANUAL Power Link Link www.blustream.co.uk...
-
Page 7: Specifications
32°F to 104°F (0°C to 40°C) Storage Temperature: - 4°F to 140°F (- 20°C to 60°C) Power Supply: 5V/1A DC Package Contents: • 1x SC11HD-V2 • 1x 5V/1A DC power supply • 1x Mounting kit • 1x Quick Reference Guide Maintenance Clean this unit with a soft, dry cloth. - Page 8 www.blustream.com.au...
