Introduction
FEATURES:
• Downmixes 5.1ch Dolby Audio and DTS Audio from optical Toslink or coaxial digital audio input signals from a
compatible source device to 2ch stereo audio
• Simultaneously outputs downmixed 2ch audio via analogue, optical Toslink or coaxial digital audio outputs
• Dolby Audio and DTS Audio formats supported:
• PCM 2ch
• Dolby Digital 2ch
• Dolby Digital 5.1ch
• DTS 2ch
• DTS 5.1ch
• Supports audio signals up to 24-bit with sampling rates up to 96kHz
01
DAC13DB
Quick Reference Guide

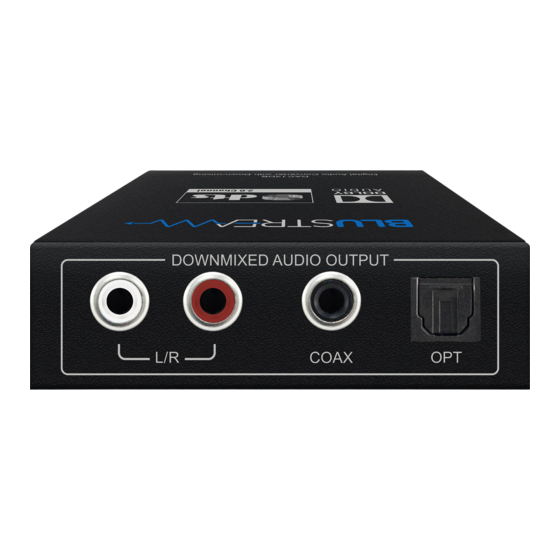

The Blustream DAC13DB has been designed to convert and downmix embedded
5.1ch Dolby Audio or DTS Audio within an optical or coaxial audio signal into a
stereo 2ch signal available on optical, coaxial and analogue audio outputs.
www.blustream.com.au
DAC13DB
QUICK REFERENCE GUIDE
|
www.blustream-us.com
|
www.blustream.co.uk
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for BluStream DAC13DB
Summary of Contents for BluStream DAC13DB
- Page 1 Quick Reference Guide Introduction The Blustream DAC13DB has been designed to convert and downmix embedded 5.1ch Dolby Audio or DTS Audio within an optical or coaxial audio signal into a stereo 2ch signal available on optical, coaxial and analogue audio outputs.

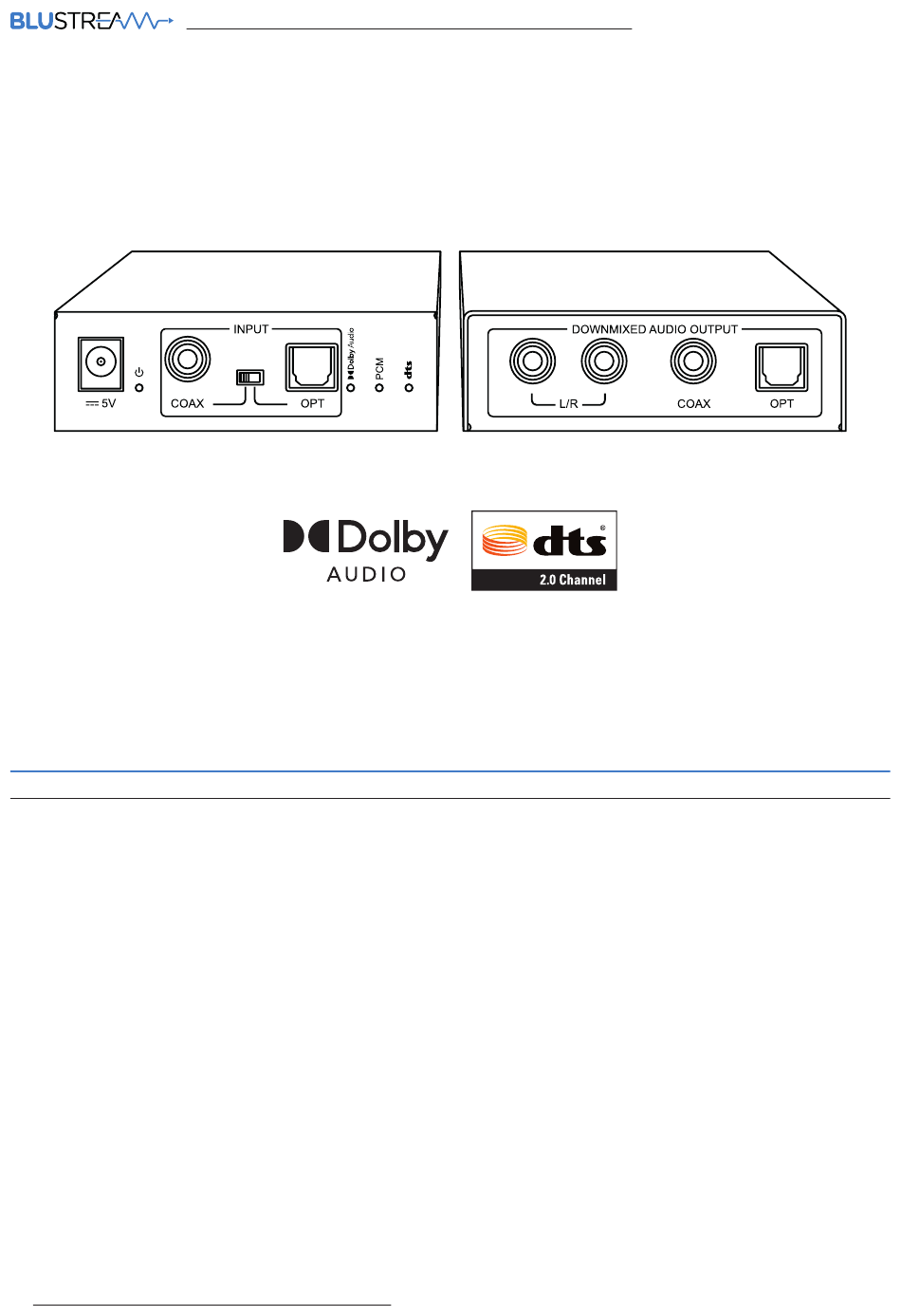

- Page 2 DAC13DB QUICK REFERENCE GUIDE Front Panel Description DC 5V Power Connector - Connect to supplied Blustream 5V/1A DC power supply Power Status Indicator Coaxial S/PDIF Audio Input - Connect to coaxial S/PDIF audio output of source device Input Selection Switch - Select between coaxial or Toslink input signal...
- Page 3 DAC13DB QUICK REFERENCE GUIDE Schematic Example Schematic Multi-channel audio output from a display (Optical) to simultaneous audio devices (Coax and Optical) DAC13DB Soundbar Audio Streaming Device Display 5.1ch Dolby Audio Source 5.1ch DTS Audio Source Digital Audio Example Schematic Multi-channel audio output from a HDMI source device to simultaneous audio devices (L/R 2ch and Coax)
- Page 4 5V/1A DC NOTE: Specifications are subject to change without notice. Weights and dimensions are approximate. Package Contents DAC13DB • 1 x DAC13DB • 1 x Mounting Kit • 1 x Quick Reference Guide • 1 x 5V/1A DC Power Supply Maintenance Clean this unit with a soft, dry cloth.
- Page 5 DAC13DB QUICK REFERENCE GUIDE Certifications FCC NOTICE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 6 DAC13DB QUICK REFERENCE GUIDE Installer Notes www.blustream.com.au www.blustream-us.com www.blustream.co.uk...
- Page 7 DAC13DB QUICK REFERENCE GUIDE Installer Notes Contact: support@blustream.com.au support@blustream-us.com support@blustream.co.uk REVA6_QRG_DAC13DB_211120...
- Page 8 www.blustream.co.uk...
