BluStream Dante DA11USB-V2 Quick Reference Manual

Introduction
FEATURES:
• Encodes 2ch USB audio to Dante® digital signal
• Decodes a Dante® digital signal to USB audio
• Selectable USB audio between USB Type-B and USB-C inputs
• Compliant with USB Audio Device Class Specification V2.0
• USB Audio Supports 44.1, 48, 88.2, 96, 176.4 & 192 KHz sample rates @ 16, 24 & 32 Bit
• Dante® Audio Supports 44.1, 48, 88.2 & 96 KHz sample rates @ 16, 24 & 32 Bit
• Configurable Dante® device latency (supports 2, 3, 4, 5 or 10ms configurable using Dante® Controller)
• Supports AES67 RTP audio transport
• Features Class 0 IEEE 802.3af PoE for powering of product from any PoE switch
• Supports power via 5V USB for when network switch does not support PoE

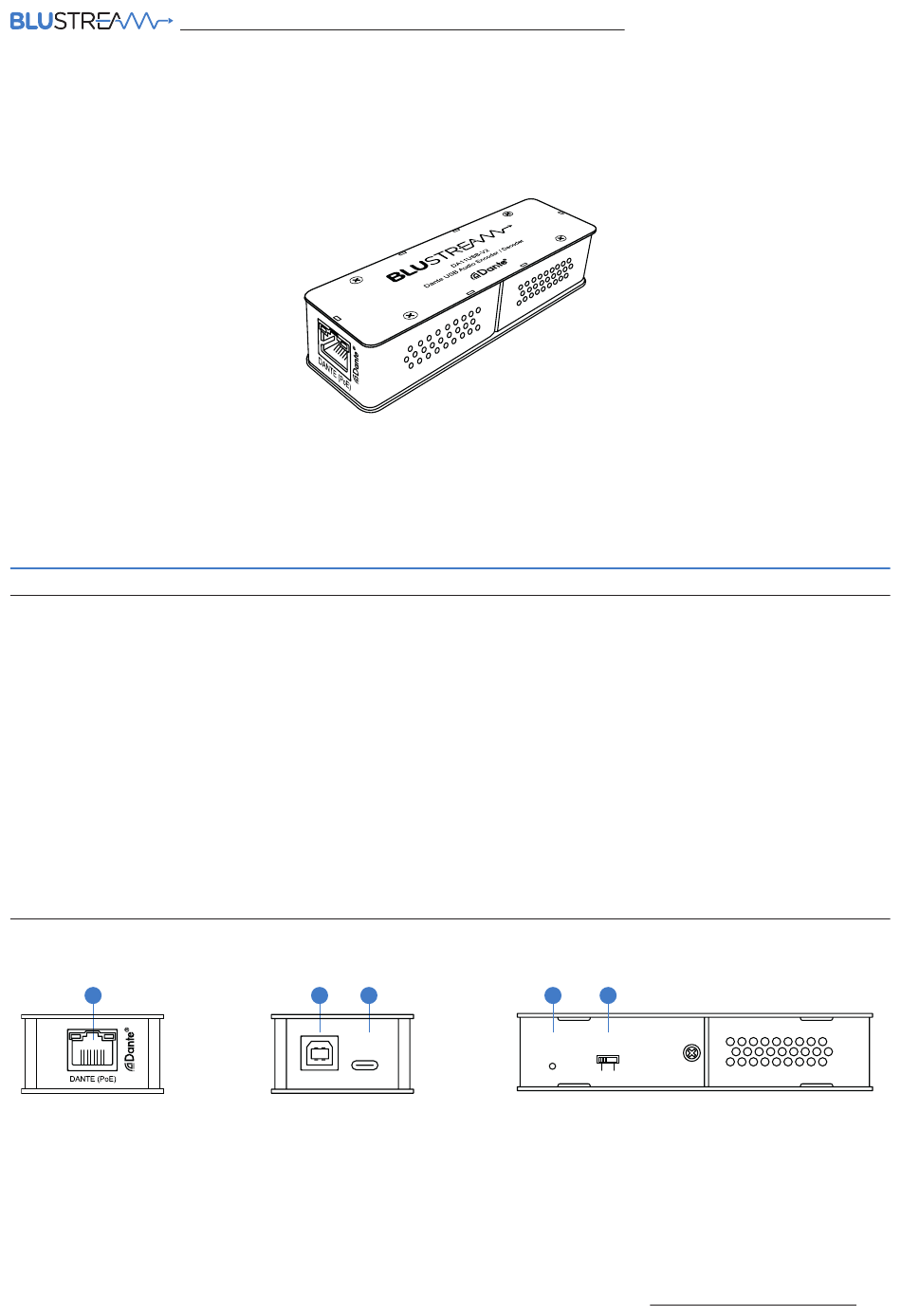

Front Panel
1
DA11USB
Dante USB Audio Encoder / Decoder
Connections:
Dante® Audio Input - RJ45 socket connects Dante® network and powers device via PoE
1
USB-B Connection - Connect to PC via USB-B to USB-A cable provided to provide bi-directional 2ch audio
2
USB-C Connection - Connect to PC via USB-C cable provided to provide bi-directional 2ch audio
3
Reset Switch - Press and hold to reset device
4
USB Selection Switch - Select the USB connection method between USB-B and USB-C
5
Contact:
support@blustream.com.au
DA11USB-V2
Quick Reference Guide
Our DA11USB-V2 has been designed to both encode 2ch USB audio to a Dante® digital
signal, and decode a Dante® digital signal to 2ch USB audio. The DA11USB-V2 features both
USB Type-B and USB-C connections selectable via local dip-switch and is a plug & play
device that is powered using PoE (Power Over Ethernet) or via 5V from the USB device. The
DA11USB-V2 also supports AES67 RTP audio transport.
Rear Panel
2 3
DA11USB
Dante USB Audio Encoder / Decoder
USB-B USB-C
|
support@blustream-us.com

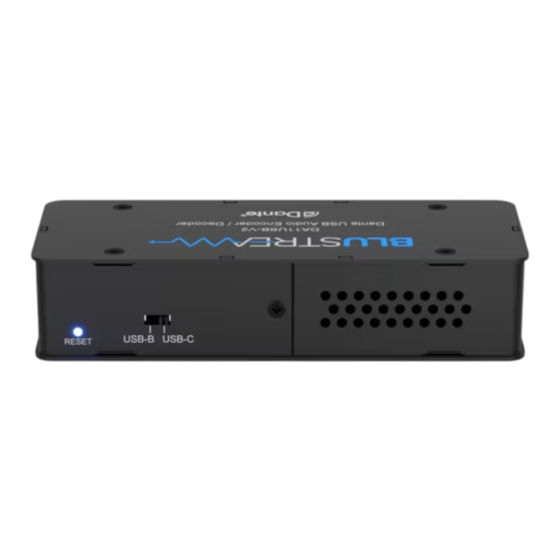

Side Panel
4 5
USB-B USB-C
RESET
USB-B USB-C
|
support@blustream.co.uk
DA11USB-V2
QUICK REFERENCE GUIDE
01
