4. Red side

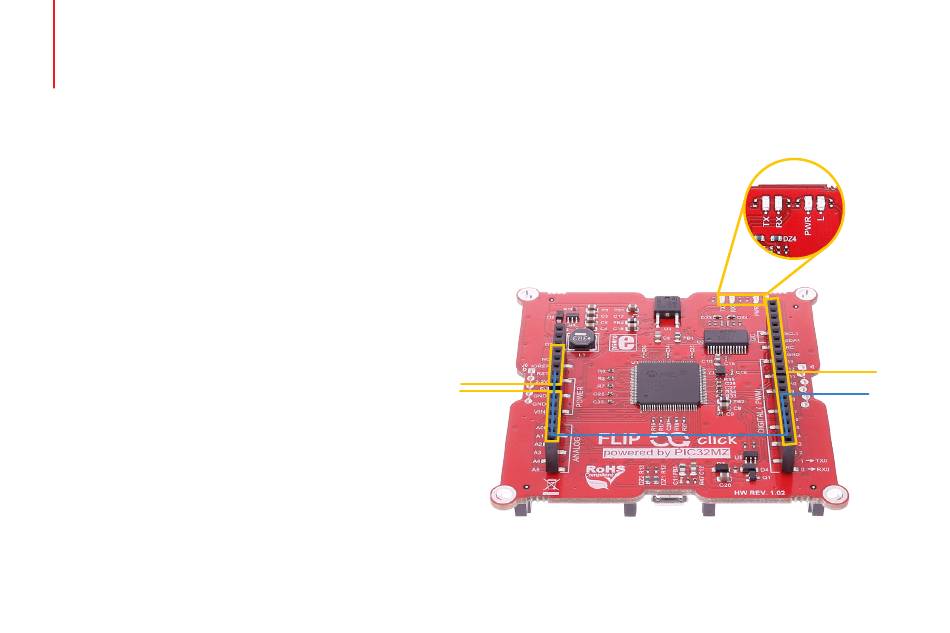

On the red side, Flip&Click
PIC32MZ features a standard
Arduino pinout, which makes
it compatible with a range of
Arduino shields. All the pins
operate on 3.3V logic, just like
with Arduino Due.
The four LEDs are the same as
on Arduino Due. From left to
right: indicating power supply
(PWR), signaling programming
is in progress (TX, RX), and one
connected to MCU pin 43 (L).
POWER
PINS
ANALOG
PINS
Page 9
DIGITAL
(~PWM)
PINS
Arduino
pinout
