Summary of Contents for promotal Polysurg

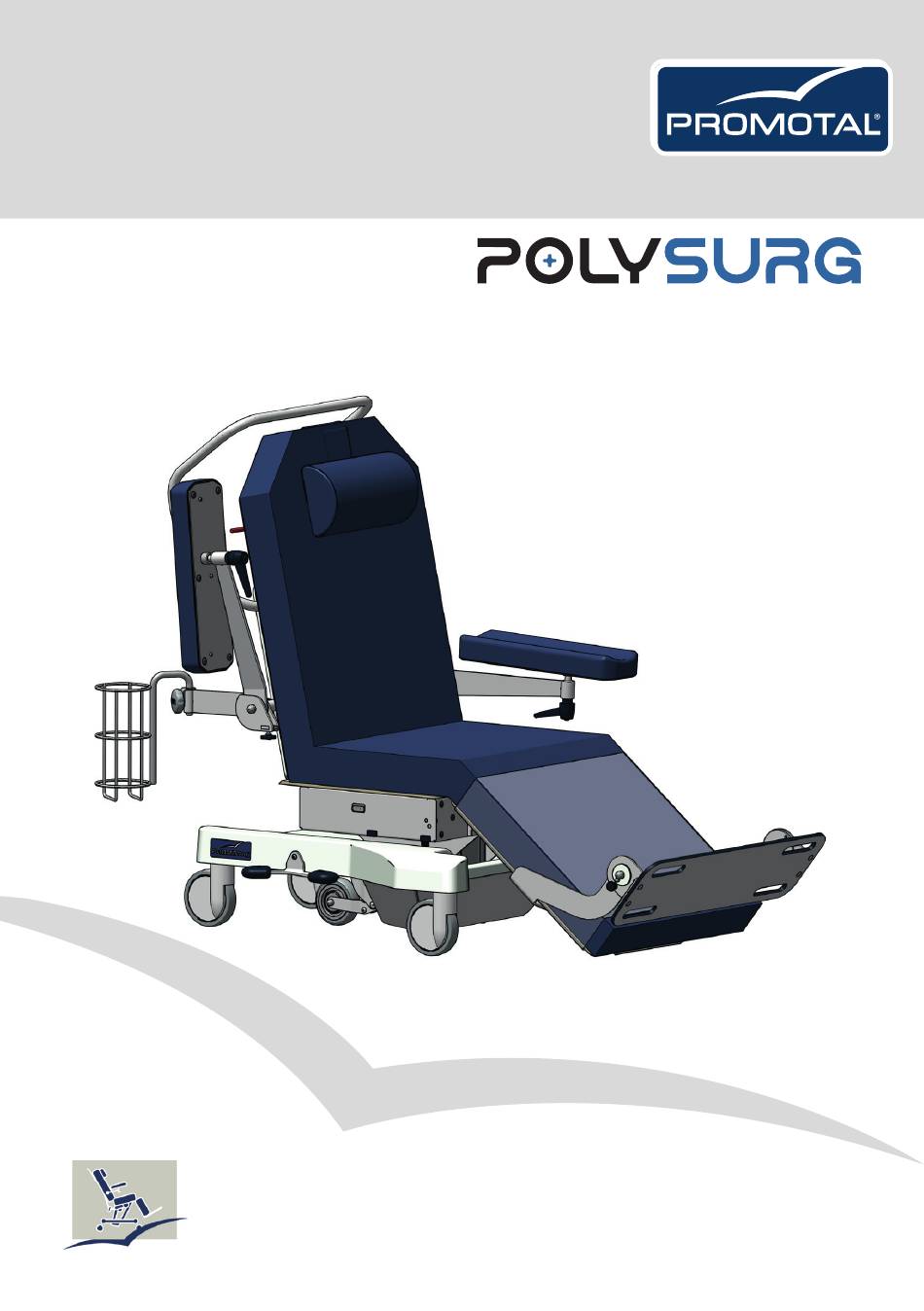

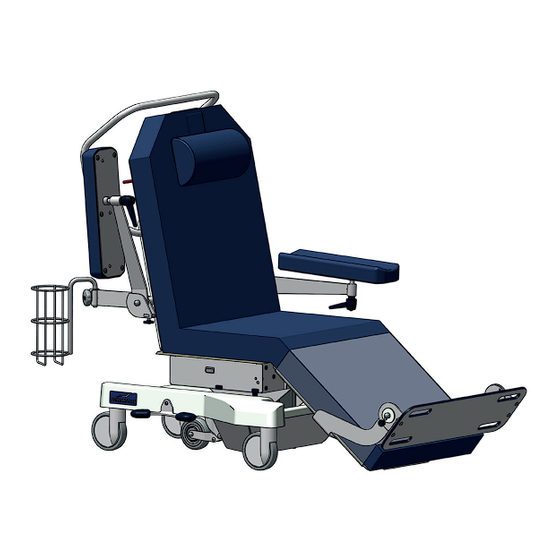

- Page 1 User’s Guide Model Shown : 47010-01 + 47126-01 + 47188- 01 + 47750-01 + 11679-01 Ambulatory surgery chair 47010-01...
- Page 2 Operating Manual are deemed correct at the time of printing. PROMOTAL Promotal , however, reserves the right to modify its models 22, rue de Saint-Denis de Gastines and its procedures or render them obsolete without notice. B.P. 26 - 53500 ERNÉE Cedex...
-
Page 3: Table Of Contents
Storage conditions Conditions of use Unpacking and Installation Step by step Check Remark: Cleaning protocol Warning Cleaning/Disinfecting User manual – PolySurg Intended use Authorisation to use Patient weight capacity Electrical connection Characteristics Dimensions 47000-01 + 47188-01 Equipotential terminal Safety Charging the accumulator... - Page 4 Confort position To adjust the height To adjust the back rest To adjust seat inclination To adjust the foot cushion Using the PolySurg Mechanical braking on individual and steering wheels Using the castors Emergency mechanical disengaging Using the disengaging Dialysis armrests...
- Page 5 The wear parts are: Compulsory / specific maintenance Once a year, ensure that the following checks are carried out by a qualified technician (contact your dealer): Once a month : Medical device end of service life RESET procedure Method Maintenance notebook Warranty Information Warranty Obligations...
-
Page 6: Important Information
Important information Safety symbols Warning sign Remark Draws your attention to Information marked with this symbol must a procedure, practice or situation. be read and strictly complied with! Maximum number of Correct orientation for Humidity limitation stacked pallets transportation Atmospheric pressure Temperature Fragile limitation... -
Page 7: Applied Parts
Electromagnetic interference This Promotal medical device was designed and built to minimize electromagnetic interference with other equipment. If interference is, however, observed, you must remove the apparatus causing the interference from the room and/or plug it into an isolated circuit. -
Page 8: Unpacking Precautions
Unpacking precautions Medical device delivered on a wooden pallet The medical device positioned on a wooden pallet ensure that the forklift truck is correctly positioned may be easily moved using a forklift truck, as long in relation to the pallet, and that the unit is stable. as this is used correctly. -
Page 9: Check
2) Check the external components for any damage during transportation. Remark: Within the European Union, all problems, complaints or questions should be addressed to: Promotal 22, rue de Saint-Denis de Gastines 53500 Ernée, FRANCE Telephone : + 33 (0)2 430 517 76 Fax : + 33 (0)2 430 572 00 User’s Guide... -
Page 10: Cleaning Protocol
• The use of abrasive powders or any other abrasive product should be avoided. • High-pressure cleaning is forbidden. Under no circumstances shall Promotal be held liable under warranty for any damage caused by non-compliance with the use instructions for a detergent- disinfectant. -
Page 11: User Manual - Polysurg
User manual – PolySurg Intended use This Medical Device (DM) is designed for outpatient treatment in healthcare institutions; this articulated chair can be used to transport patients either sitting up or lying down, in addition to in the reception, awakening, recovery and Tredelenburg * positions This appliance must not be installed in domestic premises. -
Page 12: Characteristics
User manual – PolySurg Characteristics Steel structure with white epoxy finish Electrically adjusted height ranging from 52 to 92 Electrically adjusted backrest Electrically adjusted leg rest 15° reverse Trendelenburg position Removable waterproof, anti-allergy mattress, thickness: 100 mm (comprising 2 foam layers: 1 x 35 kg/m3 HR foam layer, thickness: 70 mm and 1 viscoelastic (memory) -
Page 13: Dimensions 47000-01 + 47188-01
Dimensions 47000-01 + 47188-01 MINI : 2100 MINI : 2124 MAXI : 2260 MAXI : 2286 MINI : 620 MINI : 471 MAXI : 781 MAXI : 631 User’s Guide... -
Page 14: Equipotential Terminal
User manual – PolySurg Equipotential terminal this medical device is electrical class 1. It must be connected to a grounded power supply system only. Remark the equipotential terminal allows the connection of an equipotential conductor to bring all the different elements of an electro-medical system to the same potential. -
Page 15: Safety
Safety Safety note Before using the medical device lowering control, ensure that no objects or obstacles are between the moving parts and the ground. Safety note When applying preset positions (Home, Comfort, Bed, Trend and Emergency) do not leave the patient on the medical device without supervision Safety note Unplug the power supply cable before moving the MD. -
Page 16: Charging The Accumulator
Safety (Integrated with the chair power supply) Accumulator Note: the chair operate “ACCU. mode” or “Sector mode” . Charging the accumulator Before using the chair for the 1st time, it is recommended to leave it plugged into the mains for 24 hours to enable the accumulator to charge fully. -
Page 17: Accumulator Safety Symbols
Accumulator safety symbols Do not throw the product away Certification standard with household waste IP66 Protection rating Recyclable Use in dry conditions only Contains pollutants Lead, etc. Fuses Technical characteristics of the accumulator Voltage ......: 25,6 V DC Amperage ......: 4 Ah Accumulator type .... -
Page 18: Using The Individual Control
Using the individual control Manual command Presentation Safety note When applying preset positions (Home, Comfort, Bed, Trend and Emergency) do not leave the patient on the medical device without supervision The control goes into standby mode after not being used for 1 minute. Simply press on any button to restart. -
Page 19: Description Of Functions
Using the control panel Description of functions Home position This is the standard entry and exit position, with: Raised backrest Retracted footrest The seat is positioned 53 cm from the floor To apply this position, press and hold NB: this position cannot be adjusted Bed position This position is at a height of 63 cm, with the leg rest, headrest and seat horizontal To apply this position, press and hold... -
Page 20: Using The Control Panel
Using the control panel Reception position The position below is obtained by a sustained press on the manual control “Stretcher/Bed” Position The position below is obtained by a sustained press on the manual control User’s Guide... -
Page 21: Emergency Position
Trendelenburg position The position below is obtained by a sustained press on the manual control Emergency position The position below is obtained by a sustained press on the manual control Confort position The position below is obtained by a sustained press on the manual control User’s Guide... -
Page 22: To Adjust The Height
Using the control panel To adjust the height Use the control panel. To adjust the back rest Use the control panel. User’s Guide... -
Page 23: To Adjust Seat Inclination
To adjust seat inclination Use the control panel. To adjust the foot cushion Use the control panel. User’s Guide... -
Page 24: Using The Polysurg
Using the PolySurg Mechanical braking on individual and steering wheels Using the castors The MD is equipped with 3 wheels with 2 functions (free or locked) and one wheel with 32 functions (directional, free), which is marked with a green ring. -
Page 25: Dialysis Armrests
Dialysis armrests The armrests follow the movement of the backrest Dialysis armrest assembly Please note that the armrests are supplied dismantled at the time of delivery. Check that parts are securely tightened before each use User’s Guide... -
Page 26: To Adjust Dialysis Arm Rests
Using the PolySurg To adjust dialysis arm rests - Loosen the arm rest clamping wheel - Place the arm rest in the desired position and retighten the wheel Caution Tighten the knobs before use. Do not press on the ends of the armrests to get out of the chair. -
Page 27: Usb Socket
USB socket (Input 24 VDC / Output 5V 2A) Connect one USB device to the socket located to the right of the seat. Crystal protection Installing the protection Position the protection on the mattress at level of the feet. User’s Guide... -
Page 28: The Centralized Brakes
Options The centralized brakes (reference 47126-01) Using the centralized brakes 3 pedal positions 1 : Pedal in horizontal position : The 5 wheels are free. 2 : Pressing the green pedal (Directional position): The wheel of Ø 125 will get directionally locked when the stretcher will be moving. -
Page 29: Adjustment Of The Electric Foot-Bar
Options Adjustment of the electric foot-bar (reference 47188-01) Use the control panel. Release the lock and manually guide the footrest to the desired position. This device extends the total length of the medical device by 16 cm User’s Guide... -
Page 30: Accessories
Accessories IV pole (reference 2985-01) Installing the IV pole Unscrew the screw handle. Insert the I.V. pole and rescrew. Adjusting the height of the IV pole The IV pole has 1 sliding stem. Use the screw to adjust the height of the lower stem and the bolt to adjust the upper stem. Check that the parts are securely tightened before each use User’s Guide... -
Page 31: Adjustable Head Rest
Adjustable head rest (reference 11679-01) Using the head rest Adjustment: - The head rest can be adjusted simply by pressing Positioning: on it to lower it, or by pulling on the band insert - Push the head rest's band insert into the back rest to raise it. -
Page 32: Clamp
Accessories Clamp (reference 47351-01) Installing the clamp Remove the plastic end pieces. Insert the clamp into the relevant space and tighten the blocking screw Check that the parts are securely tightened before each use User’s Guide... -
Page 33: Reading Table
Reading table (reference 47350-01) - Loosen the clamp's tightening wheel - Retighten the wheel. - Place the table shaft in the clamp provided for this Once the table has been fixed, you can adjust it's purpose. orientation using the tightening wheel on the table shaft. -
Page 34: Panel Support
Accessories Panel support (reference 47731-01) - Loosen the clamp's tightening wheel - Place the flexible shaft in the clamp provided for this purpose. - Retighten the wheel. Caution Check that the parts are securely Clamps are required to install the tightened before each use accessories. -
Page 35: Pda Support
PDA support (reference 47780-01) Installing the support - Loosen the tightening wheel of the vice. - Place the flexible rod in the vice provided for this purpose. - Retighten the handwheel. - Fix the PDA on the support. Caution Check that the parts are securely Clamps are required to install the tightened before each use accessories. -
Page 36: Oxygen Bottle Holder
Accessories Oxygen bottle holder (reference 47750-01) Installing the bottle holder Insert the bottle holder into the location provided for this purpose. Check that the parts are securely Check that the strap is securely tightened before use tightened before each use Ø... -
Page 37: Notes
Notes User’s Guide... - Page 38 Notes User’s Guide...
-
Page 39: Lifespan Of The Medical Device
Medical device end of service life Your dealer is responsible for the recovery and end of life treatment of this device. If necessary, do not hesitate to contact Promotal. We can propose solutions to treat this equipment in the best conditions. -
Page 40: Reset Procedure
RESET procedure If the medical device malfunctions, reset the motors. Method Press any button to activate the remote control Press and hold buttons until the LED starts to flash (about 30 seconds) User’s Guide... -
Page 41: Maintenance Notebook
Maintenance notebook User’s Guide... -
Page 42: Warranty Information
No Authorization No person or fi rm is authorized to create for Promotal any other obligation or liability in connection with the products. THIS WARRANTY IS PROMOTAL’S ONLY WARRANTY AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. - Page 43 22 rue de Saint Denis de Gastines 53500 Ernée – France SRN: FR-MF-000001666 declare, under our sole responsibility, that the following electrical medical device: Commercial name: PolySurg 47000-01 & 47010-01 Description: Ambulatory surgery chair Basic UDI-DI: 37014094POLYM8 is a Class I medical device,...
- Page 44 PROMOTAL - FRANCE www.promotal.com DIC47010-01_1424EN...
