Champion Model 44 Specifications

44" single tank high temperature rack conveyor dishwashing machine
Hide thumbs Also See for Model 44:
1
2
3
4
5
6

Advertisement

Table of Contents

See also: Installation and Servicing Manual
STANdARd FeATuReS
• One-piece cast stainless steel upper
& lower spray arm assemblies
• Internal removable scrap basket and
two-piece scrap screen
• Standard vertical opening accommodates
18" x 26" sheet pans
• Wide 26" leakproof doors, internally-fitted
• Anti-jam conveyor drive system
• Energy Sentinel (Idle pump shut-off)
• Convenient top-mounted controls
• Automatic tank fill
• Common utility connections
• Door safety switch
• Door activated drain closure
• Enclosure panels (front and sides)
• Splash shields
• Low-water tank heat protection
• Rinse-saver device
• Stainless steel heavy-gauge construction,
including base and feet
• Electric tank heat
• Wash pump 2 Hp motor
• Stainless steel pump and impeller
2674 N. Service Road,
Jordan Station, Ontario, Canada L0R 1S0
Tel: 800/263-5798 Fax: 905/562-4618
(1M) 1/08 Printed in U.S.A.
Project
Item No.
Quantity

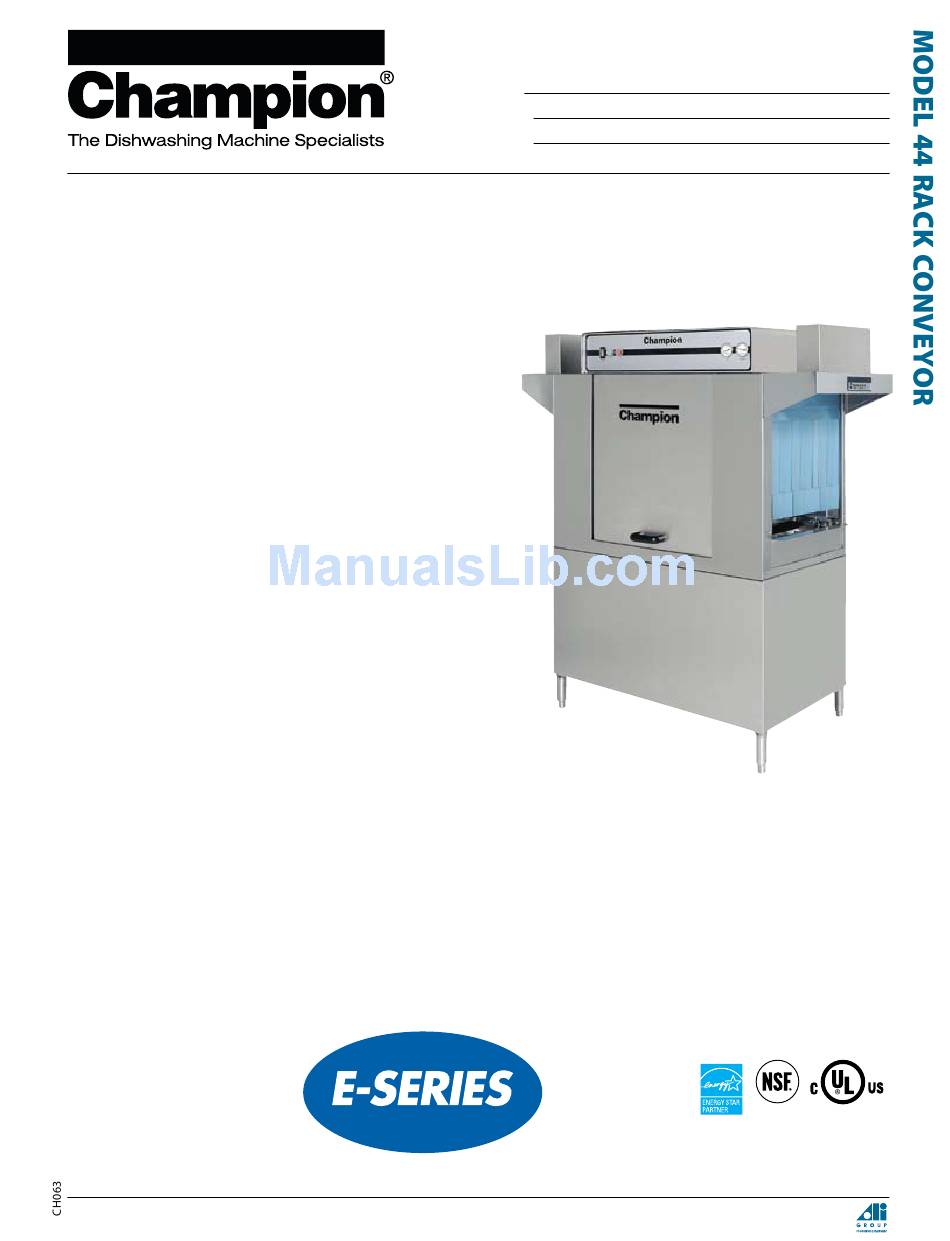

Rack Conveyor Dishwashing Machine
Shown with Vent Cowl
and Damper Option
SPeCIFIeR STATeMeNT
Specified unit will be Champion Model 44 high
temperature rack conveyor dishwashing machine.
Constructed of Type 304 stainless steel and measuring
44" long with 20-3/4" vertical opening. Features top
mounted control cabinet; upper and lower one-piece
stainless steel spray arm assemblies, removable internal
scrap basket with two-piece scrap screen. Large 26"
wash door with front access and double-hook safety
latch. Anti-jam conveyor drive system.
1 year parts and labor warranty.
Model 44
44" Single Tank
High-Temperature
Champion Industries, Inc.
P. O. Box 4149, Winston-Salem, NC 27115
Tel: 800/532-8591 Fax: 336/661-1979
www.championindustries.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Model 44 and is the answer not in the manual?

Questions and answers

Related Manuals for Champion Model 44

Summary of Contents for Champion Model 44

  • Page 1 Model 44 Rack Conveyor Dishwashing Machine Shown with Vent Cowl and Damper Option SPeCIFIeR STATeMeNT Specified unit will be Champion Model 44 high temperature rack conveyor dishwashing machine. Constructed of Type 304 stainless steel and measuring 44” long with 20-3/4” vertical opening. Features top mounted control cabinet; upper and lower one-piece stainless steel spray arm assemblies, removable internal scrap basket with two-piece scrap screen. Large 26”...
  • Page 2 • Stainless steel booster heater lasts the life of the machine • Integrated design saves floor space www.championindustries.com Wall-of-Water Spray Pattern Large Heating Element Two-Piece Scrap Screen Model 44 44” Single Tank High-Temperature Rack Conveyor Dishwashing Machine One-Piece Cast Stainless Steel Spray Assembly Stainless Steel Built-in Nested Booster...

  • Page 3: Front View

    Can be up to 10" 8" 1-3/4" 5/8" 2-1/4" 21" Sug gested Table Construction Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 • 800/532-8591 • Fax: 336/661-1979 • www.championindustries.com Champion Industries, Inc., P . O. Box 4149, Winston-Salem, NC 271 2674 N. Service Road, Jordan Station, Ontario, Canada L0R 1S0 • 800/263-5798 • Fax: 905/562-4618 2674 N. Service Road, Jordan Station, Ontario, Canada L0R 1S0 • 800/263-5798 • Fax: 905/562-4618 12" Plumbing 7" Clearance Cowl 89" Door 20"...
  • Page 4 Can be up to 10" 8" 1-3/4" 5/8" 2-1/4" 21" Sug gested Table Construction Champion Industries, Inc., P . O. Box 4149, Winston-Salem, NC 271 Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 • 800/532-8591 • Fax: 336/661-1979 • www.championindustries.com 2674 N. Service Road, Jordan Station, Ontario, Canada L0R 1S0 • 800/263-5798 • Fax: 905/562-4618 2674 N. Service Road, Jordan Station, Ontario, Canada L0R 1S0 • 800/263-5798 • Fax: 905/562-4618 12" Plumbing 7" Clearance Cowl 89"...

  • Page 5: Specifications

    53 70 240/60/3 47 60 480/60/3 30 575/60/3 Due to an ongoing value analysis program at Champion, specifications contained in this catalog are subject to change without notice. Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 • 800/532-8591 • Fax: 336/661-1979 • www.championindustries.com 2674 N. Service Road, Jordan Station, Ontario, Canada L0R 1S0 • 800/263-5798 • Fax: 905/562-4618 TABle B - BooSTeR CoNNeCTIoN 40°F/22°C Rise – 27 kW Electric built-in booster (booster only) Minimum Maximum Supply Ckt.

  • Page 6: Options And Accessories

    Vent cowl, stainless steel with 7” stack and locking damper Water pressure regulating valve (unmounted) (standard with booster) Vent fan control Single point electrical connection Due to an ongoing value analysis program at Champion, specifications contained in this catalog are subject to change without notice. Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 • 800/532-8591 • Fax: 336/661-1979 • www.championindustries.com 2674 N. Service Road, Jordan Station, Ontario, Canada L0R 1S0 • 800/263-5798 • Fax: 905/562-4618 Model MRC 180 180° Motorized Rack Curve...
