STANDARD FEATURES
• Dual-pawl cradle drive system
• One-piece cast stainless steel upper
& lower spray arm assemblies
• Internal removable scrap baskets with
two-piece scrap screens
• Standard vertical opening accommodates
18" x 26" sheet pans
• Wide 26" leakproof door, internally-fitted
• Anti-jam conveyor drive system
• Energy Sentinel (Idle pump shut-off)
• Convenient top-mounted controls
• Automatic tank fill
• Common utility connections
• Door safety switch
• Door activated drain closure
• Enclosure panels (front and sides)
• Splash shields
• Low-water tank heat protection
• Rinse-saver device
• Stainless steel heavy-gauge construction,
including base and feet
• Electric tank heat
• Wash pump 2 Hp motor
• Stainless steel pump and impeller
• Single-point electrical connection
2674 N. Service Road,
Jordan Station, Ontario, Canada L0R 1S0
Tel: 905/562-4195
Fax: 905/562-4618
(3M) 9/06
Printed in U.S.A.
Project
Item No.
Quantity

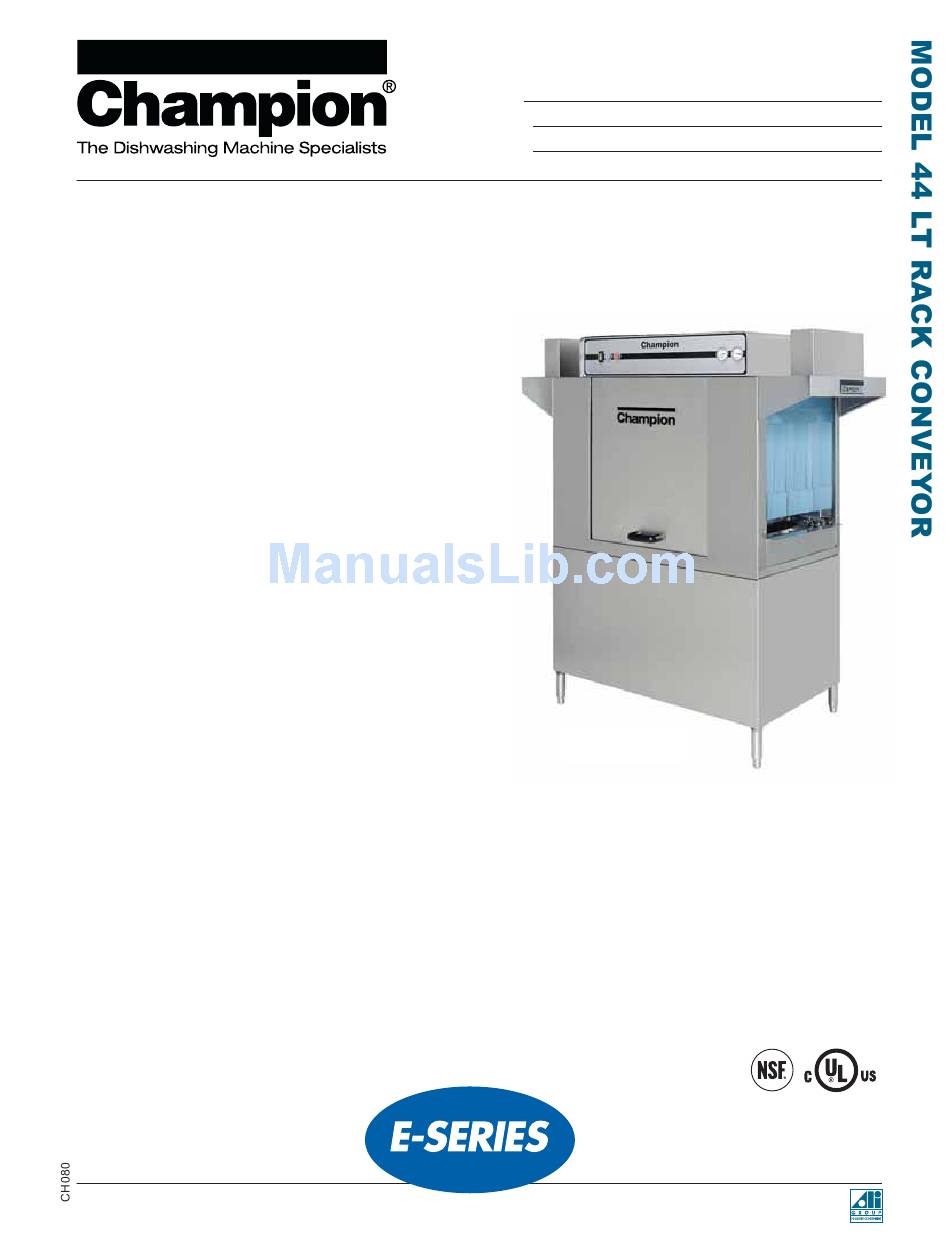

MODEL 44 LT
Rack Conveyor Dishwashing Machine
Shown with Vent Cowl
and Damper Option
SPECIFIER STATEMENT
Specified unit will be Champion Model 44 LT low
temperature rack conveyor dishwashing machine.
Constructed of Type 304 stainless steel and
measuring 44" long with 20-3/4" vertical opening.
Features top mounted control cabinet; upper and
lower one-piece stainless steel spray arm
assemblies, removable internal scrap basket with
two-piece scrap screen. Large 26" wash door with
front access and double-hook safety latch.
Anti-jam conveyor drive system.
1 year parts and labor warranty.
P. O. Box 4149, Winston-Salem, NC 27115
Tel: 336/661-1556
44" Single Tank
Low-Temperature
Champion Industries, Inc.
Fax: 336/661-1979
www.championindustries.com
