Champion Model 100 HDPW Specifications

64" two tank with heavy duty 36" prewash rack conveyor dishwashing machine
Hide thumbs Also See for Model 100 HDPW:
1
2
3
4
5
6

Advertisement

Table of Contents

STANDARD FEATuRES
• ENERGY STAR® Qualified
•
Dual-pawl cradle drive system
•
One-piece cast stainless steel upper & lower
spray arm assemblies for ease of cleaning
•
Internal removable scrap baskets with
two-piece scrap screens
•
Standard vertical opening accommodates
18" x 26" sheet pans
•
Wide 26" leakproof doors, internally-fitted
for ease of cleaning
•
Anti-jam conveyor drive system
•
Energy Sentinel (Idle pump shut-off)
•
Convenient top-mounted controls
•
Automatic tank fill
•
Common utility connections
•
Door safety switch
•
Door activated drain closures
•
Enclosure panels (front and sides)
•
Splash shields
•
Low-water tank heat protection
•
Rinse-saver device
•
Stainless steel heavy-gauge construction,
including base and feet
•
Electric tank heat
•
Prewash pump 1 Hp motor
•
External prewash scrap basket
•
Wash/rinse pump 2 Hp motors
•
Stainless steel pump and impellers
•
Single point connection
2674 N. Service Road,
Jordan Station, Ontario, Canada L0R 1S0
Tel: 800/263-5798 Fax: 905/562-4618
(1M) 6/07 Printed in U.S.A.
Project
Item No.
Quantity
Model 100 HdPW
64" Two Tank with Heavy Duty 36" Prewash

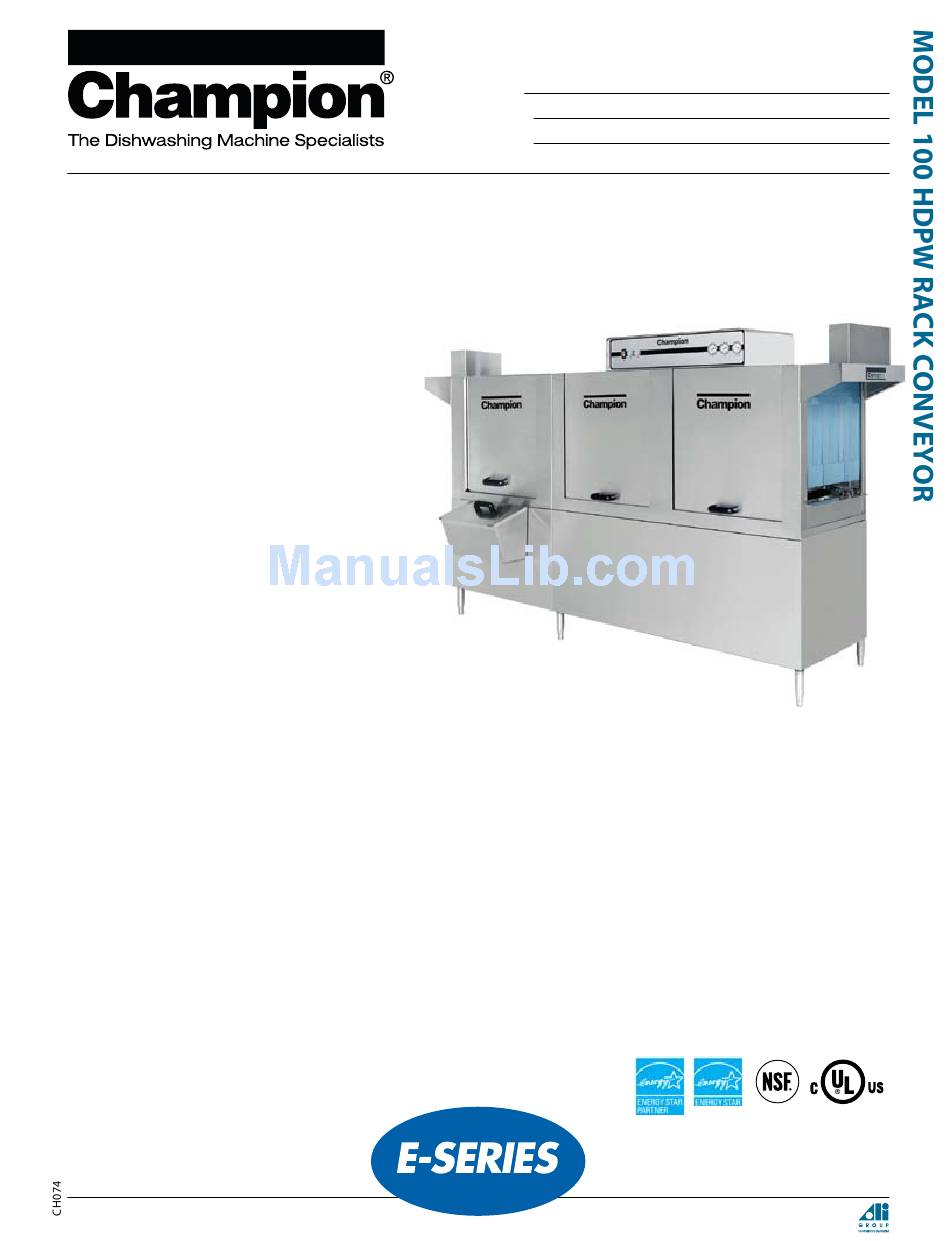

Shown with Vent Cowl
and Damper Option
SPECIFIER STATEMENT
Specified unit will be Champion Model 100 HDPW,
high temperature rack conveyor dishwashing machine
with 36" prewash. Constructed of Type 304 stainless
steel and measuring 100" long with 20" vertical opening.
Features top mounted control cabinet; upper and
lower one-piece stainless steel spray arm assemblies,
removable internal scrap baskets with two-piece scrap
screens, external prewash scrap basket. Large 26"
access doors with double-hook safety latches. Anti-jam
conveyor drive system.
1 year parts and labor warranty.
Rack Conveyor
Dishwashing Machine
Champion Industries, Inc.
P. O. Box 4149, Winston-Salem, NC 27115
Tel: 336/661-1556 Fax: 336/661-1979
www.championindustries.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Model 100 HDPW and is the answer not in the manual?

Questions and answers

Related Manuals for Champion Model 100 HDPW

Summary of Contents for Champion Model 100 HDPW

  • Page 1 Shown with Vent Cowl and Damper Option SPECIFIER STATEMENT Specified unit will be Champion Model 100 HDPW, high temperature rack conveyor dishwashing machine with 36” prewash. Constructed of Type 304 stainless steel and measuring 100” long with 20” vertical opening.
  • Page 2 Stainless steel booster heater lasts the life of the machine • Integrated design saves floor space www.championindustries.com Model 100 HdPW 64” Two Tank with Heavy Duty 36” Prewash Wall-of-Water Spray Pattern One-Piece Cast Stainless Steel Spray Assembly Large Heating Element...
  • Page 3 (instead of standard 20”) for large ware Due to an ongoing value analysis program at Champion, specifications contained in this catalog are subject to change without notice. Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 • 336/661-1556 • Fax: 336/661-1979 • www.championindustries.com 2674 N.
  • Page 4 Suggested Table Construction Due to an ongoing value analysis program at Champion, specifications contained in this catalog are subject to change without notice. Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 • 336/661-1556 • Fax: 336/661-1979 • www.championindustries.com 2674 N.

  • Page 5: Front View

    Suggested Table Construction Due to an ongoing value analysis program at Champion, specifications contained in this catalog are subject to change without notice. Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 • 336/661-1556 • Fax: 336/661-1979 • www.championindustries.com 2674 N.

  • Page 6: Specifications

    480/60/3 575/60/3 Due to an ongoing value analysis program at Champion, specifications contained in this catalog are subject to change without notice. Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 • 336/661-1556 • Fax: 336/661-1979 • www.championindustries.com 2674 N. Service Road, Jordan Station, Ontario, Canada L0R 1S0 • 905/562-4195 • Fax: 905/562-4618 TABlE B - BOOSTER CONNECTION 40°F/22°C Rise –...
