Champion Model 66 LTPW Specifications

STANDARD FEATURES
• Dual-pawl cradle drive system
• One-piece cast stainless steel upper
& lower spray arm assemblies
• Internal removable scrap baskets with
two-piece scrap screens
• Standard vertical opening accommodates
18" x 26" sheet pans
• Wide 15-1/2" and 26" leakproof doors,
internally-fitted
• Anti-jam conveyor drive system
• Energy Sentinel (Idle pump shut-off)
• Convenient top-mounted controls
• Automatic tank fill
• Common utility connections
• Door safety switch
• Door activated drain closure
• Enclosure panels (front and sides)
• Splash shields
• Low-water tank heat protection
• Rinse-saver device
• Stainless steel heavy-gauge construction,
including base and feet
• Electric tank heat
• Prewash pump 1 Hp motor
• External prewash scrap basket
• Wash pump 2 Hp motor
• Stainless steel pumps and impeller
• Single-point electrical connection
2674 N. Service Road,
Jordan Station, Ontario, Canada L0R 1S0
Tel: 905/562-4195 Fax: 905/562-4618
(1M) 9/06 Printed in U.S.A.
Project
Item No.
Quantity

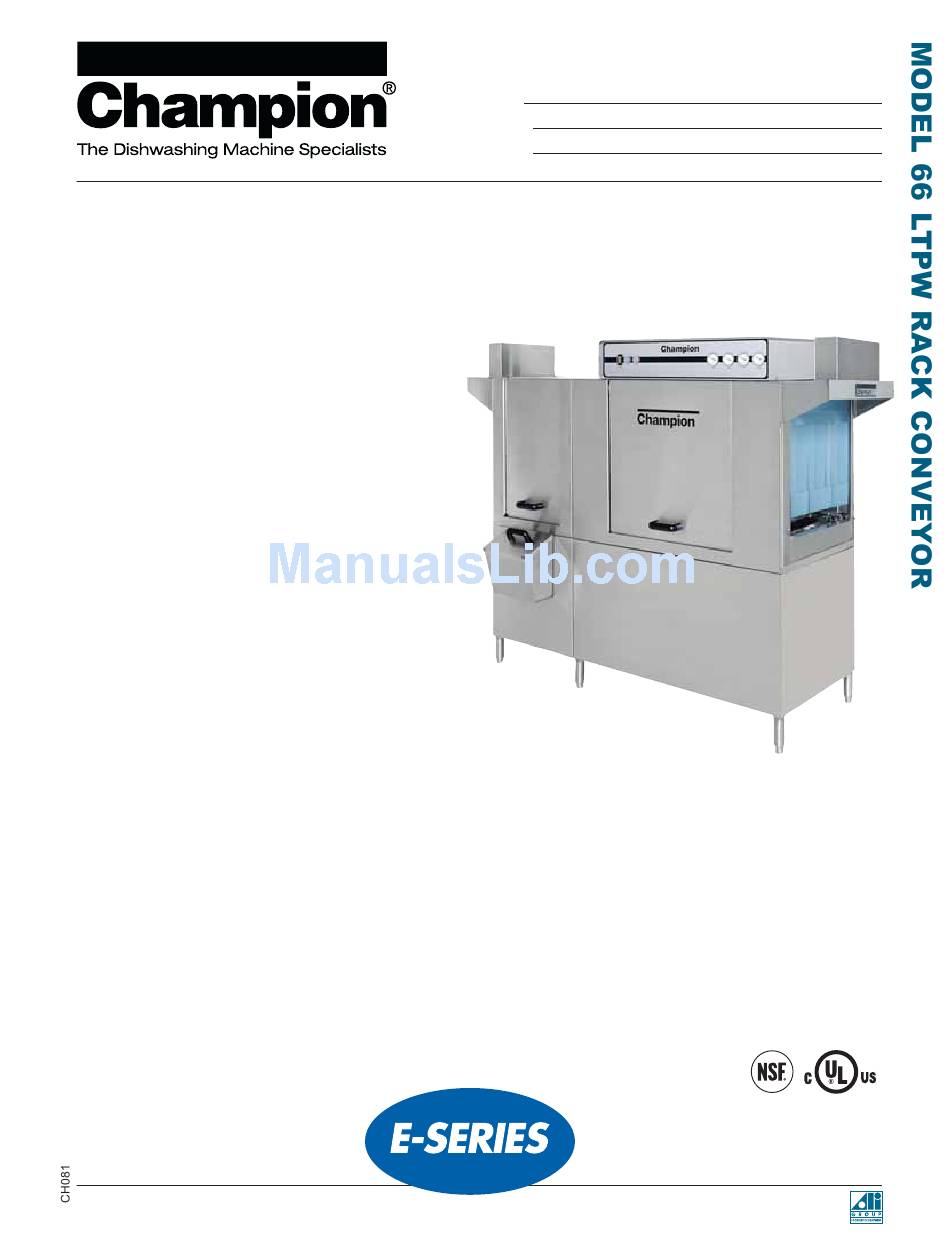

MODEL 66 LTPW
Rack Conveyor Dishwashing Machine
Shown with Vent Cowl
and Damper Option
SPECIFIER STATEMENT
Specified unit will be Champion Model 66 LTPW
low temperature rack conveyor dishwashing
machine with 22" prewash. Constructed of Type
304 stainless steel and measuring 44" long with
20-3/4" vertical opening. Features top mounted
control cabinet; upper and lower one-piece stainless
steel spray arm assemblies, removable internal
scrap basket with two-piece scrap screen. Large
15-1/2" prewash and 26" wash and door with front
access and double-hook safety latch.
Anti-jam conveyor drive system.
1 year parts and labor warranty.
P. O. Box 4149, Winston-Salem, NC 27115
Tel: 336/661-1556
44" Single Tank with 22" Prewash
Low-Temperature
Champion Industries, Inc.
Fax: 336/661-1979
www.championindustries.com
