sTandard FeaTUres
• ENERGY STAR® Qualified
•
Exclusive DualRinse Technology
•
Dual-pawl cradle drive system
•
One-piece cast stainless steel upper
& lower spray arm assemblies
•
Internal removable scrap basket with
two-piece scrap screen
•
Standard vertical opening accommodates 18"
x 26" sheet pans
•
Wide 15-1/2" and 26" leakproof doors,
internally-fitted
•
Anti-jam conveyor drive system
•
Energy Sentinel (Idle pump shut-off)
•
Convenient top-mounted controls
•
Automatic tank fill
•
Common utility connections
•
Door safety switch
•
Door activated drain closures
•
Enclosure panels (front and sides)
•
Splash shields
•
Low-water tank heat protection
•
Rinse-saver device
•
Stainless steel heavy-gauge construction,
including base and feet
•
Electric tank heat
•
Prewash pump 1 Hp motor
•
External prewash scrap basket
•
Wash pump 2 Hp motor
•
Stainless steel pump and impellers
•
Single-point electrical connection
The DualRinse feature offers the
Lowest Water/Utility/Chemical Consumption
circulating a generous
300+ gallons of water for
Consistently Good Results
Champion Industries, Inc.
2674 N. Service Road,
Jordan Station, Ontario, Canada L0R 1S0
Tel: 800/263-5798 Fax: 905/562-4618
(1M) 9/06 Printed in U.S.A.
Project
Item No.
Quantity

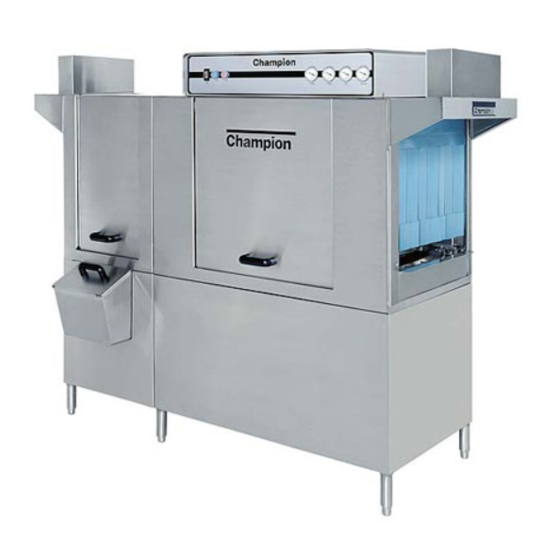

Model 66 drPW
Shown with Vent Cowl
and Damper Option
sPeciFier sTaTeMenT
Specified unit will be Champion Model 66 DRPW high
temperature dual rinse rack conveyor dishwashing
machine. Constructed of Type 304 stainless steel and
measuring 66" long with 20-3/4" vertical opening.
Features top mounted control cabinet; upper and
lower one-piece stainless steel spray arm assemblies,
removable internal scrap basket with two-piece scrap
screen, external prewash scrap basket. Large 15-1/2"
prewash and 26" wash front access doors with double-
while
hook safety latches. Anti-jam conveyor drive system.
1 year parts and labor warranty.
44" Single Tank with 22" Prewash
High Temperature Rack Conveyor
Dishwashing Machine with
Dual Stage Rinse
Champion Industries, Inc.
P. O. Box 4149, Winston-Salem, NC 27115
Tel: 800/532-8591 Fax: 336/661-1979
www.championindustries.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Champion Model 66 DRPW
Summary of Contents for Champion Model 66 DRPW
- Page 1 High Temperature Rack Conveyor Shown with Vent Cowl and Damper Option sPeciFier sTaTeMenT Specified unit will be Champion Model 66 DRPW high temperature dual rinse rack conveyor dishwashing machine. Constructed of Type 304 stainless steel and measuring 66” long with 20-3/4” vertical opening.
- Page 2 • Integrated design saves floor space less is More WiTh chaMPion’s dUal rinse Model 66 drPW Check our NSF listings and you’ll see the 44 DR offers the lowest water consumption in its class with less than .54 US gallons per rack. Water consumption this low means energy savings too. Our 40°F rise booster only requires 12 kW and 70°F rise is only 22 kW.
- Page 3 (instead of standard 20”) for larger ware Due to an ongoing value analysis program at Champion, specifications contained in this catalog are subject to change without notice. Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 • 800/532-8591 • Fax: 336/661-1979 • www.championindustries.com 2674 N.
- Page 4 High Temperature Rack Conveyor Dishwashing Machine with Dual Stage Rinse Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 • 800/532-8591 • Fax: 336/661-1979 • www.championindustries.com 2674 N. Service Road, Jordan Station, Ontario, Canada L0R 1S0 • 800/263-5798 • Fax: 905/562-4618...
- Page 5 82" 66" 66" Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 • 800/532-8591 • Fax: 336/661-1979 • www.championindustries.com 2674 N. Service Road, Jordan Station, Ontario, Canada L0R 1S0 • 800/263-5798 • Fax: 905/562-4618 Dimensions shown in inches 82"...
-
Page 6: Specifications
(by others) in common water supply line at service connection. Due to an ongoing value analysis program at Champion, specifications contained in this catalog are subject to change without notice. Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 • 800/532-8591 • Fax: 336/661-1979 • www.championindustries.com 2674 N.
