Champion Model 120 HDPW Specifications

84" two tank with heavy duty 36" prewash high temperature rack conveyor dishwashing machine
Hide thumbs Also See for Model 120 HDPW:
1
2
3
4
5
6

Advertisement

Table of Contents

STANdARd FeATuReS
• ENERGY STAR® Qualified
•
Dual-pawl cradle drive system
•
One-piece cast stainless steel upper
& lower spray arm assemblies
•
Internal removable scrap baskets with
two-piece scrap screens
•
Standard vertical opening accommodates
18" x 26" sheet pans
•
Wide 26" leakproof doors, internally-fitted
•
Anti-jam conveyor drive system
•
Energy Sentinel (Idle pump shut-off)
•
Convenient top-mounted controls
•
Automatic tank fill
•
Common utility connections
•
Door safety switch
•
Door activated drain closure
•
Enclosure panels (front and sides)
•
Splash shields
•
Low-water tank heat protection
•
Rinse-saver device
•
Stainless steel heavy-gauge construction,
including base and feet
•
Electric tank heat
•
Prewash pump 1 Hp motor
•
External prewash scrap basket
•
Wash/rinse pump 3 Hp motors
•
Stainless steel pump and impeller
•
Single point connection
2674 N. Service Road,
Jordan Station, Ontario, Canada L0R 1S0
Tel: 905/562-4195 Fax: 905/562-4618
(3M) 10/05 Printed in U.S.A.
Project
Item No.
Quantity

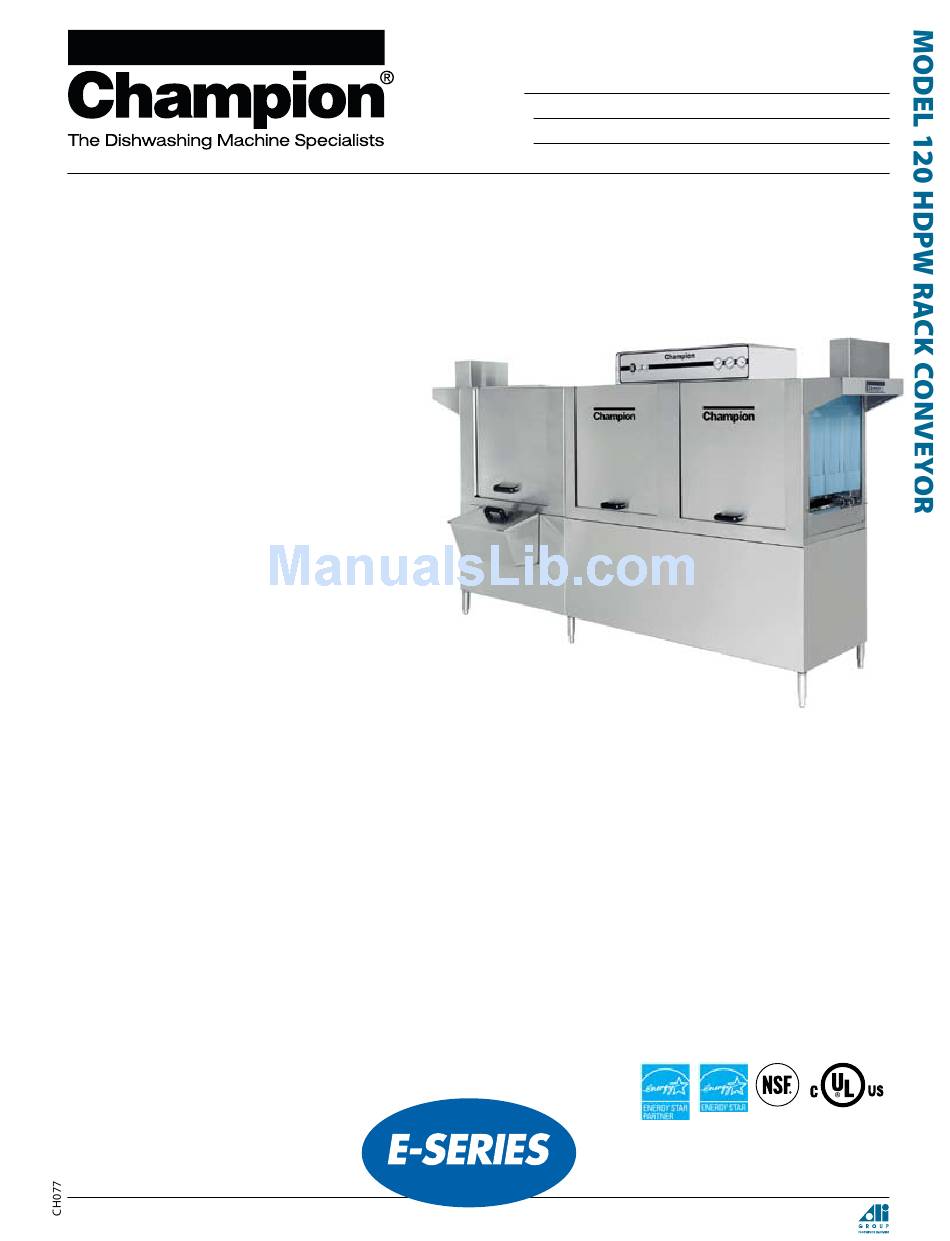

Model 120 HdPW
84" Two Tank with Heavy Duty 36" Prewash
Shown with Vent Cowl
and Damper Option
SPeCIFIeR STATeMeNT
Specified unit will be Champion Model 120 HDPW, high
temperature rack conveyor dishwashing machine with
36" prewash. Constructed of Type 304 stainless steel
and measuring 120" long with 20-3/4" vertical opening.
Features top mounted control cabinet; upper and
lower one-piece stainless steel spray arm assemblies,
removable internal scrap baskets with two-piece scrap
screens, external prewash scrap basket. Large 26"
prewash and front access doors with double-hook
safety latch. Anti-jam conveyor drive system.
1 year parts and labor warranty.
Rack Conveyor High Temperature
Dishwashing Machine
Champion Industries, Inc.
P. O. Box 4149, Winston-Salem, NC 27115
Tel: 336/661-1556 Fax: 336/661-1979
www.championindustries.com
