STANdARd FeATuReS
• One-piece cast stainless steel upper
& lower spray arm assemblies
• Internal removable scrap basket with
two-piece scrap screen
• Standard vertical opening accommodates
18" x 26" sheet pans
• Wide 15-1/2" and 26" leakproof doors,
internally-fitted
• Anti-jam conveyor drive system
• Energy Sentinel (Idle pump shut-off)
• Convenient top-mounted controls
• Automatic tank fill
• Common utility connections
• Door safety switch
• Door activated drain closures
• Enclosure panels (front and sides)
• Splash shields
• Low-water tank heat protection
• Rinse-saver device
• Stainless steel heavy-gauge construction,
including base and feet
• Electric tank heat
• Prewash pump 1 Hp motor
• External prewash scrap basket
• Wash pump 2 Hp motor
• Stainless steel pump and impellers
2674 N. Service Road,
Jordan Station, Ontario, Canada L0R 1S0
Tel: 800/263-5798 Fax: 905/562-4618
(1M) 1/08 Printed in U.S.A.
Project
Item No.
Quantity

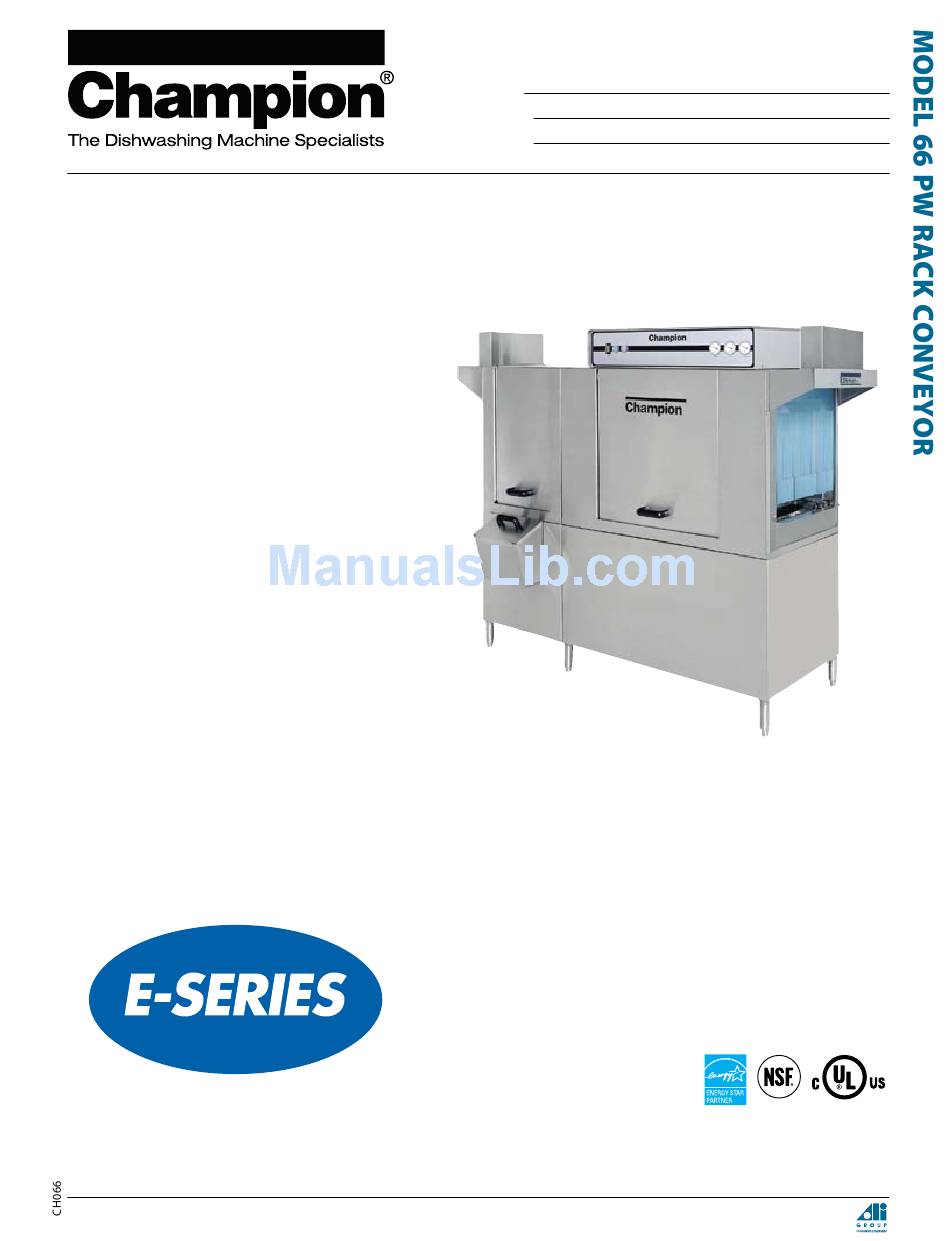

Model 66 PW
Rack Conveyor Dishwashing Machine
Shown with Vent Cowl
and Damper Option
SPeCIFIeR STATeMeNT
Specified unit will be Champion Model 66 PW high
temperature rack conveyor dishwashing machine with
22" prewash. Constructed of Type 304 stainless steel
and measuring 66" long with 20-3/4" vertical opening.
Features top mounted control cabinet; upper and
lower one-piece stainless steel spray arm assemblies,
removable internal scrap basket with two-piece scrap
screen, external prewash scrap basket. Large 15-1/2"
prewash and 26" wash front access doors with double-
hook safety latches. Anti-jam conveyor drive system.
1 year parts and labor warranty.
44" Single Tank with 22" Prewash
High-Temperature
Champion Industries, Inc.
P. O. Box 4149, Winston-Salem, NC 27115
Tel: 800/532-8591 Fax: 336/661-1979
www.championindustries.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Champion Model 66 PW
Summary of Contents for Champion Model 66 PW
- Page 1 44” Single Tank with 22” Prewash Rack Conveyor Dishwashing Machine Shown with Vent Cowl and Damper Option SPeCIFIeR STATeMeNT Specified unit will be Champion Model 66 PW high temperature rack conveyor dishwashing machine with 22” prewash. Constructed of Type 304 stainless steel and measuring 66” long with 20-3/4” vertical opening. Features top mounted control cabinet; upper and lower one-piece stainless steel spray arm assemblies, removable internal scrap basket with two-piece scrap screen, external prewash scrap basket. Large 15-1/2”...
- Page 2 • 27 kW for 40°F rise • 48 kW for 70°F rise (external) • Conductive heat transfer to wash tank • Stainless steel booster heater lasts the life of the machine • Integrated design saves floor space www.championindustries.com Model 66 PW Wall-of-Water Spray Pattern Large Heating Element Two-Piece Scrap Screen 44” Single Tank with 22” Prewash High-Temperature Rack Conveyor Dishwashing Machine One-Piece Cast Stainless Steel...
-
Page 3: Front View
Can be up to 10" 8" 1-3/4" 5/8" 2-1/4" 21" Suggested Table Construction Champion Industries, Inc., P . O. Box 4149, Winston-Salem, NC 271 Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 • 800/532-8591 • Fax: 336/661-1979 • www.championindustries.com 2674 N. Service Road, Jordan Station, Ontario, Canada L0R 1S0 • 800/263-5798 • Fax: 905/562-4618 2674 N. Service Road, Jordan Station, Ontario, Canada L0R 1S0 • 800/263-5798 • Fax: 905/562-4618 44" 8" 4" 12" Plumbing Clearance 3"... - Page 4 Can be up to 10" 8" 1-3/4" 5/8" 2-1/4" 21" Suggested Table Construction Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 • 800/532-8591 • Fax: 336/661-1979 • www.championindustries.com Champion Industries, Inc., P . O. Box 4149, Winston-Salem, NC 271 2674 N. Service Road, Jordan Station, Ontario, Canada L0R 1S0 • 800/263-5798 • Fax: 905/562-4618 2674 N. Service Road, Jordan Station, Ontario, Canada L0R 1S0 • 800/263-5798 • Fax: 905/562-4618 8" 4" 12" Plumbing 7" Clearance Cowl 89"...
-
Page 5: Specifications
Champion or obtained locally. Venting Notes: Fabricated duct size: 3-7/8” x 15-7/8” (Outside dimensions) Due to an ongoing value analysis program at Champion, specifications contained in this catalog are subject to change without notice. Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 • 800/532-8591 • Fax: 336/661-1979 • www.championindustries.com TABle B - BooSTeR CoNNeCTIoN 40°F/22°C Rise – 27kW Electric built-in booster (booster only) Minimum Maximum Supply Ckt. -
Page 6: Options And Accessories
Vent cowl, stainless steel with 7” stack and locking damper Water pressure regulating valve (unmounted) (standard with booster) Vent fan control Single point electrical connection Due to an ongoing value analysis program at Champion, specifications contained in this catalog are subject to change without notice. Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 • 800/532-8591 • Fax: 336/661-1979 • www.championindustries.com Model MRA 90 90° Motorized Rack Advance Curve (Must be ordered with...
