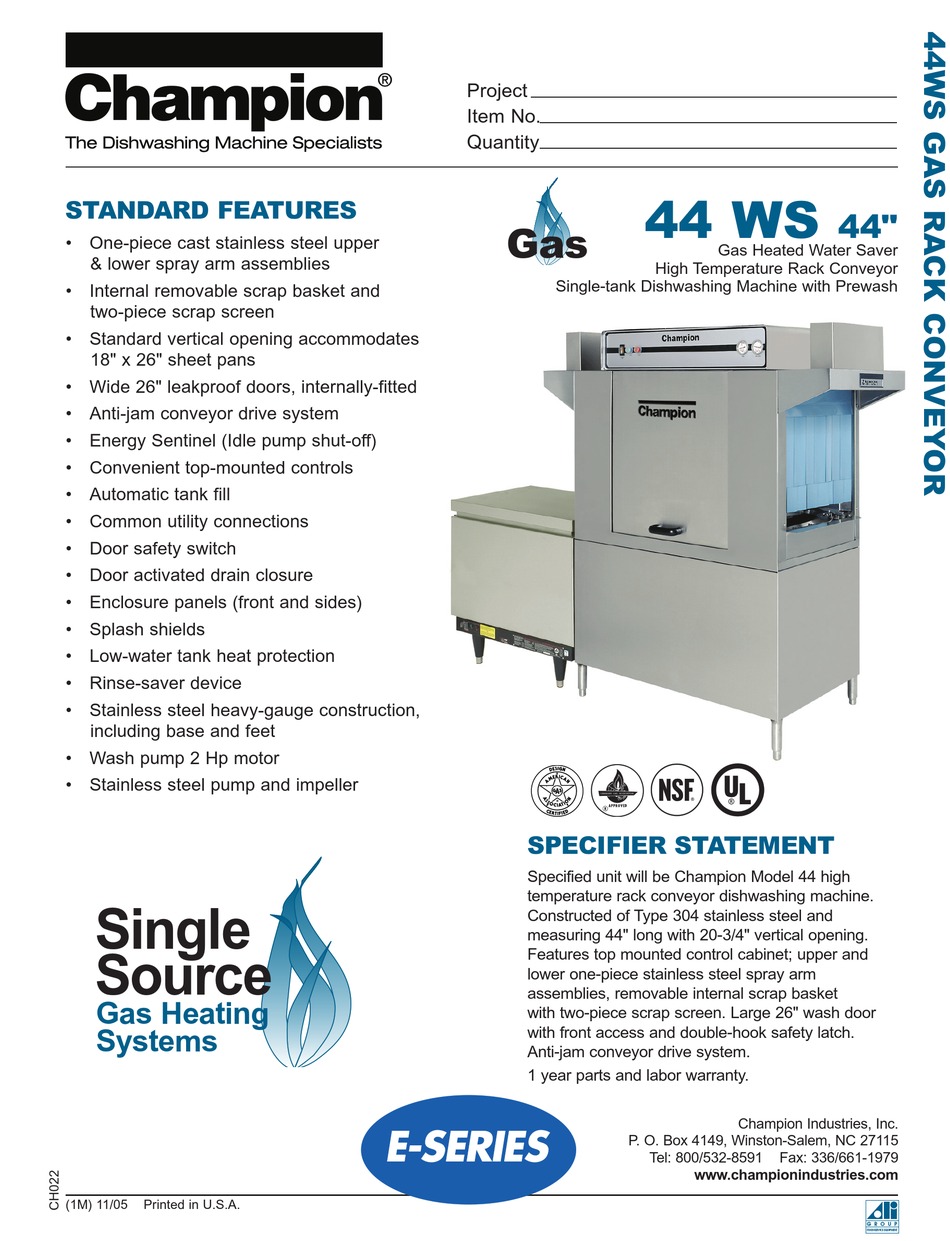

Champion Model 44 Specifications

44" gas heated water saver high temperature rack conveyor dishwashing machine with prewash
Hide thumbs Also See for Model 44:
1
2
3
4

Advertisement

Quick Links

Download this manual See also: Installation and Servicing Manual, Specification
STANDARD FEATURES
• One-piece cast stainless steel upper
& lower spray arm assemblies
• Internal removable scrap basket and
two-piece scrap screen
• Standard vertical opening accommodates
18" x 26" sheet pans
• Wide 26" leakproof doors, internally-fitted
• Anti-jam conveyor drive system
• Energy Sentinel (Idle pump shut-off)
• Convenient top-mounted controls
• Automatic tank fill
• Common utility connections
• Door safety switch
• Door activated drain closure
• Enclosure panels (front and sides)
• Splash shields
• Low-water tank heat protection
• Rinse-saver device
• Stainless steel heavy-gauge construction,
including base and feet
• Wash pump 2 Hp motor
• Stainless steel pump and impeller
Single
Source
Gas Heating
Systems
(1M) 11/05
Printed in U.S.A.
Project
Item No.
Quantity
44 WS
Gas
Single-tank Dishwashing Machine with Prewash
SPECIFIER STATEMENT
Specified unit will be Champion Model 44 high
temperature rack conveyor dishwashing machine.
Constructed of Type 304 stainless steel and
measuring 44" long with 20-3/4" vertical opening.
Features top mounted control cabinet; upper and
lower one-piece stainless steel spray arm
assemblies, removable internal scrap basket
with two-piece scrap screen. Large 26" wash door
with front access and double-hook safety latch.
Anti-jam conveyor drive system.
1 year parts and labor warranty.
P. O. Box 4149, Winston-Salem, NC 27115
Gas Heated Water Saver
High Temperature Rack Conveyor
Champion Industries, Inc.
Tel: 800/532-8591
Fax: 336/661-1979
www.championindustries.com
44"

Advertisement

loading
Need help?

Need help?

Do you have a question about the Model 44 and is the answer not in the manual?

Questions and answers

david Macias
April 18, 2025

what is the water consumption per cycle

0
1 comments:
Mr. Anderson
May 9, 2025

The water consumption per cycle for the Champion Model 44 is 5/8 gallon.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for Champion Model 44

Summary of Contents for Champion Model 44

  • Page 1 44 WS High Temperature Rack Conveyor Single-tank Dishwashing Machine with Prewash SPECIFIER STATEMENT Specified unit will be Champion Model 44 high temperature rack conveyor dishwashing machine. Constructed of Type 304 stainless steel and measuring 44" long with 20-3/4" vertical opening.
  • Page 2 3 Drain A. 1-1/2 NPT machine connection. B. T/P relief valve connection. 4 Vents (Dishwasher) (4" x 16" outside) A. Load end: 200 CFM @ 1/4" S.P. B. Unload end: 400 CFM @ 1/4" S.P. 5 Gas 3/4" NPT requires: LP Gas –...

  • Page 3: Specifications

    59-7/8" Plan View Due to an ongoing value analysis program at Champion, specifications contained in this catalog are subject to change without notice. Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 • 800/532-8591 • Fax: 336/661-1979 • www.championindustries.com 60"...
  • Page 4 24" (instead of standard 20-3/4") for large ware Due to an ongoing value analysis program at Champion, specifications contained in this catalog are subject to change without notice. Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 • 800/532-8591 • Fax: 336/661-1979 • www.championindustries.com Model MRC 180 180°...
