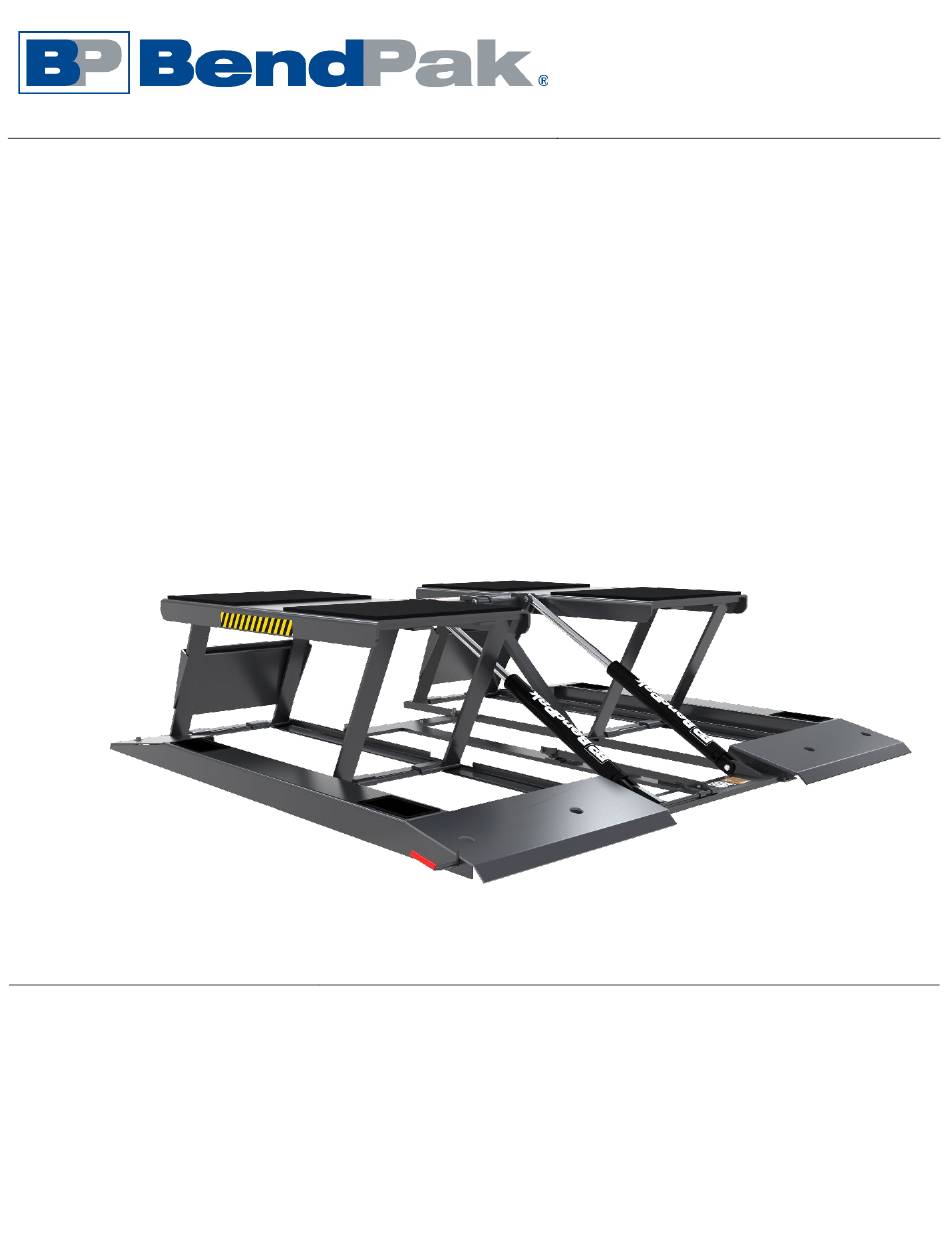

BendPak LR-10000 Installation And Operation Manual

Low-rise scissor lift
Hide thumbs Also See for LR-10000:
Table of Contents

Advertisement

Quick Links

Download this manual
Installation and Operation Manual
Manual P/N 5900075 — Manual Revision B — August 2021
Models:
• LR-10000
Designed and engineered by BendPak Inc. in Southern California, USA. Made in China.
⚠
DANGER
Low-Rise Scissor Lift
Save these instructions! Read the
before
manual
and safety precautions in this manual can result in serious injury or
death. Make sure all other operators also read this manual. Keep
the manual near the product for future reference. By proceeding
with setup and operation, you agree that you fully understand
the contents of this manual and accept full responsibility for
product use .
using this product. Failure to follow the instructions
1645 Lemonwood Dr.
Santa Paula, CA, 93060 USA
Toll Free (800) 253-2363
Tel: (805) 933-9970
bendpak.com
entire
contents of this

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LR-10000 and is the answer not in the manual?

Questions and answers

Related Manuals for BendPak LR-10000

Summary of Contents for BendPak LR-10000

  • Page 1 Installation and Operation Manual Manual P/N 5900075 — Manual Revision B — August 2021 Models: • LR-10000 Designed and engineered by BendPak Inc. in Southern California, USA. Made in China. ⚠ entire contents of this Save these instructions! Read the...
  • Page 2 Copyright. Copyright © 2021 by BendPak Inc. All rights reserved. You may make copies of this document if you agree that: you will give full attribution to BendPak Inc., you will not make changes to the content, you do not gain any rights to this content, and you will not use the copies for commercial purposes.

  • Page 3: Table Of Contents

    Technical support and service is available from your dealer, on the Web at bendpak.com/support, by email at support@bendpak.com, or by phone at (800) 253-2363, extension 196. You may also contact BendPak for parts replacement information (please have the model and serial number of your unit available) at (800) 253-2363, extension 191.

  • Page 4: Shipping Information

    • Keep hair, loose clothing, finders, and all body parts away from moving parts. • Care should be taken as burns can occur from touching hot parts. LR-10000 Low-Rise Scissor Lift P/N 5900075 — Rev. B — August 2021...
  • Page 5 Make a thorough inspection of the product at least once a year. Replace any damaged or severely worn parts, decals, or warning labels. • BendPak recommends referring to the ANSI/ALI ALIS Standard (R2015) Safety Requirements for Installation and Service for more information about safely installing, using, and servicing your Lift. Symbols Following are the symbols used in this manual: ⚠...

  • Page 6: Faqs

    A: Do remove all four of a Vehicle’s tires while it is on the LR-10000 and then lower the Vehicle all the way to the ground. It will go down, but it will have a hard time coming back up again. The Lift requires some space to build up enough upward force to raise a Vehicle.

  • Page 7: Components

    Hydraulic Cylinders. Push the Platforms up to raise a Vehicle, move down to lower a Vehicle. • Safety Locks. Hold the Platforms in place while they are raised. The LR-10000 has three Safety Lock positions, which lets you select the right Platform height for your needs.

  • Page 8: Specifications

    83.5" / 2,124 mm Overall length Maximum hydraulic pressure 2,650 PSI Lifting time ~35 seconds Motor 110 VAC, 220 VAC, 50/60 Hz, 1 Ph Specifications subject to change without notice. LR-10000 Low-Rise Scissor Lift P/N 5900075 — Rev. B — August 2021...

  • Page 9: Installation Checklist

    Installation Checklist Following are the steps needed to install your LR-10000 Lift. Perform them in the order shown. ☐ 1. Review the installation Safety Rules. ☐ 2. Plan for Electrical Work. ☐ 3. Make sure you have the necessary Tools.

  • Page 10: Installation

    Installation This section describes how to install your LR-10000. Perform the steps in the order listed. ⚠ Only use the factory-supplied parts that came with your Lift WARNING . If you use parts from a different source, you void your warranty and compromise the safety of everyone who installs or uses the Lift.
  • Page 11 Radial Shift. When you raise the Lift, the geometry of the scissor arms moves the Platforms up at an angle, towards the Hinged Ramp end of the Lift. The amount of radial shift for the LR-10000 is approximately 12 inches. Note that radial shift is always the same direction, towards the Hinged Ramp end of the Lift, no matter which way the Vehicle is facing.
  • Page 12 Note: The Power Unit Stand can be on either side of the Lift, but it must be on the Short Ramp end. Top view. Not drawn to scale. Not all components are shown. LR-10000 Low-Rise Scissor Lift P/N 5900075 — Rev. B — August 2021...
  • Page 13 The following drawing shows the Power Unit Stand on the Left side of the Lift ( Hydraulic connections as is adjustments to The following drawing shows the Power Unit Stand on the Right side of the Lift ( hydraulic connections required LR-10000 Low-Rise Scissor Lift P/N 5900075 — Rev. B — August 2021...
  • Page 14 To create the Chalk Line Guides: 1. Decide where you want to locate the Lift. 2. Create an Alignment Chalk Line where you want one end of the LR-10000; make the Alignment Chalk Line longer than the Overall Width of the LR-10000.
  • Page 15 Anchor the Bases Anchoring the Bases provides stability to hold the Vehicles you raise firmly in place. Once the Anchor Bolts are torqued into position, they are not easily removed. BendPak strongly before recommends making sure the Lift is in the correct location anchoring it into place.
  • Page 16 Anchor Bolts. Wrenching the Nut forces the wedge up, pushing out the Expansion Sleeve and pressing it tightly against the Concrete. LR-10000 Low-Rise Scissor Lift P/N 5900075 — Rev. B — August 2021...
  • Page 17 8. Move the Handle of the Safety Lock Release Handle up and back to make sure it is working. 9. Use the appropriate tools to fully tighten the Nut and the Nut Caps. LR-10000 Low-Rise Scissor Lift P/N 5900075 — Rev. B — August 2021...
  • Page 18 85-95 pound feet, using a Torque Wrench. Switching over to the Power Unit , locate the Power Unit and the supplied hardware. LR-10000 Low-Rise Scissor Lift P/N 5900075 — Rev. B — August 2021...
  • Page 19 5. Hammer or mallet the Anchor into the hole; stop hammering when the top of the Anchor is flush with the Cover; do the same for the remaining Anchors. LR-10000 Low-Rise Scissor Lift P/N 5900075 — Rev. B — August 2021...
  • Page 20 Hydraulic Hoses and Fittings on your Lift, making your new Lift inoperable. Your Lift is shipped with clean components; however, BendPak strongly recommends that you take secondary precaution and clean all Hydraulic Hoses and Fittings prior to making connections. It is better and less costly to take these extra steps now so that you do not need to take your Lift out of service later to fix issues that could have been prevented at the time of installation.
  • Page 21 If you put too much, the excess liquid will be pushed out when the Fitting is tightened; use a rag to wipe the excess. 3. Tighten the Fitting into the connector; do over tighten the Fitting. 4. Allow minimum 24 hours of curing time before pressurizing the system. LR-10000 Low-Rise Scissor Lift P/N 5900075 — Rev. B — August 2021...
  • Page 22 Elbow Hydraulic Fitting on the Power Unit; finger tighten the connection. 5. Route the Long Hydraulic Hose under the Short Ramp, as shown in the drawing above. LR-10000 Low-Rise Scissor Lift P/N 5900075 — Rev. B — August 2021...
  • Page 23 Drawing not to scale. Some components not shown, other components exaggerated for clarity. Fittings shown not connected for clarity. 8. Make sure both Hydraulic Hoses are correctly routed, then use appropriate tools to securely tighten all connections. LR-10000 Low-Rise Scissor Lift P/N 5900075 — Rev. B — August 2021...
  • Page 24 Hydraulic Fluid Reservoir with Hydraulic Fluid. The Power Unit for the LR-10000 is 208–240 VAC, 50/60 Hz, 1 phase. The Hydraulic Fluid Reservoir holds about 5.65 liters (1.5 gallons) of Hydraulic Fluid.
  • Page 25 Installing a Power Disconnect Switch be performed by a licensed, certified Electrician in accordance with national and local electrical codes. UL-listed Have your Electrician select a Power Disconnect Switch. LR-10000 Low-Rise Scissor Lift P/N 5900075 — Rev. B — August 2021...
  • Page 26 ⚠ WARNING The motor on the LR-10000 Power Unit has no thermal overload protection. Have an Electrician connect a motor Thermal Disconnect Switch or overload device that will make sure the equipment shuts down in the event of an overload or an overheated motor.
  • Page 27 Lifting Points, lower the Lift and adjust the Lift Pads so that they make better contact. 12. Gently rock the Vehicle to make sure the Vehicle is stable and balanced. LR-10000 Low-Rise Scissor Lift P/N 5900075 — Rev. B — August 2021...
  • Page 28 If the Lift was shaking, moving erratically, or squeaking, raise and lower the Lift again to help bleed the Hydraulic System. If you continue to have issues, refer to for assistance. Troubleshooting LR-10000 Low-Rise Scissor Lift P/N 5900075 — Rev. B — August 2021...

  • Page 29: Operation

    30 feet away from it. Lift Operation Safety BendPak recommends referring to the latest version of the ANSI/ALI ALIS Standard (R2015) Safety Requirements for Installation and Service for more information about safely installing, using, and servicing your Lift.
  • Page 30 The following diagram is a side view of various Safety Lock conditions. Not engaged on Safety Lock: Passing over Safety Lock: Engaged on Safety Lock: LR-10000 Low-Rise Scissor Lift P/N 5900075 — Rev. B — August 2021...
  • Page 31 10. Raise the Lift until the tires of the Vehicle are a few inches off the ground. 11. Visually check to make sure the Lift Pads are making solid contact with the Lifting Points. LR-10000 Low-Rise Scissor Lift P/N 5900075 — Rev. B — August 2021...
  • Page 32 5. Release the Lowering Handle when the Lift is fully lowered. 6. Move the Safety Lock Release Handle back to the Lowered position. 7. Carefully drive the Vehicle off. LR-10000 Low-Rise Scissor Lift P/N 5900075 — Rev. B — August 2021...

  • Page 33: Maintenance

    DANGER cannot from power and be re-energized until all maintenance is complete. BendPak strongly recommends using your Power Disconnect Switch during maintenance. If your organization has Lockout/Tagout policies, make sure to implement them during all maintenance. To maintain your Lift: •...

  • Page 34: Troubleshooting

    Hydraulic Fluid could be leaking out, lowering the Platforms). Only leave the Lift either fully lowered or engaged on a Safety Lock. If you continue to have problems with your Lift, contact your dealer, visit bendpak.com/support, email support@bendpak.com, or call (800) 253-2363, extension 196.

  • Page 35: Wiring Diagrams

    WARNING must be done by a licensed, certified Electrician Cord, in accordance with all applicable local electrical codes. Damage caused by improper electrical installation may void your warranty. LR-10000 Low-Rise Scissor Lift P/N 5900075 — Rev. B — August 2021...

  • Page 36: Labels

    Labels LR-10000 Low-Rise Scissor Lift P/N 5900075 — Rev. B — August 2021...
  • Page 37 LR-10000 Low-Rise Scissor Lift P/N 5900075 — Rev. B — August 2021...

  • Page 38: Parts Diagrams

    Parts Diagrams LR-10000 Low-Rise Scissor Lift P/N 5900075 — Rev. B — August 2021...
  • Page 39 LR-10000 Low-Rise Scissor Lift P/N 5900075 — Rev. B — August 2021...
  • Page 40 LR-10000 Low-Rise Scissor Lift P/N 5900075 — Rev. B — August 2021...
  • Page 41 LR-10000 Low-Rise Scissor Lift P/N 5900075 — Rev. B — August 2021...

  • Page 42: Ali Store

    The ALI Store is your trusted source for workplace safety! Visit today and get the training and materials you need to work safely: http://www.autolift.org/ali-store/. LR-10000 Low-Rise Scissor Lift P/N 5900075 — Rev. B — August 2021...

  • Page 43: Maintenance Log

    Maintenance Log LR-10000 Low-Rise Scissor Lift P/N 5900075 — Rev. B — August 2021...
  • Page 44 1645 Lemonwood Drive Santa Paula, CA 93060 USA © 2021 by BendPak Inc. All rights reserved. bendpak.com...
