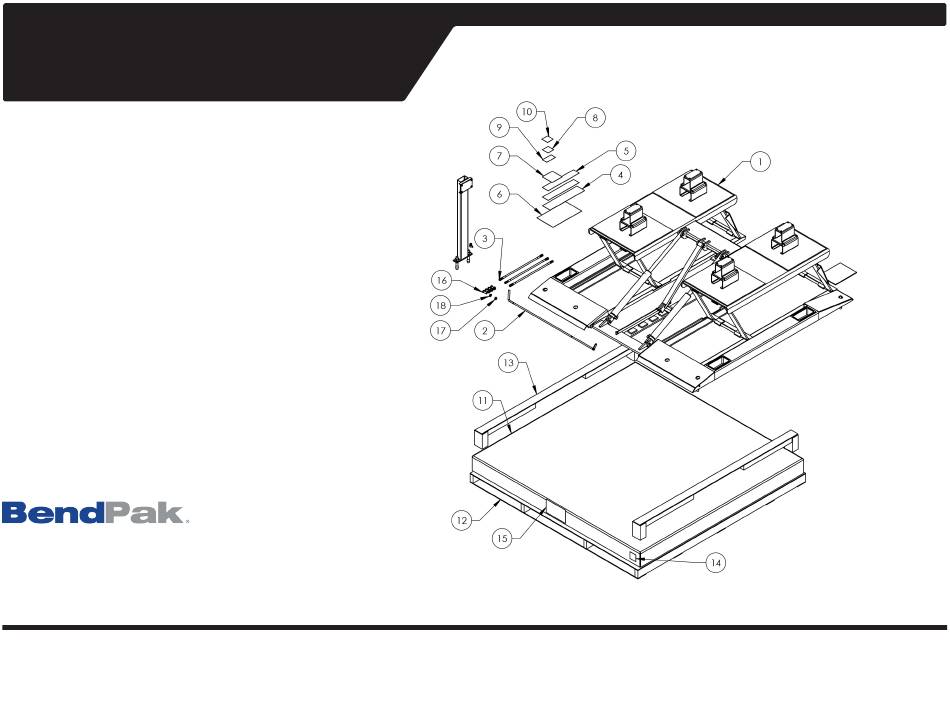

Service Manual

SERVICE PARTS & DIAGRAMS

BENDPAK

LR-5T

PRODUCT SKU

5175231

DRAWING Nº

5260184

(Pre-2022)

Need help?

Do you have a question about the LR-5T and is the answer not in the manual?

Questions and answers

Summary of Contents for BendPak LR-5T

Page 1 Bend Pak product. It provides comprehensive information on identifying serviceable parts and components and assists in troubleshooting problems and performing assembly /disassembly procedures. BendPak, Inc. Corporate Office Customer Service Desk / Warranty Parts Orders Domestic Sales & Service International Sales &...
Page 2 DWG. NO. 5260184 SEE ATTACHED LABEL PLACEMENT SHEET PROPRIETARY AND CONFIDENTIAL THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF BENDPAK INC. ANY SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING REPRODUCTION IN PART OR AS A WHOLE WITHOUT SCALE: 1:25 THE WRITTEN PERMISSION OF BENDPAK INC.
Page 3 1089 1645 LEMONWOOD DR. SANTA PAULA, CA 93060 TITLE: LR-5T PRODUCTION LIFT SIZE DWG. NO. 5260184 SCALE: 1:12 SHEET 2 OF 3...
Page 4 2124 1645 LEMONWOOD DR. 2162 SANTA PAULA, CA 93060 TITLE: LR-5T PRODUCTION LIFT SIZE DWG. NO. 5260184 SCALE: 1:15 SHEET 3 OF 3...
Page 5 PROPRIETARY AND CONFIDENTIAL SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING THE INFORMATION CONTAINED IN THIS DRAWING IS NEXT ASSEMBLY THE SOLE PROPERTY OF BENDPAK INC. ANY ASSEMBLE ITEMS AS SHOWN REPRODUCTION IN PART OR AS A WHOLE WITHOUT SCALE: THE WRITTEN PERMISSION OF BENDPAK INC. IS...
Page 6 00923 ITEM NO PART NUMBER DESCRIPTION QTY REV 5620580 LR-5T LIFT PAD EXTENSION WELDMENT 5716188 LR-5T RUBBER LIFT PAD, 100mm EXTENSION 5530022 BPHS M6 x 1 x 20 ZPL 5535357 NUT M6 x 1.0 NL DO NOT SCALE DRAWING NAME...
Page 7 5245046 SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING PROPRIETARY AND CONFIDENTIAL THE INFORMATION CONTAINED IN THIS DRAWING IS NEXT ASSEMBLY THE SOLE PROPERTY OF BENDPAK INC. ANY ASSEMBLE ITEMS AS SHOWN REPRODUCTION IN PART OR AS A WHOLE WITHOUT SCALE: 1:25 5260184 THE WRITTEN PERMISSION OF BENDPAK INC.
Page 8 5550103 FTG ELB -04 JIC -06 ORB 5550086 FTG ELB -04 NPT x -04 JIC 5570210 LR-5T HYDRAULIC HOSE ASSEMBLY Ø6.4 x 3777mm DS 5570209 LR-5T HYDRAULIC HOSE ASSY Ø6.4 x 625mm DS 5550310 FTG TEE -04JIC -04JIC -04JIC 5215592...
Page 9: Additional Contact Information
Tel: +86 534-5421821 No. 7, Taishan Rd., Industrial Park, Ningjin County, Shandong, China 2. Vendor Information (Or for Reference) Approved Vendor Vendor Part # Contact # AUTHORIZED COMPONENT PROVIDER 1) Ningjin Hydraulic Hose 5570129 +86 534-5421821 OR BENDPAK ENGINEERING APPROVED EQUIVALENT...
Page 10 FOR ITEM 1 SPECIFICATIONS REFER TO PART SPECIFICATION FORM UNLESS OTHERWISE SPECIFIED THE INFORMATION CONTAINED IN THIS DRAWING IS 5250026 THE SOLE PROPERTY OF BENDPAK INC. ANY (*)ITEM 1 QTY FOR REFERENCE ONLY REPRODUCTION IN PART OR AS A WHOLE WITHOUT SCALE: THE WRITTEN PERMISSION OF BENDPAK INC.
Page 11 FOR ITEM 1 SPECIFICATIONS REFER TO PART SPECIFICATION FORM UNLESS OTHERWISE SPECIFIED THE INFORMATION CONTAINED IN THIS DRAWING IS NEXT ASSEMBLY THE SOLE PROPERTY OF BENDPAK INC. ANY (*)ITEM 1 QTY FOR REFERENCE ONLY REPRODUCTION IN PART OR AS A WHOLE WITHOUT SCALE: 5250074 THE WRITTEN PERMISSION OF BENDPAK INC.
Page 12 EDITED BY ECO# PRODUCTION RELEASE 02/06/2018 00923 ITEM NO PART NUMBER DESCRIPTION QTY REV 5620624 LR-5T CYLINDER CLEVIS AND SAFETY WELDMENT 5620626 LR-5T BASE WELDMENT, R.H. 5620625 LR-5T BASE WELDMENT, L.H. 5620574 LR-5T HINGE ARM WELDMENT 5620572 LR-5T HINGE ARM SUBWELDMENT...
Page 13 QTY REV 5721027 LR-5T INTERIOR BASE ANGLE L.H. 5721029 LR-5T EXTERIOR BASE ANGLE L.H. 5735486 LR-5T BASE HINGE ARM STOP BAR 5701492 LR-5T BASE SIDE APPROACH RAMP, L.H. 5701256 LR-5T BASE APPROACH RAMP, L.H. 5737061 LR-5T BASE APPROACH RAMP GUSSET...
Page 14 QTY REV 5721030 LR-5T EXTERIOR BASE ANGLE R.H. 5721028 LR-5T INTERIOR BASE ANGLE R.H. 5735486 LR-5T BASE HINGE ARM STOP BAR 5701595 LR-5T BASE SIDE APPROACH RAMP, R.H. 5701257 LR-5T BASE APPROACH RAMP, R.H. 5737061 LR-5T BASE APPROACH RAMP GUSSET...
Page 15 PART SPECIFICATION FORM BENDPAK Number: 5900945 MRP Description: LR-5T INSTALLATION MANUAL Date: 02/16/2018 ECO : 00910 1. Engineering Specification Application: INSTALLATION MANUAL Detailed Description: 2. Vendor Information Approved Vendor Vendor Part # Contact # Preferred Vendor...
Page 16 PART SPECIFICATION FORM BENDPAK Number: 5905135 MRP Description: CAUTION ALI/WL 300CSW Date: 12/28/2010 ECO : 00431 1. Engineering Specification Application: ALI SCISSOR LIFT STICKER Detailed Description: 2. Vendor Information Approved Vendor Vendor Part # Contact # Preferred Vendor...
Page 17 PART SPECIFICATION FORM BENDPAK Number: 5905176 MRP Description: WARNING TO PROLONG LIFE Date: 10/24/2014 ECO : 00654 1. Engineering Specification Application: SCISSOR CYLINDER WARNING Detailed Description: SIZE: 3” L x 3” W (76mm x 76mm)  Material: White Vinyl Pressure Sensitive Adhesive ...
Page 18 PART SPECIFICATION FORM BENDPAK Number: 5905204 MRP Description: BENDPAK LABEL Date: 09/16/2015 ECO : 00715 1. Engineering Specification Application: BENDPAK LABEL Detailed Description: Material: Clear Adhesive PET Size: 16”W x 3”H Thickness: 4 Mil Finish: Polished Ink: U.V. protected, Opaque White Print Process: Silk Screen, 85 line-screen (YELLOW color in file represents what should be clear PET material and SHOULD NOT print as YELLOW ink.
Page 19 PART SPECIFICATION FORM BENDPAK Number: 5905285 MRP Description: SERIALTAG EXTERIOR PEEL OFF INVENTORY LABEL Date: 04/20/2016 ECO : 00739 1. Engineering Specification Application: DATA SERIAL TAG Detailed Description: SIZE: 3” L x 3” W (76mm x 76mm) 2. Vendor Information...
Page 20 PART SPECIFICATION FORM BENDPAK Number: 5905465 MRP Description: MANUFACTURER LABEL Date: 05/07/2013 ECO : 00593 1. Engineering Specification Application: MANUFACTURER LABEL Detailed Description: SIZE: 5.125” L x 5.125” W (130mm x 130mm) 2. Vendor Information Approved Vendor Vendor Part #...
Page 21 PART SPECIFICATION FORM BENDPAK Number: 5905720 MRP Description: LR-5T WARNING INSTRUCTION Date: 07/22/2013 ECO : 0061 1. Engineering Specification Application: LLR-5T OPERATION INSTRUCTIONS Detailed Description: SIZE: 4” L x 17.75” W (102mm x 451mm) 2. Vendor Information Approved Vendor Vendor Part #...
Page 22: Product Data Label
PART SPECIFICATION FORM BENDPAK Number: 5905940 MRP Description: PRODUCT DATA LABEL Date: 05/06/2013 ECO : 00593 1. Engineering Specification Application: PRODUCT DATA LABEL Detailed Description: SIZE: 2.3” L x 4.5” W (58mm x 114mm) 2. Vendor Information Approved Vendor Vendor Part #...
Page 23 ECO : 00857 1. Engineering Specification Application: DATA SERIAL TAG Detailed Description: SIZE: 3” L x 3” W (76.2mm x 76.2mm) 2. Vendor Information (Or for Reference) Approved Vendor Vendor Part # Contact # Preferred Vendor OR BENDPAK ENGINEERING APPROVED EQUIVALENT...
Page 24: Packaging Label
• Ink: U.V. protected CMYK 4/C Process • Print Process: Offset Lithography - 200 line-screen or 300 p.p.i. for digital 2. Vendor Information (Or for Reference) Approved Vendor Vendor Part # Contact # Preferred Vendor OR BENDPAK ENGINEERING APPROVED EQUIVALENT...
Page 25 LR-5T Product Decal Positioning 1645 Lemonwood Dr., Santa Paula, CA 93060 • TEL: 805-933-9970 • www.bendpak.com • EnginEErED by bEnDPAk USA • MADE in ChinA Hazard Decals on left and right side of the platforms LR-5T_BendPak_Cylinder_Decal.pdf: Clear PET material and...
Page 26 LR-5T Product Decal Positioning...
