Camera Processing Chain; Supported Industry Standards; Genicam; Figure 16: Digital Data Processing Chain - Dalsa Linea HS Series User Manual

Camera Processing Chain

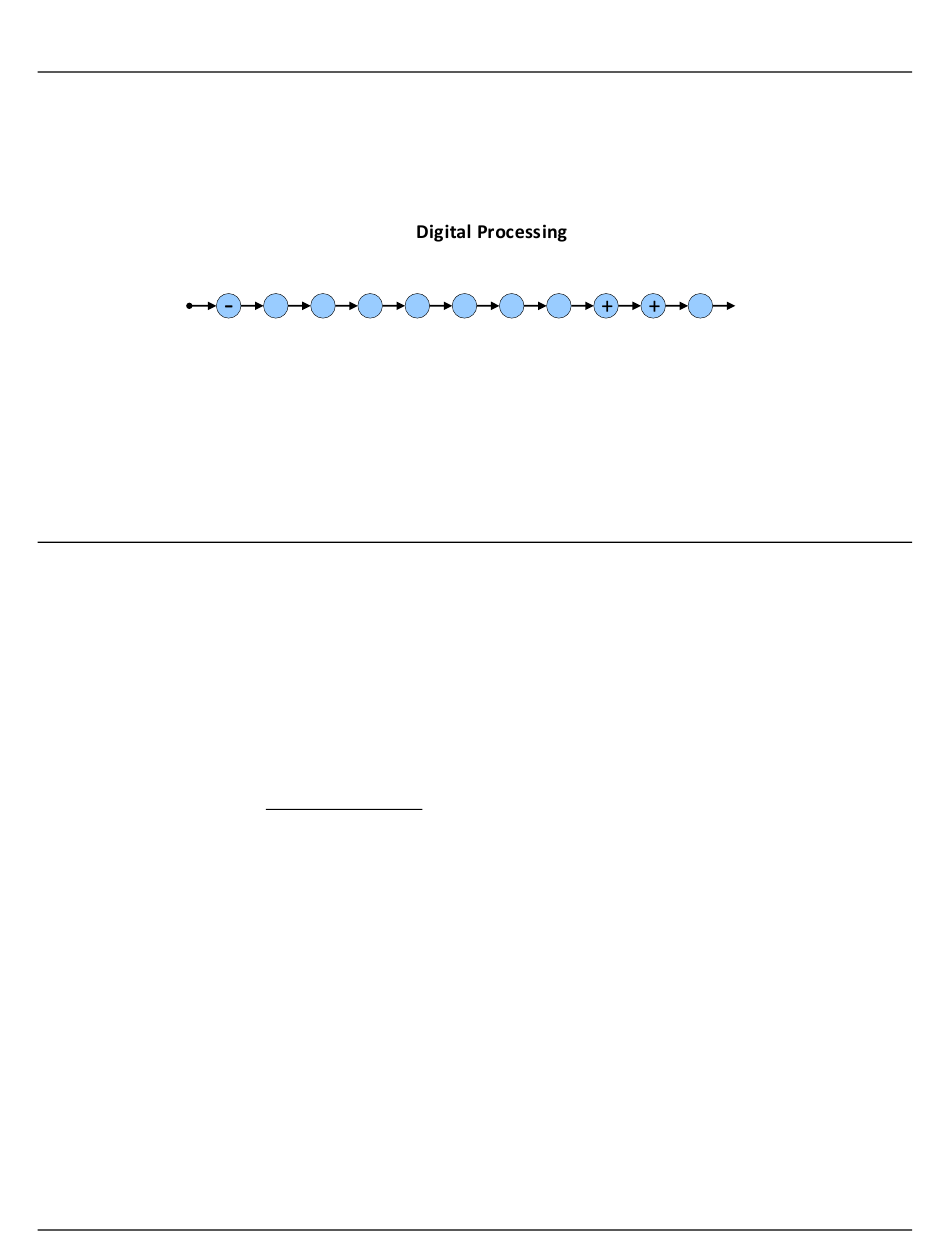

The diagram below details the sequence of user-adjustable, arithmetic operations performed on the
camera sensor data. These adjustments are using camera features outlined in the 'Review of
Camera Performance and Features' section.
video
user
FPN

Supported Industry Standards

GenICam™

The camera is GenICam compliant and implements a superset of the GenICam Standard Features
Naming Convention specification V1.5.
This description takes the form of an XML device description file using the syntax defined by the
GenApi module of the GenICam specification. The camera uses the GenICam Generic Control
Protocol (GenCP V1.0) to communicate over the Camera Link HS command lane.
For more information see www.genicam.org.
32 • Linea HS Series Cameras
system
flat field
gain
correction
+/-
X X X
gain
black
level
(offset)
Figure 15: Digital data processing chain
horizontal
filter
+/-
X
EOI EOI vertical
offset gain binning
Linea HS Series Camera User's Manual
binning
output
video
LUT
