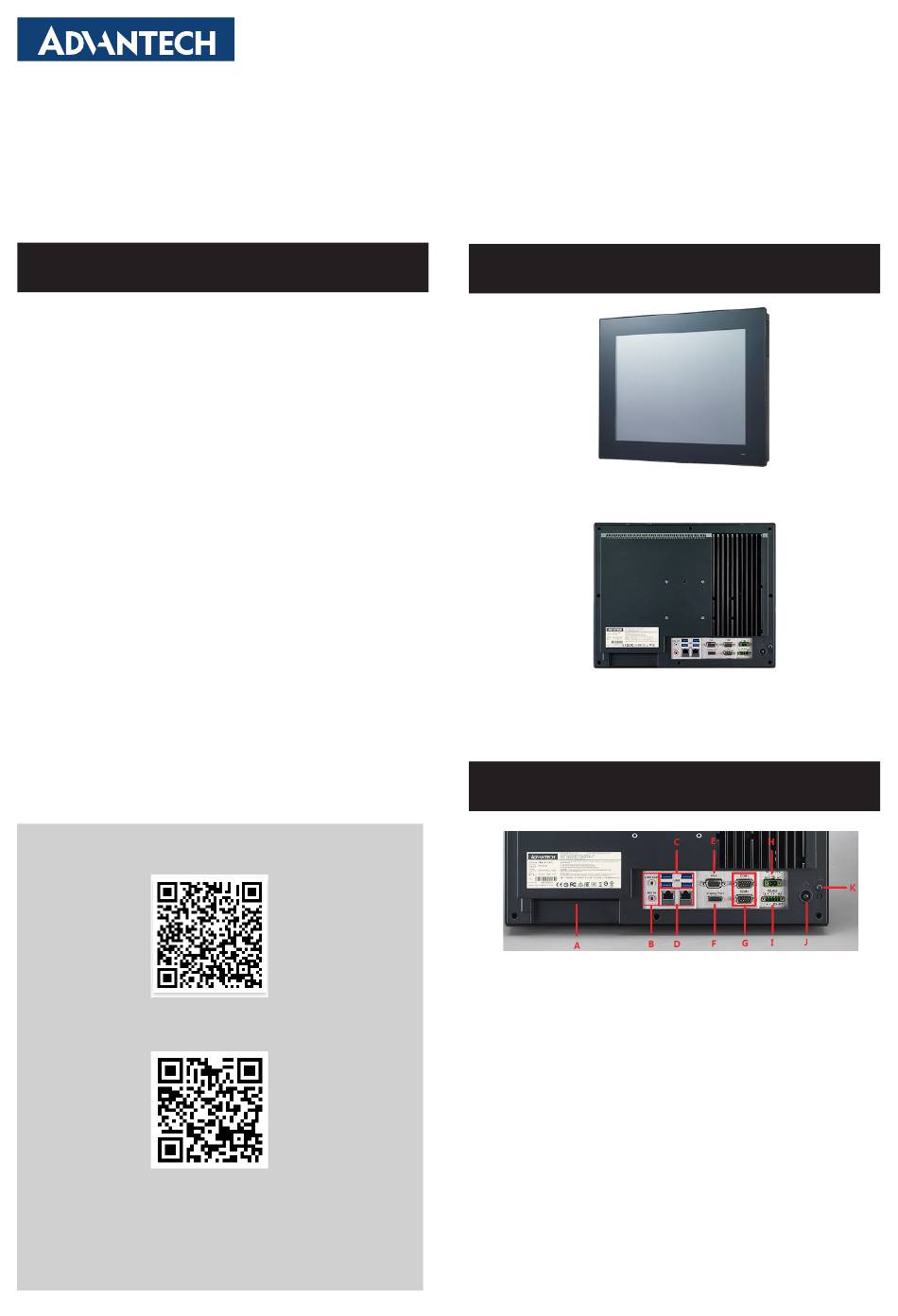

PPC-3151-650AE 15”Panel PC with TFT LCD and 6th Gen Intel Core Series Processor ® Startup Manual Packing List Layout Before installation, ensure that the following items are included with the product: 1. 1 x Panel PC 2. 1 x startup manual 3.
Operating random vibration test, 5 ~ 500Hz, 1Grms with HDD; 2Grms with SSD, Vibration following IEC 60068-2-64 Safety: CB, UL, CCC, BSMI Safety and EMC EMC: CE, FCC Class B, BSMI * Test conditions of power consumption for PPC-3151-650AE 2 PPC-3151-650AE Startup Manual...
1. Prepare a panel cutout according to the panel PC dimensions. (PPC-3151-650AE cutout dimensions: 382 x 303 mm/15.04 x 11.93 in) 2. Install the panel PC in the cutout. Retrieve the 10 hook brackets and M6 x 21L screws from the accessory box.
17. In accordance with the IEC 704-1:1982 specifications, the sound pressure level at the operator’s postion does not exceed 70 dB (A). Conformément aux spécifications de l’IEC 704-1:1982, le niveau de pression acoustique à la position de l’opérateur ne dépasse pas 70 dB (A). 4 PPC-3151-650AE Startup Manual...
Page 5
UL ou CC pour l’utilisation à une température de 50 °C au minium, et la sortie nominale est 9 ~ 32 V , 10-3A min., ES1 (ou SELV). Si vous avez besoin d’aide supplémentaire, veuillez contacter Advantech pour plus d’informations.
Page 6
PPC-3151-650AE 配备 15” TFT LCD 显示屏和第六代英特尔 酷睿 系列处理器的无风扇平板电脑 ® 快速入门手册 包装清单 系统I/O接口 安装系统之前,用户需确认包装中含有下面所列各项: 1 x PPC系统 1 x PPC-3151 快速入门手册 2 x 绿色凤凰接头 10 x 面板安装铁件&螺丝 如果其中任何一项缺失或损坏,请立即与经销商或销售代 表联系。 A: 4 x 扩展卡槽PCI/PCIe B: 1 x 线路输出/ 麦克输入 产品外观 C: 4 x USB 3.0 D: 2 x 千兆以太网...
Page 7
10G 峰值加速度(持续时间 11ms), 符合IEC 60068-2-27标准 5 ~ 500 Hz, 1Grms搭配HDD; 2Grms搭配 SSD, 符合IEC 60068-2-64标准 振动 尺寸 391.4 x 312.5 x 55.35 mm/15.41 x 12.3 x 2.18 in 重量 5.4 kg/11.90 lb EMC认证 CE, FCC Class B, BSMI 安全认证 CB, UL, CCC 2 PPC-3151-650AE快速入门手册...
