Summary of Contents for SoftBank Whiz

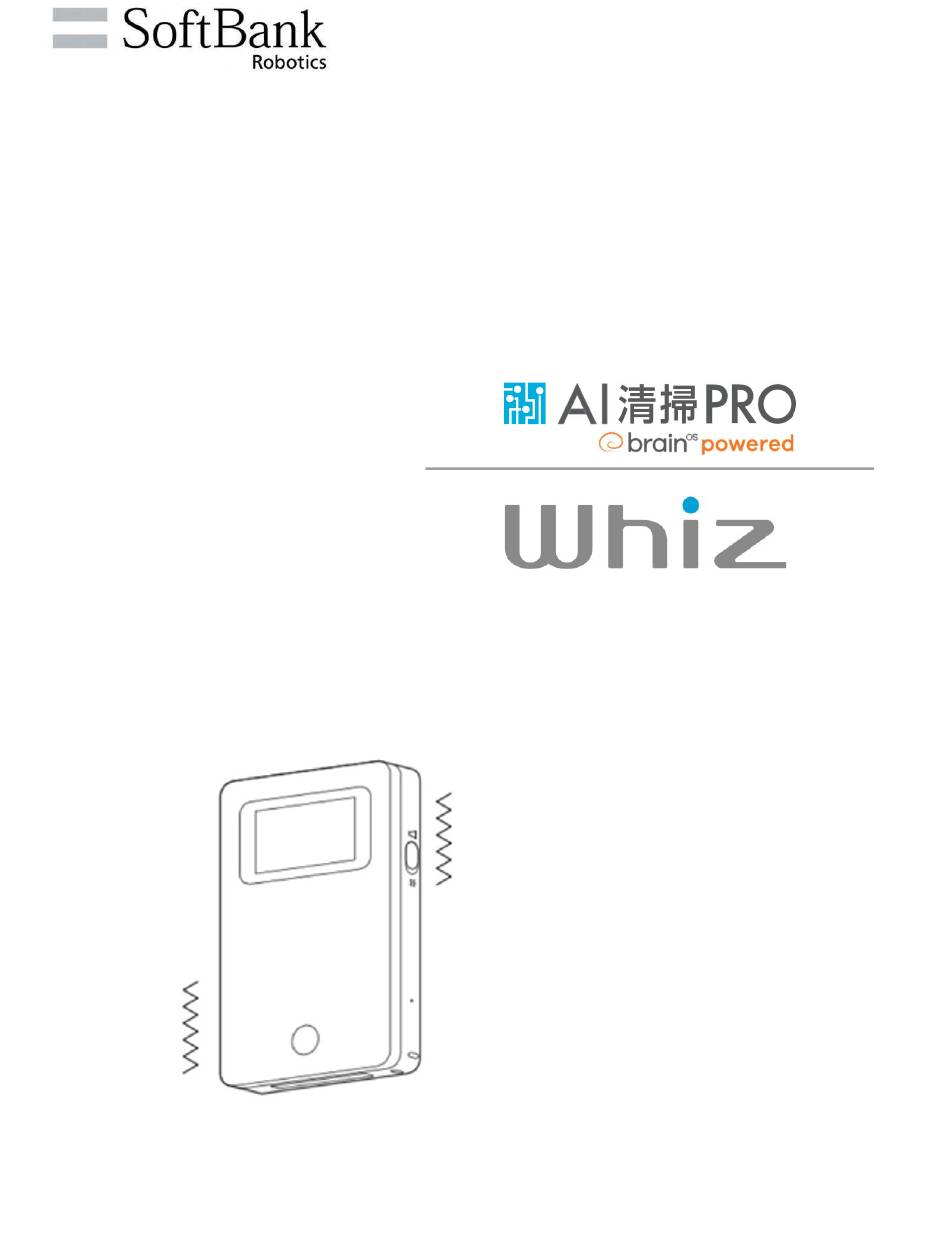

- Page 1 Notification Pager Manual...
- Page 2 Notification Pager Notification Pager Functions Notification pager will notify the operator (Sound/Vibration) when irregular occur during autonomous cleaning or when the machine encounters obstacles. When using the notification pager for the first time, please take the pager out of the battery box and charge the pager.
- Page 3 Notification Pager Functions & Usage When the machine detects danger or detects an obstacle, an alert will be displayed on the notification pager(⇒see "Alert display and its notification timing")and it notifies the operator by emitting an alert and vibrating. It emits an alert and vibrates for 15 seconds then stops for 5 seconds, which it repeats for 10 minutes.
- Page 4 Alert display and its notification timing Appearing on display Description Appearing on display Description Standby (within the communi Autonomous cleaning complet cation range/paired) Machine battery level low No machine battery remainin Dustbag full Connected for wireless comm unication Connection for wireless com Error alert ・When danger has been munication not possible...
- Page 5 Turning the Notification Pager On/Off When using the notification pager for the first time, use the supplied pin to turn the power On. Turning the Notification Pager On Insert the supplied pin in the power button on the side of the notification pager Keep the inserted pin pressed until the notification pager vibrates.
- Page 6 Turning the Notification Pager Off Insert the supplied pin in the power button on the side of the notification pager The display goes out. Press the pager main button, and check that nothing appears on the display...
- Page 7 Paring the Notification Pager In order to receive the alert on the notification pager, the pager must be paired with the machine itself. Turn On the notification pager and the machine Check if the machine is connected to the Robot Operations Center (ROC) ...
- Page 8 Press the button on the notification pager for at least 5 seconds The message "Wireless connection in process" will be shown on the pager's display. Attach the pager on to the pager holder on the side of the machine Carry out autonomous cleaning and check if you will recieve the alerts (⇒see "Carrying Out Autonomous Cleani ng").
- Page 9 Recharging the Notification Pager If notification pager battery is running low, charge the pager fully before using it. Insert the Micro USB plug on the cable in the terminal on the back of the notification pager charger Connect the USB plug on the cable in the USB AC adapter, and plug the adapter into an outlet ...
-
Page 10: Safety Precautions
Precautions presented here are intended to prevent harm to the user and other persons as well as damage to property. Always observe them. SoftBank Robotics shall not be liable for any damages incurred by the user or any third person as a result of the malfunctioning, mis operation, trouble, etc. -
Page 11: Description Of Symbols
Description of Symbols The following symbol categories explain the level of harm or damage that will occur if indications are not observed and equipment is used incorrectly. Read the guide after thoroughly understanding the indications. Indicates a “probability of immediate danger of death or serious injury* ”... - Page 12 Handling the Notification Pager DANGER Do not drop or throw. Subjecting it to strong impact may cause the battery pack in the notification pager to leak, overheat, rupture, or ignite, and may cause fire, electric shock, malfunction, etc. WARNING Do not place the notification pager or notification pager charger in a cooking device (microwave oven , etc.) or high-pressure container (pressure cooker, etc.), or on top of an electromagnetic cooking dev ice (IH cooktop).
- Page 13 Pictorial Symbols Refer to the labels on each product (the machine, battery charger, battery). Each is compliant with the Japanese Incorporates a specified wireless system Electri cal Appliances and Material as defined by Japanese law (TELEC or Safety Act (Spec ified Electrical JATE-cer tified).
- Page 14 FCC ID: 2ATI9-P00000401A01 Specific Absorption Rate (SAR) During SAR testing, this device was set to transmit at its highest certified power level in all tested frequency bands, and placed in positions that simulate RF exposure in usage, and near the body with the separation of 0.0 inches (0 mm).
- Page 15 This equipment is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. Frequency bands and power Bands Frequency Max.Power Limit (dBm) 865-868MHz Lora ≤ 14 This product can be used across EU member states. Softbank Robotics corp.
