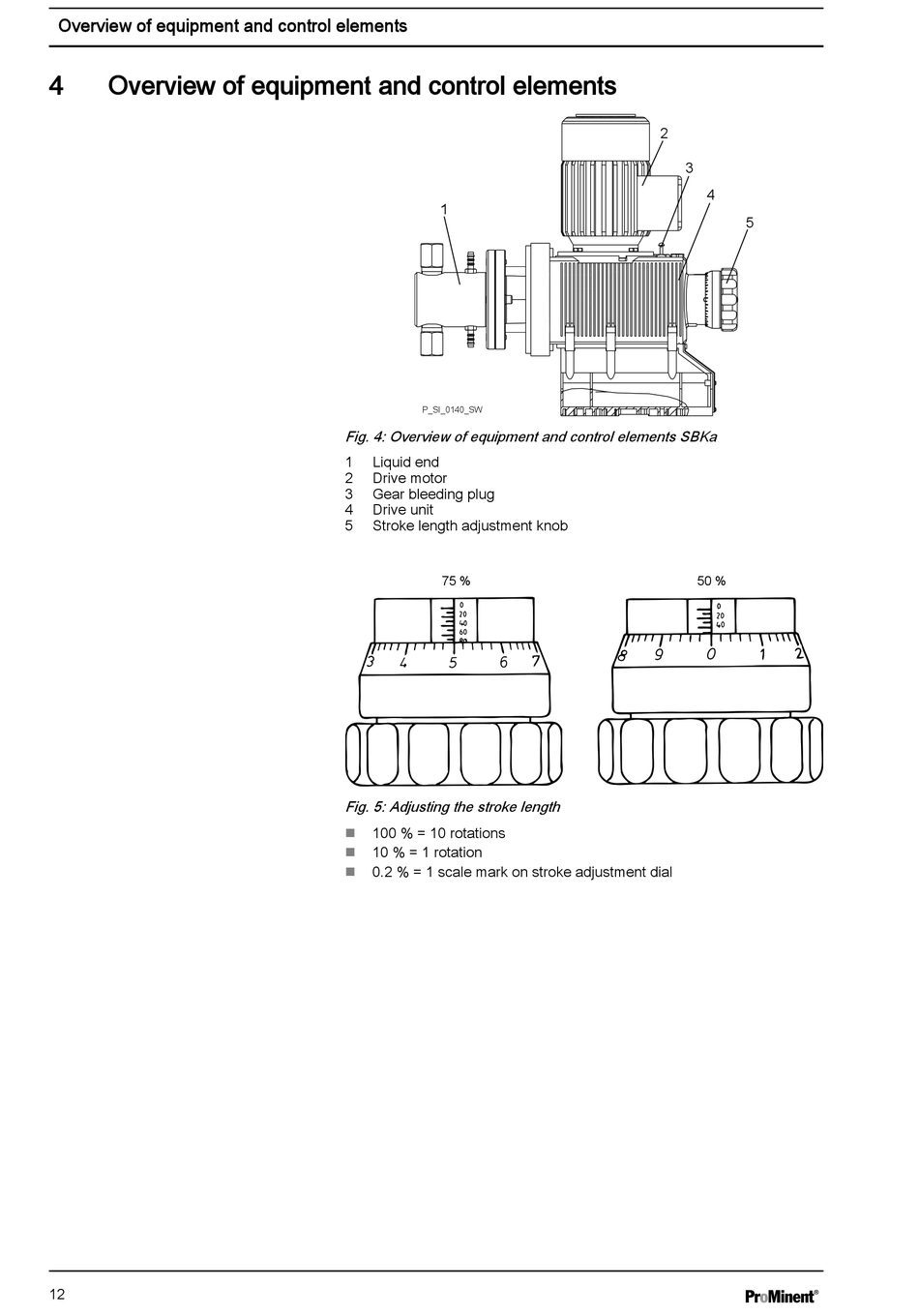

Overview of equipment and control elements

4 Overview of equipment and control elements
12
1
P_SI_0140_SW
Fig. 4: Overview of equipment and control elements SBKa
1 Liquid end
2 Drive motor
3 Gear bleeding plug
4 Drive unit
5 Stroke length adjustment knob
75 %
Fig. 5: Adjusting the stroke length
100 % = 10 rotations
n
10 % = 1 rotation
n
0.2 % = 1 scale mark on stroke adjustment dial
n
2
3
4
5
50 %
