Coupling for ISO 9409-1-40-4-M6

Bolt pattern for coupling GRP-CPL-064 (refer to the Spare Parts, Kits and Accessories section) is compatible with :

40 mm pitch circle diameter :

(4) M6-1.0 low head socket cap screw clearance

(1) M6 dowel pin

ISO 9409-1 standard 40-4-M6

2F-85 & 2F-140 - Instruction Manual

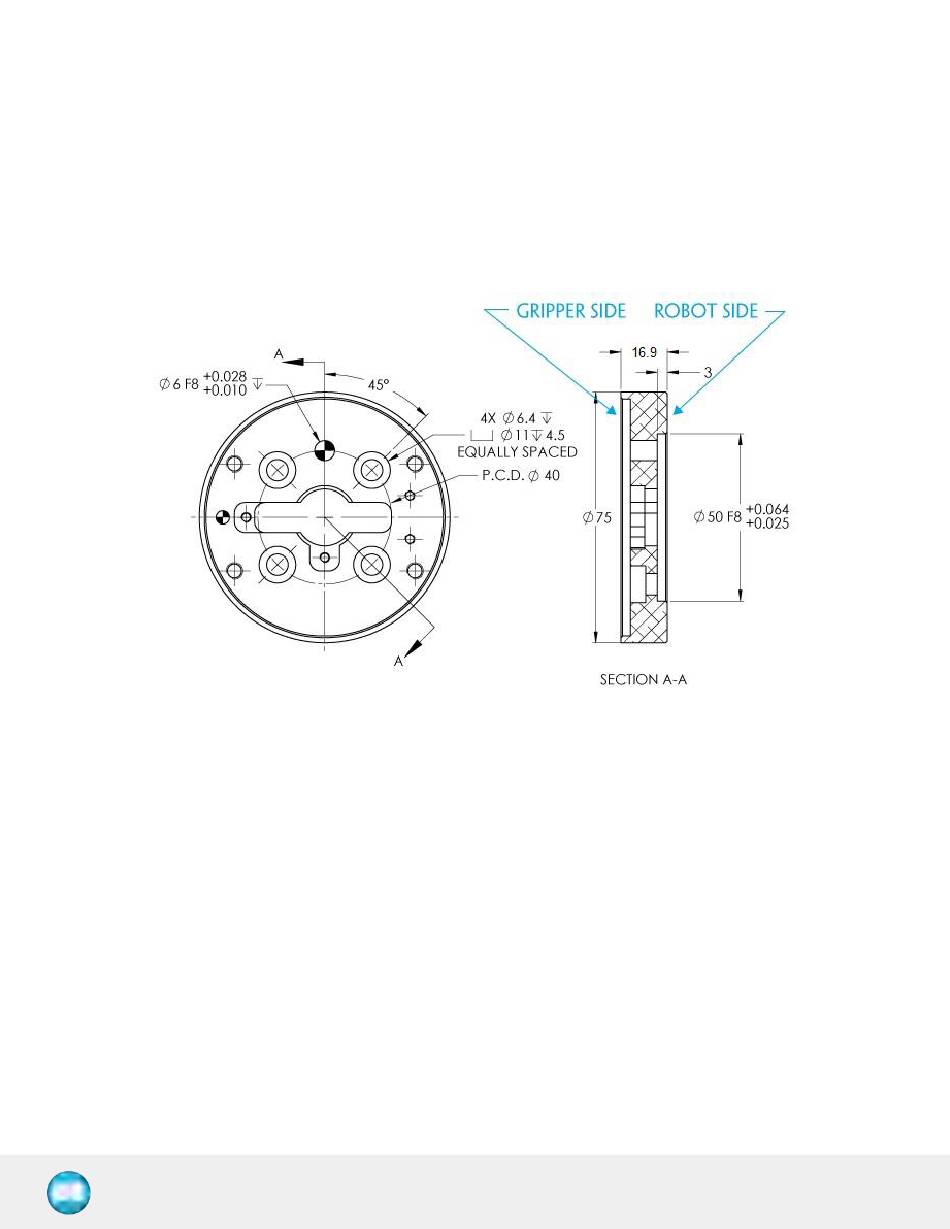

Fig. 5-8: Coupling for ISO 9409-1-40-4-M6.
