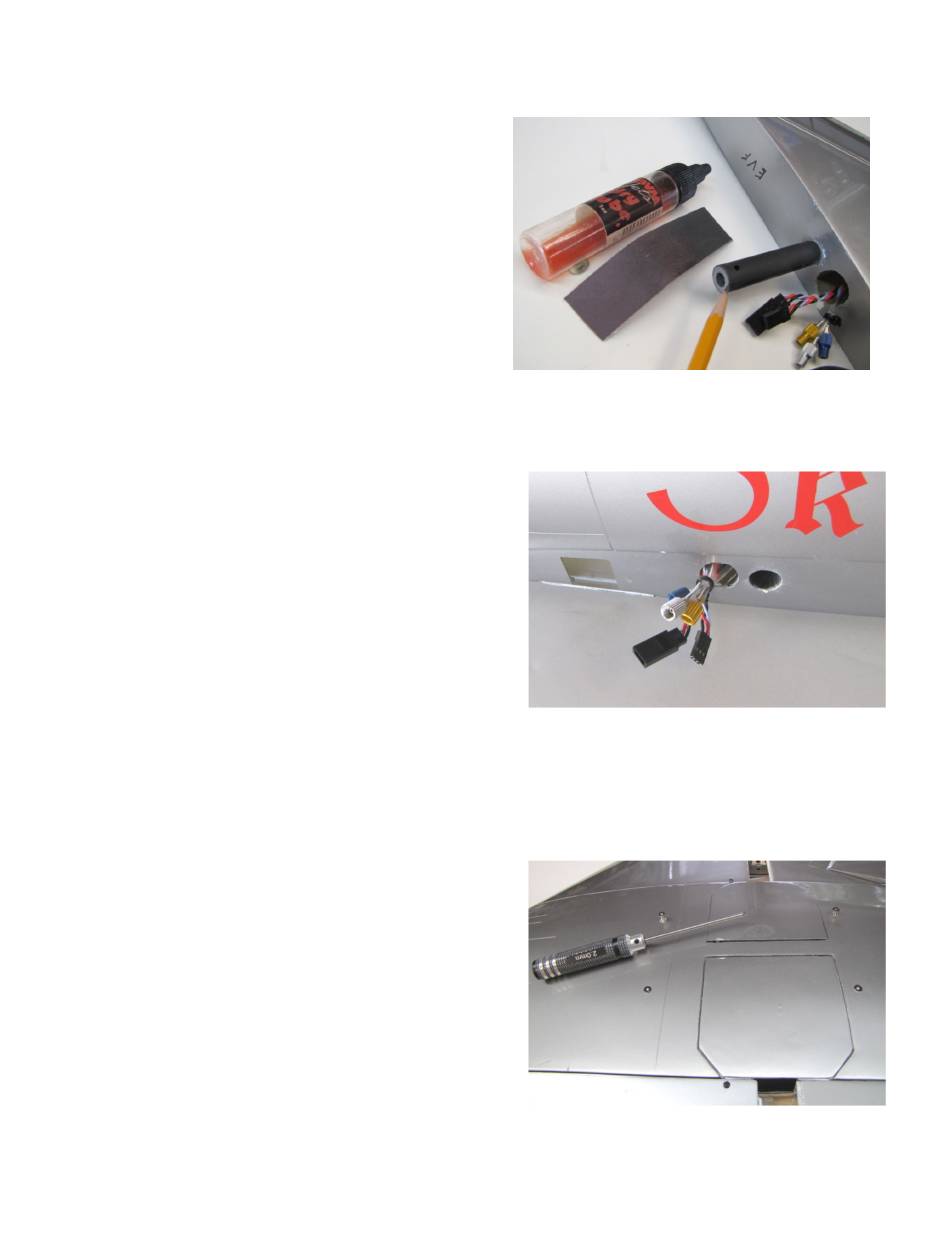

WING SPAR AND CONNECTORS
To ease the wing attachment, slightly bevel the
ends of the carbon rods with sand paper (320
grit) then apply BVM Dry Lube (#1947) to the
rods.
Put a small tie wrap on the connectors to keep
them from falling into the wing
FUSELAGE / WING MATING SURFACES
Be sure that they have a small tie wrap on each
set as shown. This will keep them from getting lost
in the fuse. Small forceps can be used to retrieve
them if necessary.
The electrical and pneumatic connectors exit the
fuse as shown.
WING MOUNTING
The wings are retained to the fuse with (2) 3mm X
25mm front and (2) 3mm X 16mm screws at the
rear. Use a 2.0 mm hex wrench.
