Rx Mounting And Gyro - BVM PNP F-86 Construction And Operating Manual

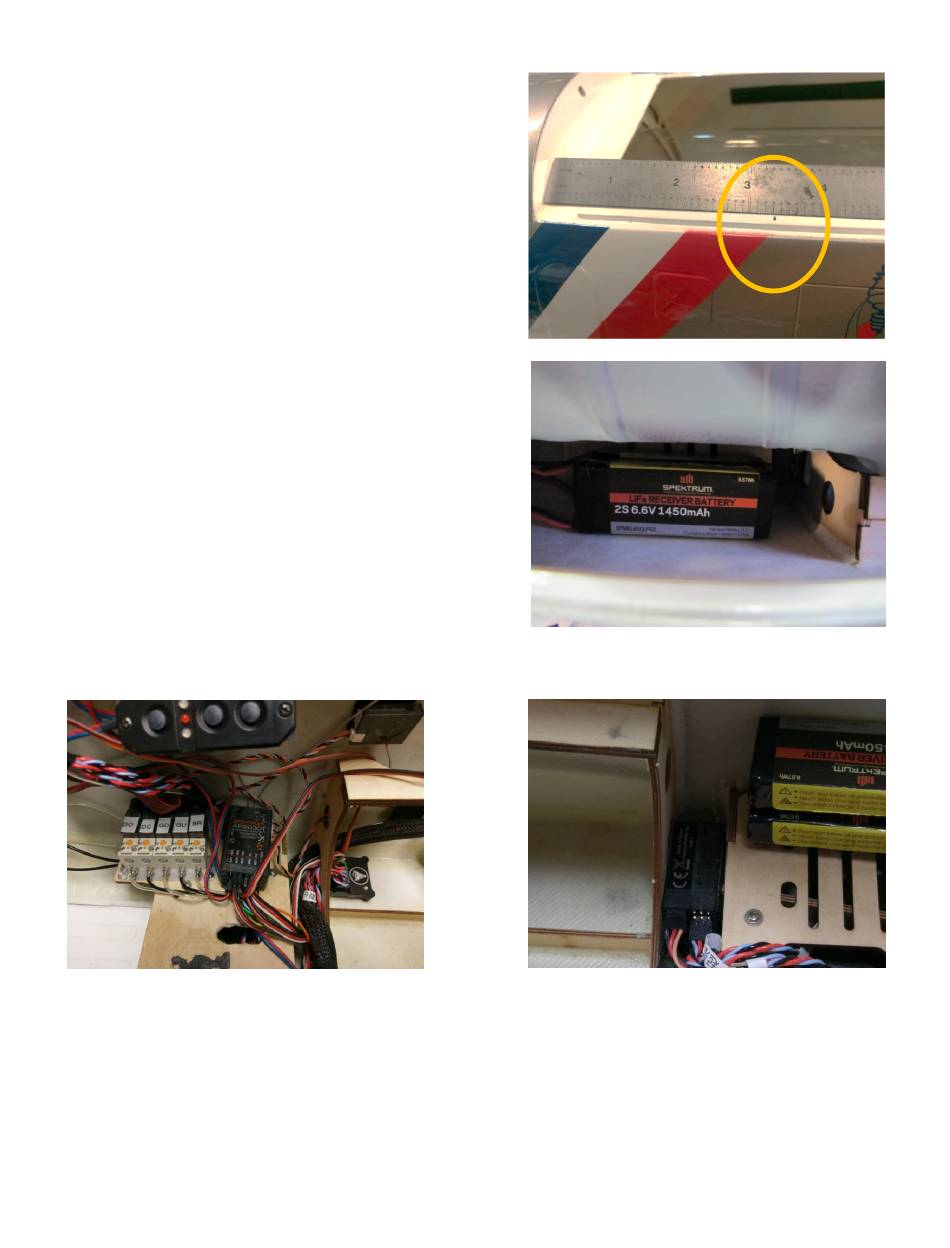

NOTE: 3.3" dimension (circled)
. This is a good starting point for the EVF Batteries.
Your Center of Gravity can be fine-tuned aft or
forward of this position with EVF Battery placement
RX BATTERY LOCATION
Located on the left side of the fuse in front of the
fan mount

RX MOUNTING AND GYRO

This example on a BVM plane used a regular Spektrum 9030 Rx and a X-plus expander.
You can find the Rx channel mapping under Connecting Rx wires later in this manual.
NOTE: These components are constantly changing, adapt as necessary.
