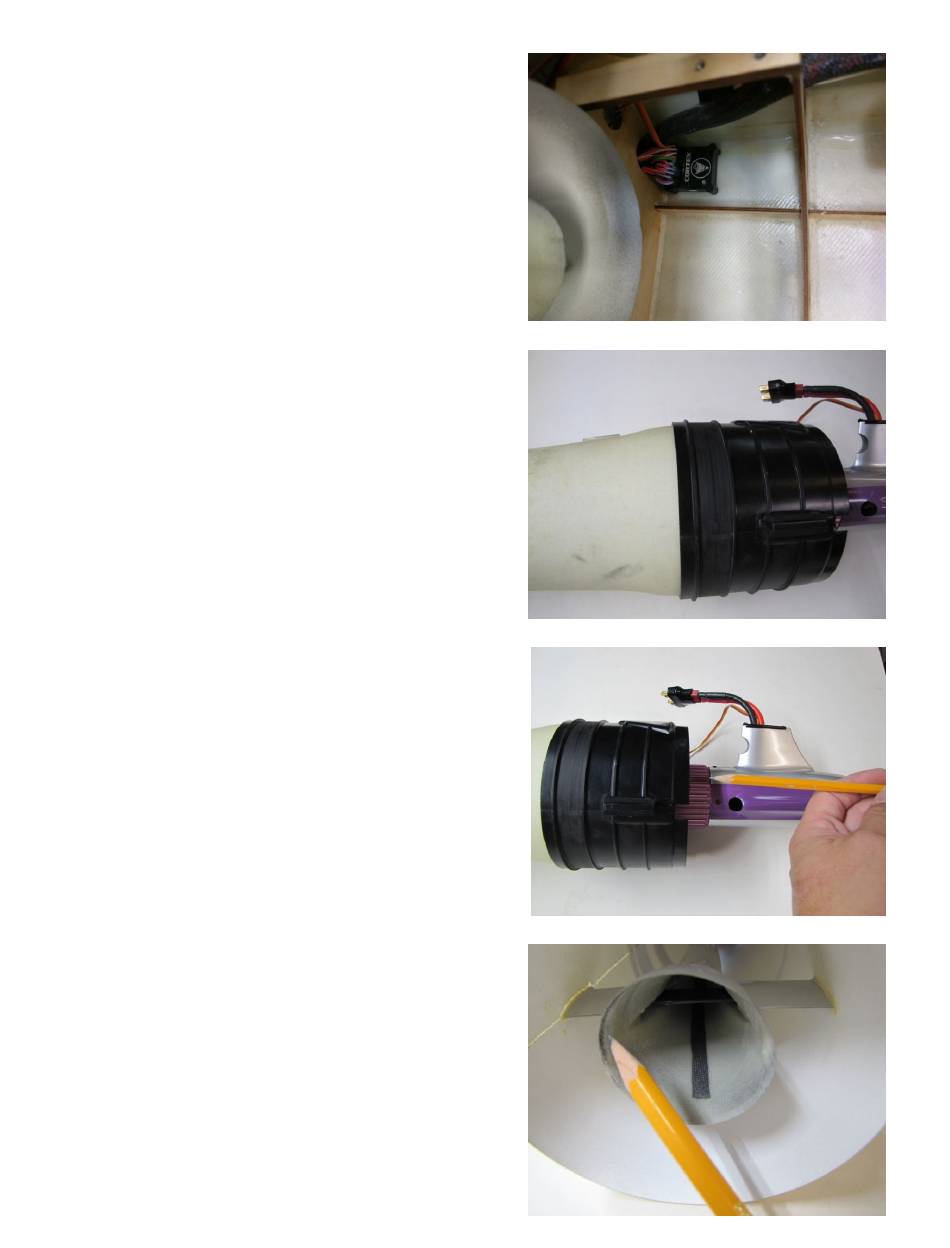

We Used the Demon cortex gyro on the demo
model. Located on the right side of the model,
under the fan mount. The cortex gyro will come with
its own wire harness to hook up to the Rx. Follow
mounting and wire diagram from Demon.
NOTE: Gyro technology is also changing
constantly, adapt as needed.

INTAKE AND EVF INSTALLATION

Before installing the intake, insert the intake into the
fan and check for rubbing of the spinner or the fan
on the intake spike..
You can use a pencil or a wood dowel to spin the
rotor to check for rubbing.
If the spinner is rubbing on the spike you can use a
sanding block to remove the flange on the back of
the spike
NOTE: On the first run up go slowly and listen for
any indication of rubbing If you hear anything stop
and repeat this step.
