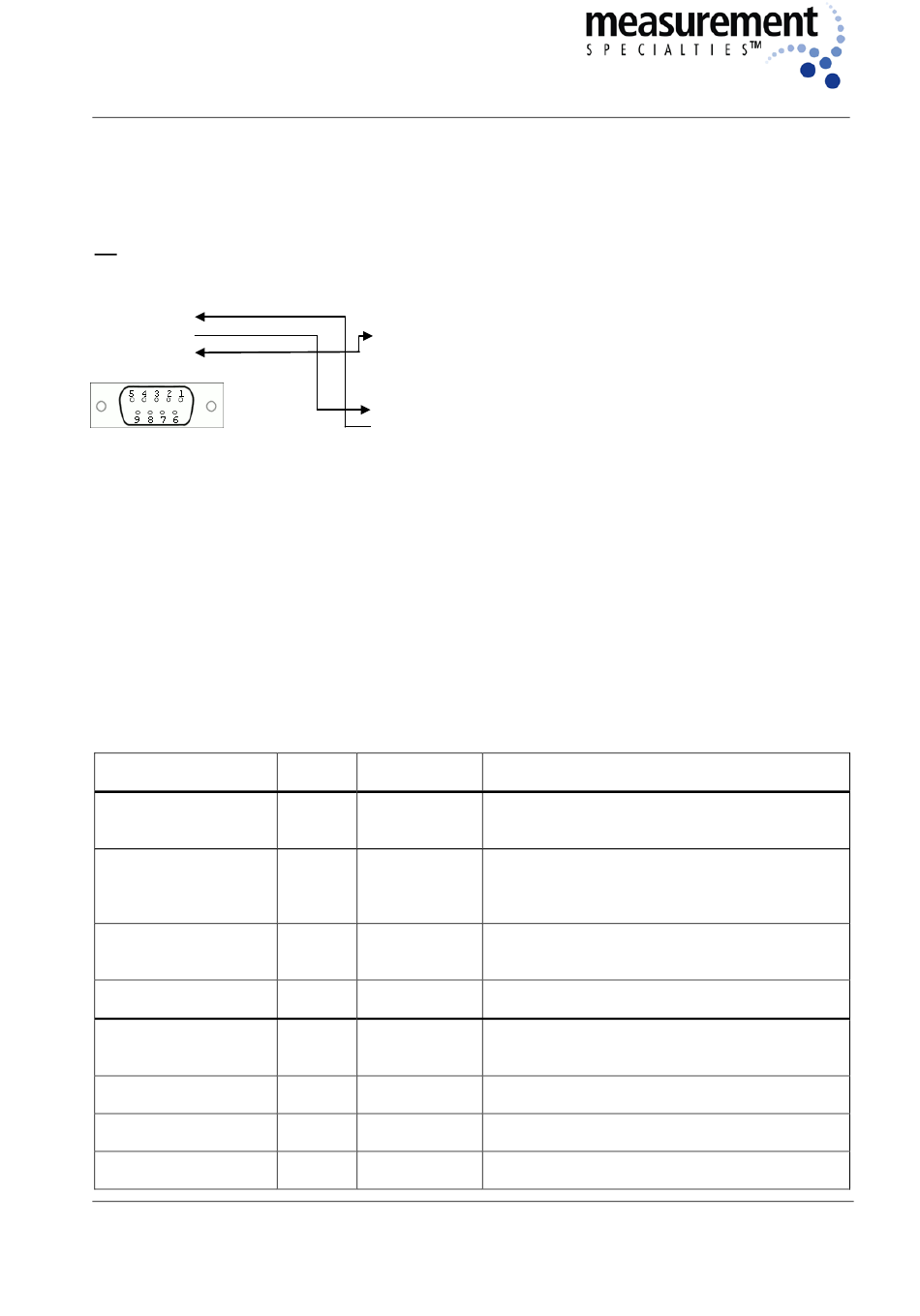

5.7.4.3 Connection RS 232 interface PC to inclinometer
PC side
Sub D-connector 9 pins
Pin 2 RxD
Pin 3 TXD
Pin 5 GND

5.8 Programming Instructions

The P-series has he possibility to programming some parameter to optimize the inclinometer.
This programming instruction is valid for single and duals axis P-series.
A standardized RS232 interface is used in duplex mode.
After startup the sensor transmits the angle values in degrees (°) continuously.

5.8.1 Commands in user level

Default after power on, running mode.
Commands in user
level
-Setup mode-
Stop continuous output
of inclination values
-Setup mode-
Activate
Command request
Exit
-Single step mode-
Activate
Single step activation,
off
Single step activation,
on
Exit
MEAS Deutschland GmbH
Hauert 13, D-44227 Dortmund, Germany
P-Series Inclinometer
Plug in connector NS-xx/DMG2-x
7 pin Binder 712-series connector with Meas cable
1 white +Ub
2 brown GND supply
3 green Earth supply
4 yellow n.c.
5 grey n.c.
6 pink RxD
7 blue TXD
Input Output
"s" "s"
"P" "P?"
"prog" "P!"
"B?"
"e" "E!"
"s" "S!"
"S?"
"0" CR,LF
"B?"
"1" CR,LF
B?"
"e" "E!"
www.meas-spec.com
14 of 16
July 2014
supply positive power supply
negative power supply, ground
earth
n.c.
n.c.
input Rx digital signal RS 232
output Tx digital signal RS 232
Comment
`s` holding pressed, stops the continuous output
of angle results, required for input of commands,
terminated by "e" or reset or power on.
This command is used to activate the setup
mode. The password `prog` has to be entered
within 3 seconds. If you lose out on, the unit will
be going into the running mode.
After received `B?`, choose the single step, baud
rate setting, zero setting or close the setup
mode.
To closed the setup mode, press `e´ to go into
running mode or go to another step.
This command is used to activate the single step
mode. Change the continuous output of angle
results into polling mode.
The single step activation will be stopped,
off.(default value)
The single step activation will be running, on.
Polling mode.
To closed the single step mode, press `e´ to go
into single step polling.
phone: +49-(0)231-9740-0
fax: +49-(0)231-9740-20
