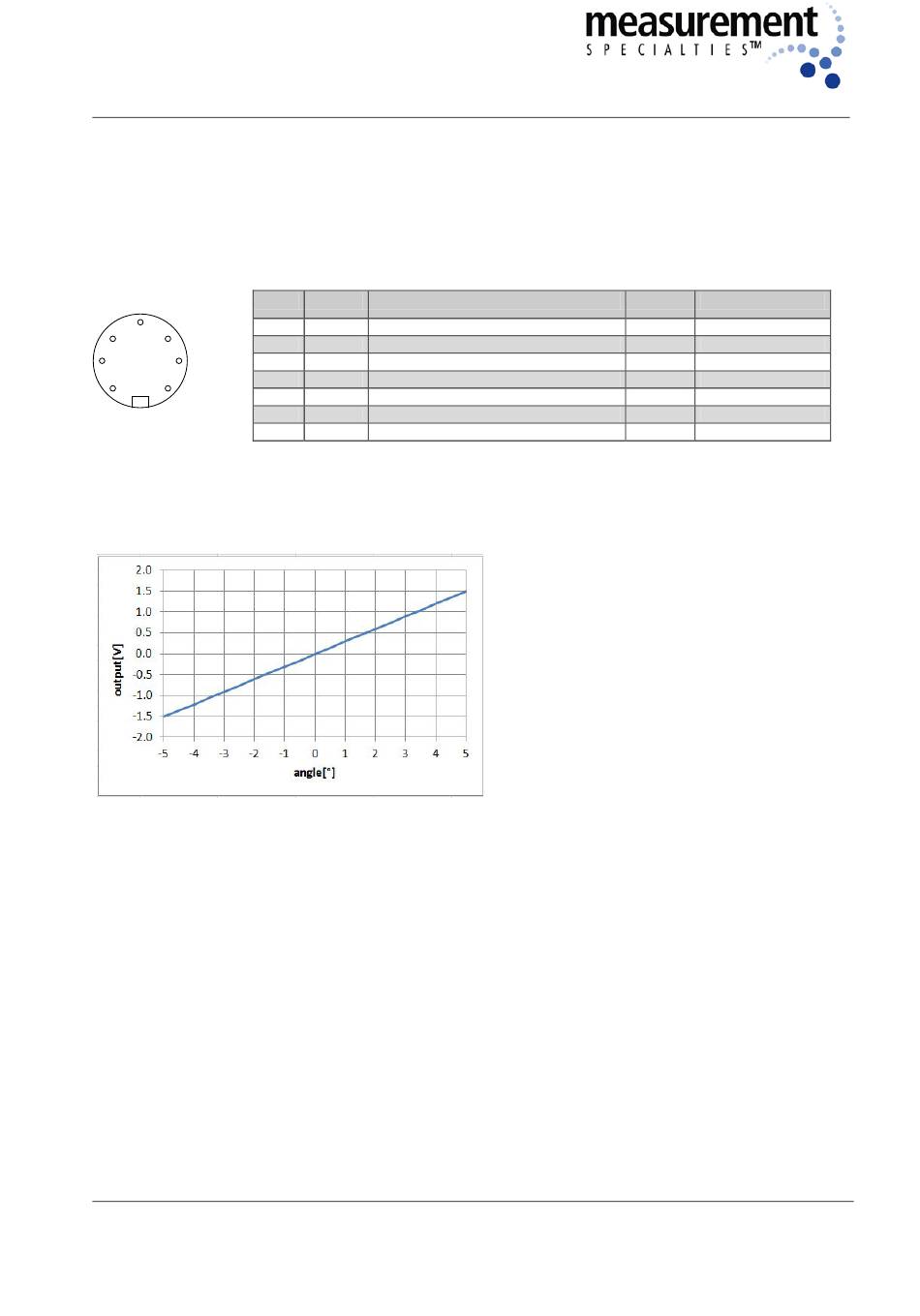

5.7 Electrical Connections

5.7.1 Pinning single axis unit with RS 232 / voltage output signal: NS-5/P, NS-15/P, NS-45/P

Pin
4
3 5
2 6
1 7
(1) by using a Measurement Specialties cable
Typical curve of voltage output signal +/-1.5 V in reference to signal GNDx of an inclinometer NS-5/P.
Notice ! The signal ground GNDx has not the same potential like the power ground GND.
Fig. 5.6.1.1 X-output [V] vs. angle [°]
MEAS Deutschland GmbH
Hauert 13, D-44227 Dortmund, Germany
P-Series Inclinometer
Name Description
1 Vcc power supply +6.5...+24VDC
2 GND power supply ground, RS 232 ground
3 Earth earth
4 GNDx signal ground for voltage output
5 Out x x-axis voltage output +/-1.5V
6 RxD input digital signal RS232
7 TxD output digital signal RS 232
www.meas-spec.com
11 of 16
July 2014
Type Color schema
supply white
supply brown
supply green
supply yellow
output grey
input pink
output blue
