Electrical Connection; Cable/Connector Assembly (Optional) - Measurement Computing P-Series Instruction Manual

Instruction Manual
4.3

Electrical Connection

•
7 pin male socket. Manufacturer = 'Binder – Connectors`, type 712, M9 x 0.5
4.4

Cable/Connector Assembly (optional)

Type of cable:
Conductor resistance:
Capacity:
Length:
Connector: 712 (M9 x 0.5)
- Straight connector, order-no.: G-NSMIS-002
- Angle (90°) connector, order-no.: G-NSMIS-003
• Connector only (optional)
- Straight connector, order-no.: G-NSMIS-001
- Angle 90° connector, order-no.: G-NSMIS-015
MEAS Deutschland GmbH
Hauert 13, D-44227 Dortmund, Germany
P-Series Inclinometer
2
LiYCY 6 x 0.14mm
131 Ohm/km
90pF/m at 1kHz
2m (further lengths on request)

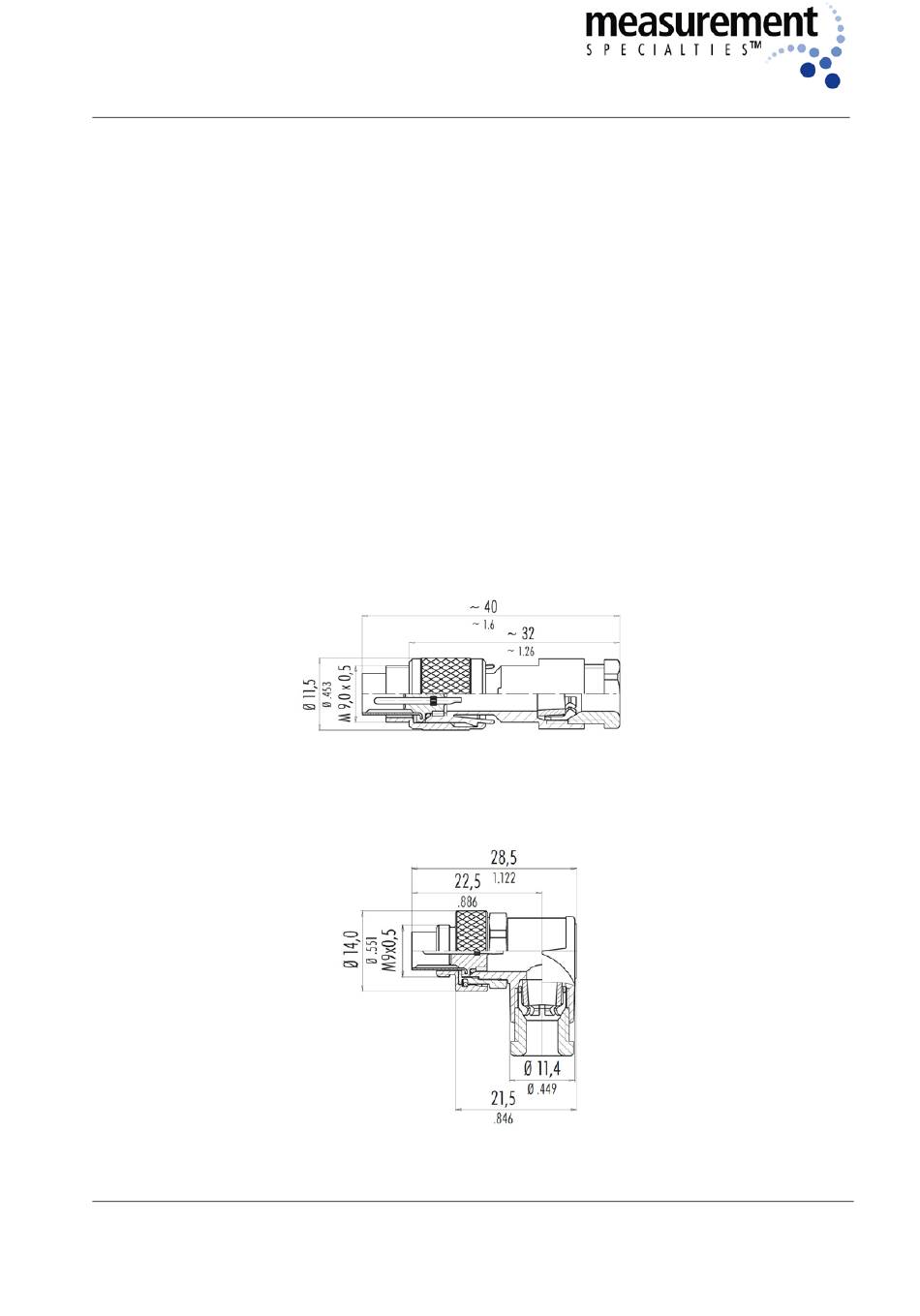

Fig. 4.4.1 Connector drawing , straight
Fig. 4.4.2 Connector drawing , angle 90°
