UTC Fire and Security Det-Tronics X9800 Instructions Manual page 16

FIRE ALARM PANEL
ALARM
+
24 VDC
–
A2187
FIRE ALARM PANEL
ALARM
EOL
DEVICE 4
ALARM
+
24 VDC
–
A2188
4.3
o i TEST 3
WIRING NOTES:
1 IN NORMAL OPERATION WITH NO FAULTS OCCURRING, THE FAULT RELAY COIL IS ENERGIZED AND
THE CONTACTS ARE CLOSED.
2 ALARM RELAY IS NORMALLY DE-ENERGIZED WITH NO ALARM CONDITION PRESENT.
3 INDIVIDUAL MANUAL o i TEST SWITCHES CAN BE INSTALLED REMOTELY OR A DETECTOR SELECTOR AND
ACTIVATION SWITCH CAN BE INSTALLED AT THE FIRE PANEL. TEST SWITCHES ARE NOT SUPPLIED.
(TEST SWITCHES ARE NOT NEEDED IF MAGNETIC o i IS USED.)
4 REFER TO SPECIFICATIONS SECTION FOR EOL RESISTOR VALUES. REFER TO EOL RESISTORS SECTION
FOR INSTALLATION DETAILS.

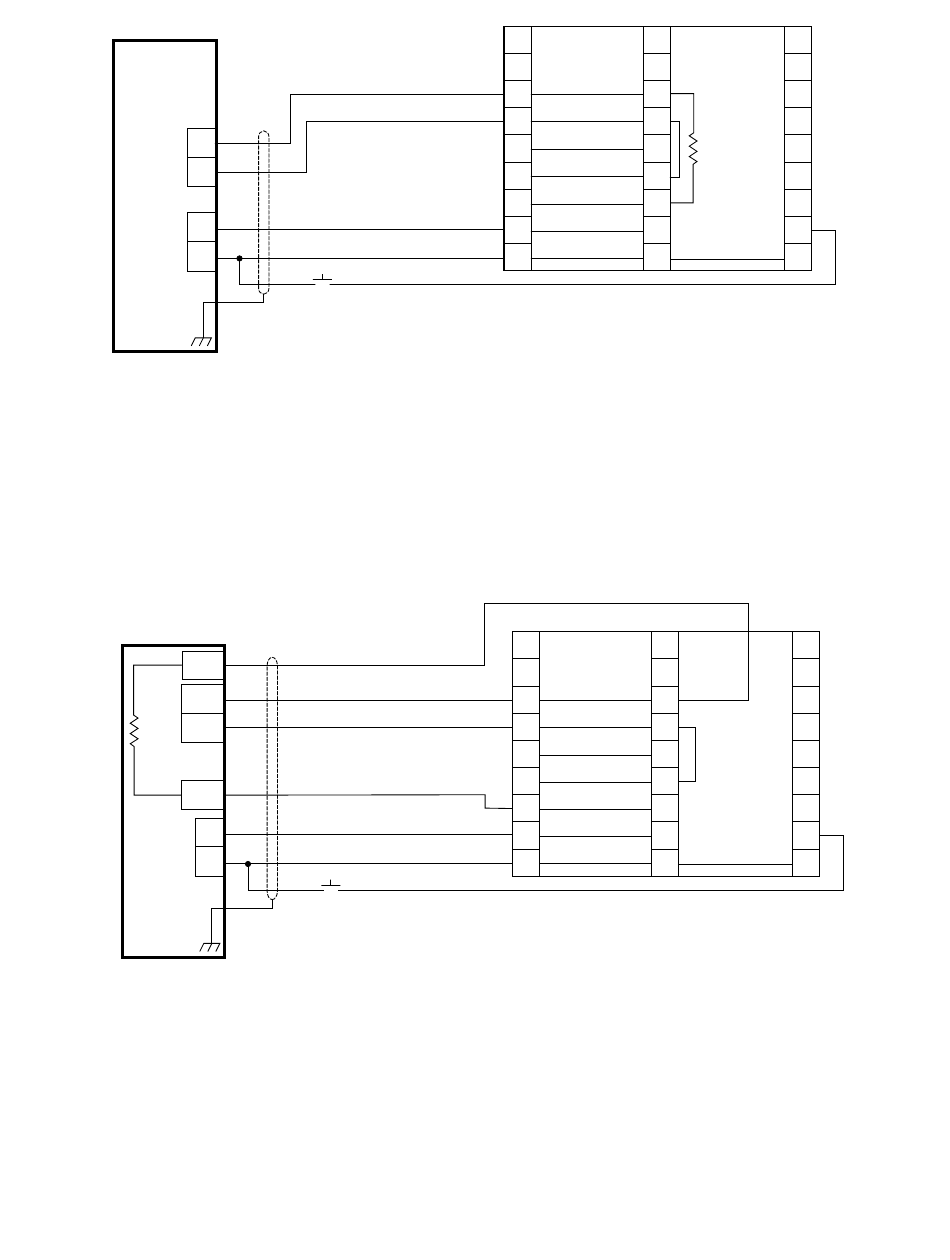

Figure 11—Ex d Wiring Option
o i TEST 3
WIRING NOTES:
1 IN NORMAL OPERATION WITH NO FAULTS OCCURRING, THE FAULT RELAY COIL IS ENERGIZED AND
THE CONTACTS ARE CLOSED.
2 ALARM RELAY IS NORMALLY DE-ENERGIZED WITH NO ALARM CONDITION PRESENT.
3 INDIVIDUAL MANUAL o i TEST SWITCHES CAN BE INSTALLED REMOTELY OR A DETECTOR SELECTOR AND
ACTIVATION SWITCH CAN BE INSTALLED AT THE FIRE PANEL. TEST SWITCHES ARE NOT SUPPLIED.
(TEST SWITCHES ARE NOT NEEDED IF MAGNETIC o i IS USED.)
4 EOL RESISTOR SUPPLIED BY PANEL.
Figure 12—Ex e Wiring Option
X9800 DETECTOR
9
8
COM FIRE 2
7
N.O. FIRE 2
6
N.C. FIRE 2
5
COM FAULT 1
4
N.O. FAULT 1
3
24 VDC +
2
24 VDC –
1
X9800 DETECTOR
9
8
COM FIRE 2
7
N.O. FIRE 2
6
N.C. FIRE 2
5
COM FAULT 1
4
N.O. FAULT 1
3
24 VDC +
2
24 VDC –
1
14
SPARE
19 PULSE OUT 29
18 SPARE 28
17 27
16 26
END OF
15 LINE DEVICE 4 25
14 RS-485 A 24
13 RS-485 B 23
MAN O i
12 22
24 VDC –
11 21
19 PULSE OUT SPARE 29
18 SPARE 28
17 27
16 26
15 25
14 RS-485 A 24
13 RS-485 B 23
MAN O i
12 22
24 VDC –
11 21
95-8555
