Instructions
95-8555
IR Flame Detector with Pulse Output
X9800
4.3
Rev: 6/10
95-8555

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Det-Tronics X9800 and is the answer not in the manual?

Questions and answers

Related Manuals for UTC Fire and Security Det-Tronics X9800

Summary of Contents for UTC Fire and Security Det-Tronics X9800

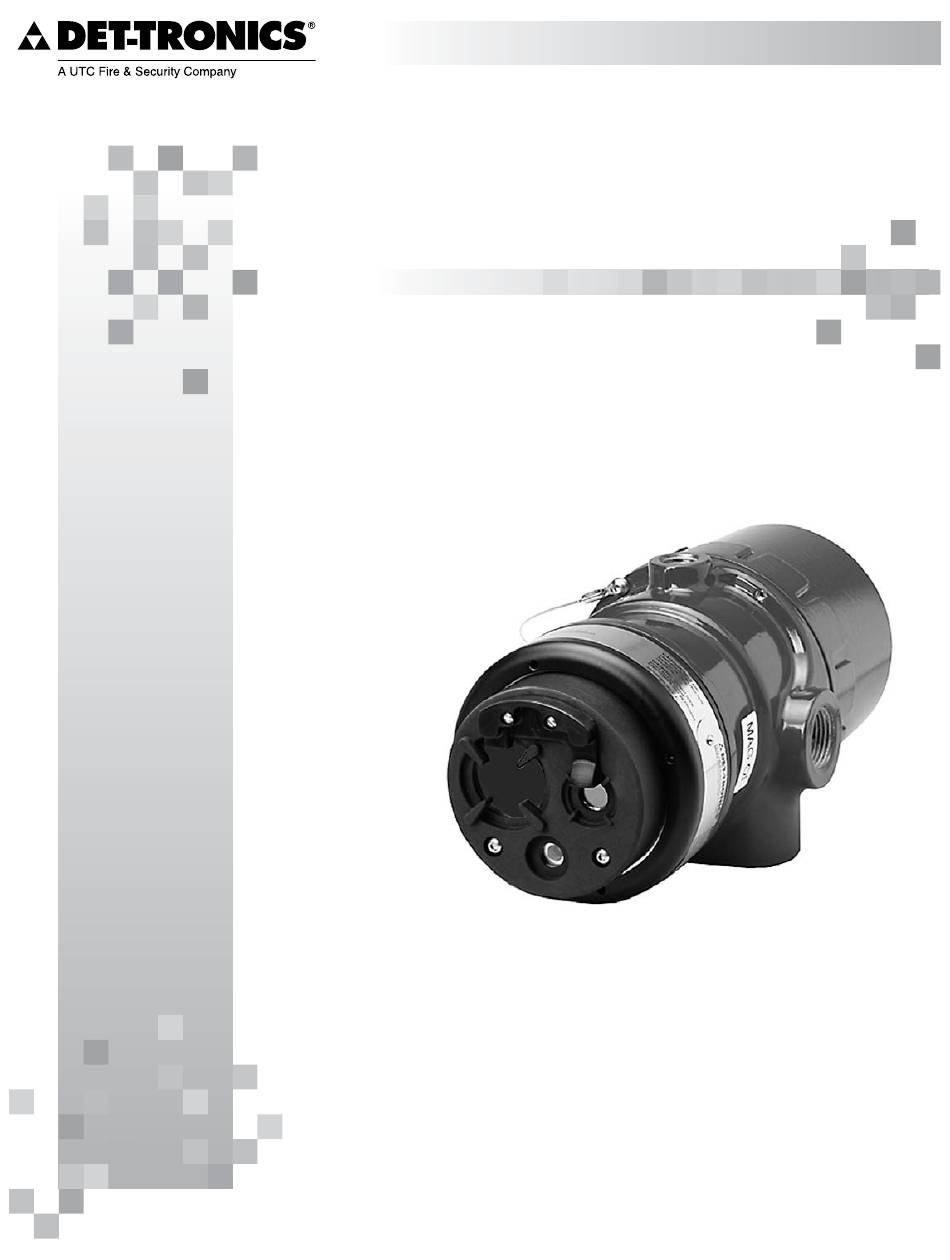

  • Page 1 Instructions 95-8555 IR Flame Detector with Pulse Output X9800 Rev: 6/10 95-8555...

  • Page 2: Table Of Contents

    Table of Contents Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 troubLeshooting .

  • Page 3: Description

    INSTRUCTIONS IR Flame Detector with Pulse Output X9800 Important Be sure to read and understand the entire instruction manual before installing or operating the flame detection system. Any deviation from the recommendations in this manual may impair system performance and compromise safety. attEntIon The X9800 includes the Automatic Optical Integrity ( o i ®) feature —...

  • Page 4: Outputs

    OUTpUTS Magnetic o i / Manual o i Relays CaUtIon The detector is furnished with fire and fault relays. The These tests require disabling of all extinguishing relays are rated 5 amperes at 30 Vdc. devices to avoid release resulting from a successful test.

  • Page 5: Communication

    Important INTEGRAL wIRING COMpARTMENT Magnetic o i can be per formed with the All external wiring to the device is connected within controller’s (R7404/R7494) keylock switch in either the integral junction box. The screw terminals accept the NORMAl or TEsT position. In NORMAl, the wiring from 14 to 24 AWG.

  • Page 6: General Application Information

    gENERal aPPlICaTION FALSE ALARM SOURCES INfORmaTION The detector has been designed to ignore steady state infrared sources that do not have a flicker frequency RESpONSE CHARACTERISTICS characteristic of a fire, however, it should be noted that Response is dependent on distance, type of fuel, if these steady state infrared sources are hot enough temperature of the fuel, and time required for the fire to to emit adequate amounts of infrared radiation in the...

  • Page 7: Factors Inhibiting Detector Response

    ImPORTaNT SafETy NOTES FACTORS INHIbITING DETECTOR RESpONSE windows WarnIng Glass and Plexiglas windows significantly attenuate Do not open the detector assembly in a hazardous radiation and must not be located between the detector area when power is applied. The detector contains and a potential flame source.

  • Page 8: Installation

    INSTallaTION NOTE The recommended lubricant for threads and CENTER AXIS O-rings is a silicone free grease (part number OF DETECTOR FIELD OF VIEW 005003-001) available from Detector Electronics. Under no circumstances should a lubricant containing silicone be used. INCORRECT DETECTOR pOSITIONING Detectors should be positioned to provide the best unobstructed view of the area to be protected.

  • Page 9: Protection Against Moisture Damage

    pROTECTION AGAINST MOISTURE DAMAGE The “B” (pulse output) and “D” (o i driver) leads from each detector should be shielded from the “B” and “D” It is important to take proper precautions during installation leads of all other detectors in order to prevent false to ensure that moisture will not come in contact with alarms resulting from crosstalk between zones.
  • Page 10 (10.2) 4X ø0.42 13.1 (1.1) (33.4) (7.6) NOTE: THIS ILLUSTRATION SHOWS THE DETECTOR MOUNTED AT THE 10° MINIMUM. THESE DIMENSIONS WILL CHANGE BASED ON THE DETECTOR’S MOUNTING ANGLE. (7.6) (10.2) 10.6 (27.0) E2069 Figure 3—Q9033 Mounting Bracket Dimensions in Inches (cm) (See Figure 1 for Correct Detector Orientation.) Figures 11 and 12 provide examples of typical 2.
  • Page 11 NOTE: DO NOT CONNECT THE X9800 "A" LEAD (#2/12) TO TERMINAL J1-3 (290 VDC). R7404 CONTROLLER ZONE OUTPUT 1 10 TO 38 VDC – – ZONE OUTPUT 2 X9800 (A) +290 VDC ZONE OUTPUT 3 B - INPUT 1 ZONE OUTPUT 4 DETECTOR 1 B - INPUT 2 ZONE OUTPUT 5...
  • Page 12 NOTE: DO NOT CONNECT THE X9800 "A" LEAD (#2/12) TO TERMINAL J1-3 (290 VDC). R7404 STAR LOGIC CONTROLLER +24 VDC ZONE OUTPUT 1 CIRCUIT GROUND ZONE OUTPUT 2 – X9800 +290 VDC ZONE OUTPUT 3 B1 - INPUT SIGNAL ZONE OUTPUT 4 DETECTOR 1 B2 - INPUT SIGNAL ZONE OUTPUT 5...
  • Page 13 R7494 CONTROLLER +24 VDC ZONE OUTPUT 1 CIRCUIT GROUND ZONE OUTPUT 2 – X9800 +24 VDC ZONE OUTPUT 3 B1 - INPUT SIGNAL ZONE OUTPUT 4 DETECTOR 1 B2 - INPUT SIGNAL ZONE OUTPUT 5 B3 - INPUT SIGNAL ZONE OUTPUT 6 B4 - INPUT SIGNAL ZONE OUTPUT 7 X9800...
  • Page 14 R7495 CONTROLLER (NOT FM APPROVED) +24 VDC – GROUND X9800 DETECTOR 1 X9800 J2-44 J2-36 DETECTOR 2 X9800 J2-45 J2-37 DETECTOR 3 X9800 J2-46 J2-38 DETECTOR 4 X9800 J2-47 J2-39 DETECTOR 5 X9800 J2-48 J2-40 DETECTOR 6 X9800 J2-49 J2-41 DETECTOR 7 X9800 J2-50...
  • Page 15 NOTE: DO NOT CONNECT THE X9800 "A" LEAD (#2/12) TO TERMINAL J2-34 (290 VDC). R7405 CONTROLLER (NOT FM APPROVED) +24 VDC GROUND – X9800 DETECTOR 1 X9800 J2-44 J2-36 DETECTOR 2 X9800 +290 VDC J2-45 J2-37 DETECTOR 3 X9800 J2-46 J2-38 DETECTOR 4 X9800...
  • Page 16 X9800 DETECTOR FIRE ALARM PANEL SPARE PULSE OUT SPARE COM FIRE 2 N.O. FIRE 2 N.C. FIRE 2 END OF LINE DEVICE 4 ALARM COM FAULT 1 RS-485 A N.O. FAULT 1 RS-485 B 24 VDC + MAN O i 24 VDC 24 VDC –...

  • Page 17: Eol Resistors

    STaRTUP PROCEDURE EOL RESISTORS To ensure that the insulating material of the wiring terminal When installation of the equipment is complete, apply block will not be affected by the heat generated by EOL power and allow 20 to 30 minutes for the detector’s resistors, observe the following guidelines when installing heated optics to reach equilibrium.

  • Page 18: Fire Alarm Test

    TROUBlESHOOTINg 3. Press the SELECT button until the desired zone is displayed on the ZONE indicator on the controller front panel. WarnIng The sensor module (“front” half of the detector) 4. Press and hold the TEST button. The DETECTOR/ contains no user serviceable components ZONE display indicates the counts per second and should never be opened.

  • Page 19: Maintenance

    maINTENaNCE GRASP VISOR AND REMOVE PLATE Important Pe r i o d i c fl a m e p a t h i n s p e c t i o n s a re n o t recommended, since the product is not intended to be serviced and provides proper ingress protection to eliminate potential deterioration of the flamepaths.

  • Page 20: Features

    fEaTURES POWER UP TIME— Fault indication clears after 0.5 second; device is ready • Responds to a fire in the presence of modulated to indicate an alarm condition after 30 seconds. blackbody radiation (i.e. heaters, ovens, turbines) without false alarm. OUTPUT RELAYS—...
  • Page 21 ENCLOSURE MATERIAL— NOTE Copper-free aluminum (painted) or 316 stainless steel. Operational performance verified from -40°C to +75°C. VIBRATION— NOTE Conformance per FM 3260: 2000, MIL-STD 810C (Curve AW). An optional third party addressable module can only be used within the Ex d flameproof model DIMENSIONS—...

  • Page 22: Replacement Parts

    REPlaCEmENT PaRTS ORDERINg INfORmaTION The detector is not designed to be repaired in the field. When ordering, please specify: If a problem should develop, refer to the Troubleshooting X9800 IR Flame Detector with Pulse Output section. If it is determined that the problem is caused by an electronic defect, the device must be returned to the Refer to the X9800 Model Matrix below for details factory for repair.
  • Page 23 X9800 MODEL MATRIX MODEL DESCRIpTION X9800 Single Frequency IR Flame Detector TYpE MATERIAL Aluminum Stainless Steel (316) TYpE THREAD TYpE 4 PORT, METRIC M25 4 PORT, 3/4" NPT TYpE OUTpUTS Relay and Pulse TYpE AppROvAL AGENCY FM/CSA/ATEX/CE/IECEx TYpE CLASSIFICATION* Division/Zone Ex d e Division/Zone Ex d *Detectors are always Class I, Div.

  • Page 24: Performance Report

    aPPENDIX a FM Approval and performance Report THE FOLLOWING ITEMS, FUNCTIONS AND OPTIONS DESCRIBE THE FM APPROVAL: • Explosion-proof for Class I, Div. 1, Groups B, C and D (T5) Hazardous (Classified) Locations per FM 3615. • Dust-ignition proof for Class II/III, Div. 1, Groups E, F and G (T5) Hazardous (Classified) Locations per FM 3615. •...
  • Page 25 FM Approval Description and performance Report – Continued RESpONSE CHARACTERISTICS: very High Sensitivity Fuel Size Distance feet (m) Typical Response Time (seconds) TDSA Quickfire n-Heptane 1 x 1 foot 85 (25.9) Methane 32 inch plume 60 (18.3) Propane Torch 2 (0.6) 0.04 High Sensitivity Fuel...
  • Page 26 FM Approval Description and performance Report – Continued FALSE ALARM IMMUNITY: High Sensitivity, TDSA On, Quick Fire Off False Alarm Souce Distance feet (m) Modulated Response Unmodulated Response Sunlight, direct, reflected — No alarm No alarm Vibration No alarm No alarm Arc welding 15 (4.6) No alarm...

  • Page 27: Appendix B - Csa Approval

    aPPENDIX B CSA Approval pRODUCTS CLASS 4818 04 - SIGNAL APPLIANCES - Systems - For Hazardous Locations Class I, Division 1, Groups B, C, and D (T5); Class II, Division 1, Groups E, F, and G (T5); Class I, Division 2, Groups A, B, C, and D (T3); Class II, Division 2, Groups F and G (T3); Class III;...

  • Page 28: Appendix C - Atex / Ce Approval

    aPPENDIX C ATEX / CE Approval EC-TYpE EXAMINATION CERTIFICATE DEMKO 02 ATEX 132195X Increased Safety Model Flameproof Model II 2 G II 2 G 0539 0539 ® ® APPROVED APPROVED Ex d e IIC T5–T6 Gb Ex d IIC T5–T6 Gb T6 (T –50°C to +60°C) T6 (T...

  • Page 29: Appendix D - Iecex Approval

    aPPENDIX D IECEx Approval IECEx CERTIFICATE OF CONFORMITY DEMKO IECEx ULD 06.0018X Ex d e IIC T5-T6 Gb Ex d IIC T4-T6 Gb T6 (T =–50°C to +60°C) T6 (T =–55°C to +60°C) T5 (T =–50°C to +75°C) T5 (T =–55°C to +75°C) IP66.

  • Page 30: Appendix E - Vds Approval

    aPPENDIX E vdS Schadenverhütung GmbH Approval Performance per EN54-10, Certificate of Approval G-203084. EC-Certificate of Conformity 08 0786 – CPD – 20779 EN54-10 Flame detectors - Point detectors. SUbJECT MATTER OF THE AppROvAL IR Flame Detector Type X9800 for use in Automatic Fire Detection and Fire Alarm Systems. bASIS OF AppROvAL DIN EN 54, Part 10 (05/02) - Flame Detectors.
  • Page 31 95-8555 Detector Electronics Corporation 6901 West 110th Street Minneapolis, MN 55438 USA T: 952.941.5665 or 800.765.3473 F: 952.829.8750 W: http://www.det-tronics.com X3301 Multispectrum PointWatch Eclipse ® FlexVu ® Universal Display Eagle Quantum Premier ® E: det-tronics@det-tronics.com IR Flame Detector IR Combustible Gas Detector w/ GT3000 Toxic Gas Detector Safety System Det-Tronics, the DET-TRONICS logo, Protect•IR, and Automatic Optical Integrity (o i ) are registered trademarks or trademarks of Detector Electronics...
