UTC Fire and Security Det-Tronics X9800 Instructions Manual page 13

#2
#1
X9800
#19
#22
DETECTOR 1
#2
#1
X9800
#19
#22
DETECTOR 2
#2
#1
X9800
#19
#22
DETECTOR 3
#2
#1
X9800
#19
#22
DETECTOR 4
#2
#1
X9800
#19
#22
DETECTOR 5
#2
#1
X9800
#19
#22
DETECTOR 6
#2
#1
X9800
#19
#22
DETECTOR 7
#2
#1
X9800
#19
#22
DETECTOR 8
TERMINAL IDENTIFICATION FOR X9800
WITH PULSE OUTPUT.
TERMINAL NO. FUNCTION
1/11 DC– ("C" LEAD)
2/12 DC+ ("A" LEAD)
19 SIGNAL ("B" LEAD)
o i
22
4.3
#2
#1
#19
#22
#2
#1
#19
J1-5
#22
J1-13
#2
#1
#19
J1-6
#22
J1-14
#2
#1
#19
J1-7
#22
J1-15
#2
#1
#19
J1-8
#22
J1-16
#2
#1
#19
J1-9
#22
J1-17
#2
#1
#19
J1-10
#22
J1-18
#2
#1
#19
J1-11
#22
J1-19
NOTE: IF THE POWER SUPPLY MINUS CANNOT BE CONNECTED
TO CHASSIS (EARTH) GROUND, CONNECT A 0.47 μF 400 VDC
NON-POLARIZED CAPACITOR BETWEEN J1-2 AND J2-64.
NOTE: 2.5 AMPERES @ 24 VDC REQUIRED PER EIGHT DETECTORS.
NOTE: DETECTOR/CONTROLLER CIRCUITS MEET CLASS B, STYLE
0.5 REQUIREMENTS (SIGNALING LINES A AND C).
("D" LEAD)

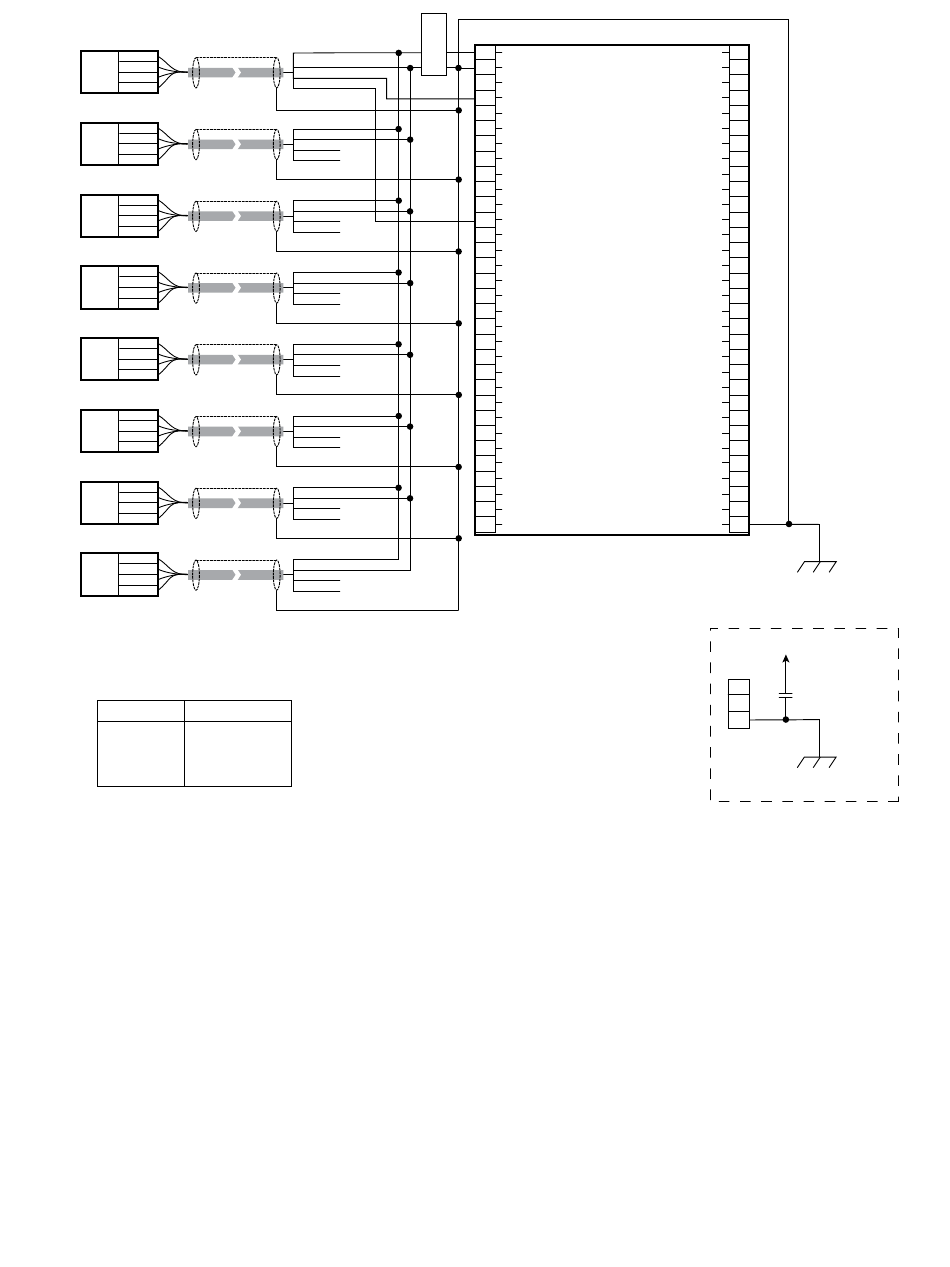

Figure 8—A Typical System, X9800 Detectors Wired to R7494 Controller
24
VDC J1
R7494 CONTROLLER
+
1 +24 VDC
2 CIRCUIT GROUND
–
3 +24 VDC
4 B1 - INPUT SIGNAL
5 B2 - INPUT SIGNAL
6 B3 - INPUT SIGNAL
7 B4 - INPUT SIGNAL
8 B5 - INPUT SIGNAL
9 B6 - INPUT SIGNAL
10 B7 - INPUT SIGNAL
11 B8 - INPUT SIGNAL
12 D1 o i DRIVER EXTERNAL RESET/INHIBIT
13
D2 o i DRIVER
14
D3 o i DRIVER
15
D4 o i DRIVER
16 STATUS & DET. OUTPUT S1
D5 o i DRIVER
17
STATUS & DET. OUTPUT S2
D6 o i DRIVER
18
STATUS & DET. OUTPUT S3
D7 o i DRIVER
19
STATUS & DET. OUTPUT S4
D8 o i DRIVER
20 STATUS & DET. OUTPUT S5
DATA BUS OUT
21
STATUS & DET. OUTPUT S6
DATA BUS OUT
22
STATUS & DET. OUTPUT S7
DATA BUS OUT
23
STATUS & DET. OUTPUT S8
DATA BUS OUT
24
DATA BUS OUT
25
DATA BUS OUT
26
DATA BUS OUT
27
DATA BUS OUT
28
NOT USED
29
NOT USED
30
DATA STROBE IN
31
NOT USED
32
NOT USED
11
J2
33
ZONE OUTPUT 1
34
ZONE OUTPUT 2
35
ZONE OUTPUT 3
ZONE OUTPUT 4 36
37
ZONE OUTPUT 5
38
ZONE OUTPUT 6
39
ZONE OUTPUT 7
ZONE OUTPUT 8 40
41
FIRE LOGIC "A"
42
FIRE LOGIC "B"
43
ALARM OUTPUT
44
45
OUTPUTS INHIBITED
46
FAULT OUTPUT
47
EXTERNAL ACCEPT
48
49
50
51
52
53
54
55
56
DATA BUS 0
57
DATA BUS 1
58
DATA BUS 2
59
DATA BUS 3
60
DATA BUS 4
61
DATA BUS 5
62
DATA BUS 6
63
DATA BUS 7
64
EARTH GROUND
A2184
TO J1-2
62
0.47 μF / 400 VDC
NON-POLARIZED
63
64
GROUND FAULT PROTECTED SYSTEMS
95-8555
