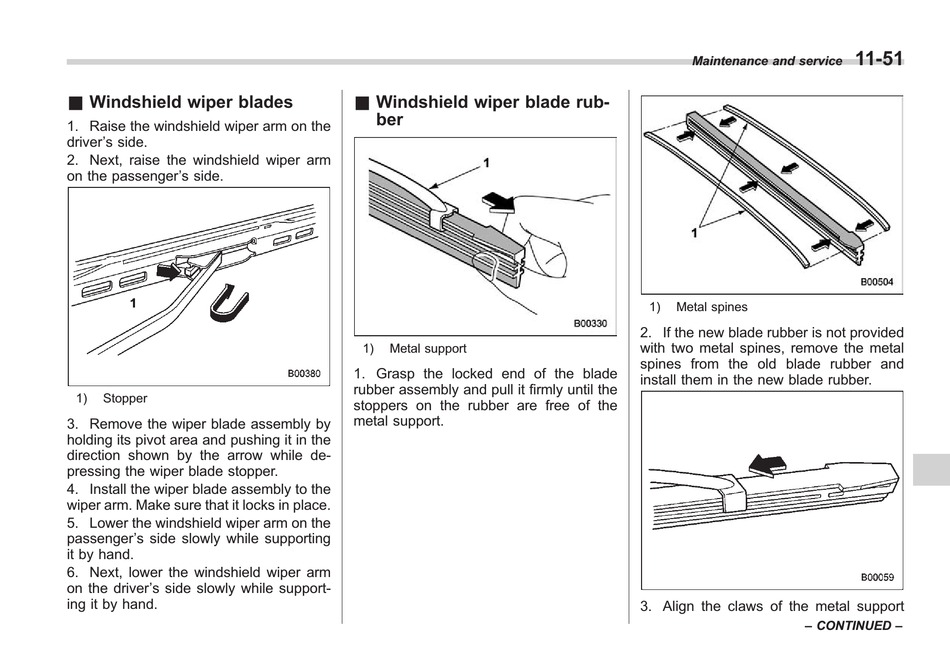

& Windshield wiper blades
1. Raise the windshield wiper arm on the
driver's side.
2. Next, raise the windshield wiper arm
on the passenger's side.
1) Stopper
3. Remove the wiper blade assembly by
holding its pivot area and pushing it in the
direction shown by the arrow while de-
pressing the wiper blade stopper.
4. Install the wiper blade assembly to the
wiper arm. Make sure that it locks in place.
5. Lower the windshield wiper arm on the
passenger's side slowly while supporting
it by hand.
6. Next, lower the windshield wiper arm
on the driver's side slowly while support-
ing it by hand.
& Windshield wiper blade rub-
ber
1) Metal support
1. Grasp the locked end of the blade
rubber assembly and pull it firmly until the
stoppers on the rubber are free of the
metal support.
Maintenance and service
1) Metal spines
2. If the new blade rubber is not provided
with two metal spines, remove the metal
spines from the old blade rubber and
install them in the new blade rubber.
3. Align the claws of the metal support
– CONTINUED –
11-51
