Hardware layout
4.2.1

Using ST-LINK/V2 to program/debug the STM32F401 on board

To program the STM32F401 on board, simply plug in the two jumpers on CN3, as shown in
Figure 7
the STM32F401VCT6 of the STM32F401 Discovery board.
16/39
in red, but do not use the CN2 connector as that could disturb communication with

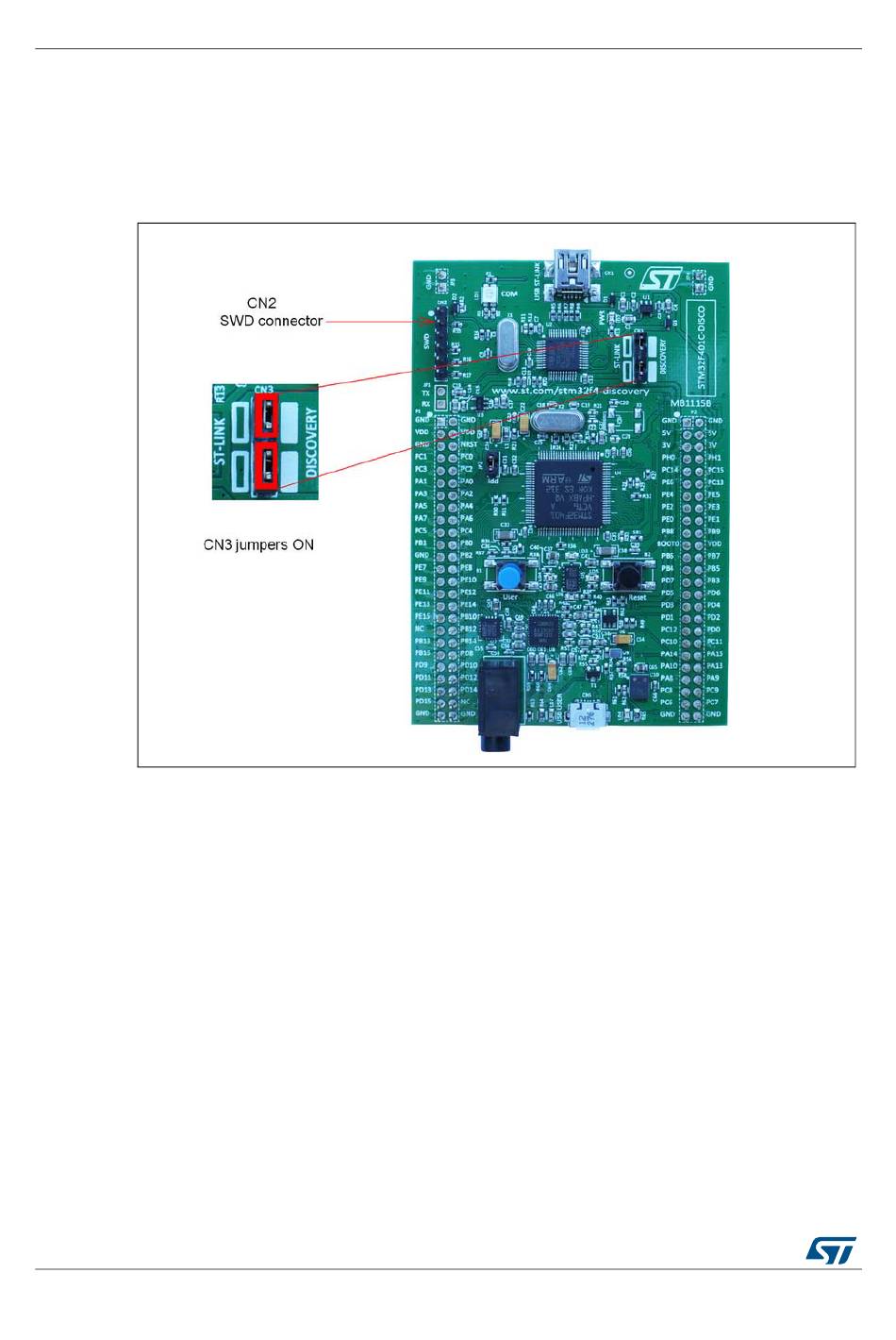

Figure 7. STM32F401 Discovery board connections image

DocID025174 Rev 1
UM1669
