Curt Group 3025101 Installation Manual page 4

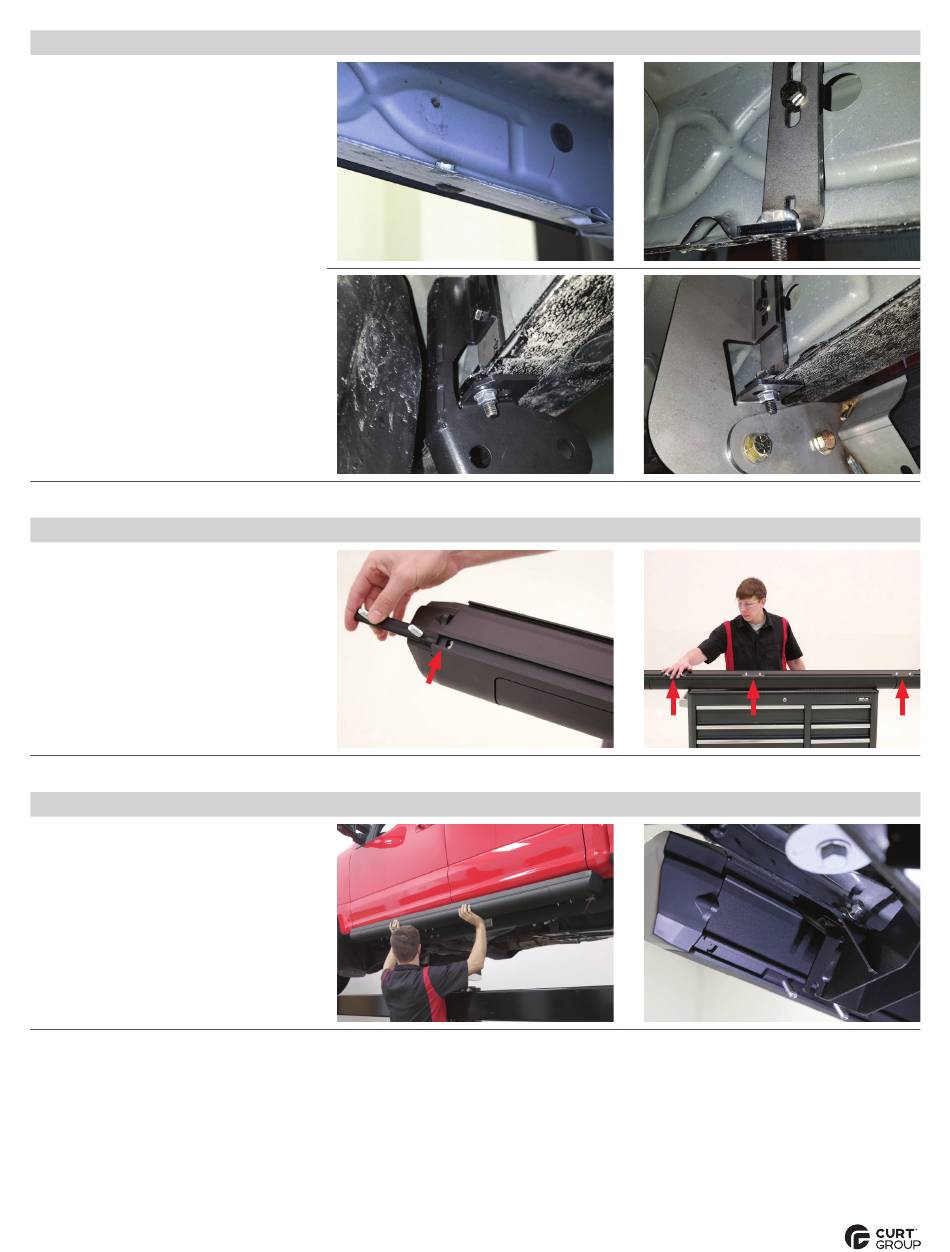

Step 4
Locate the fifth mounting tab from step 1.
Insert an M8 clip nut through the access hole
and align it over the adjacent smaller hole.
Place an L-bracket on to the body panel.
Attach one standard mounting bracket to the
L-bracket and vehicle using an M8 hex bolt,
flat washer and lock washer.
Attach the pinch weld with a 5/16" flat washer
and nylock nut. Attach a step bracket using
two 7/16" hex bolts, two 7/16" lock washers,
two 7/16" flat washers and two 7/16" hex nuts.
Snug the hardware, but do not fully tighten.
Step 5
With the driver-side brackets installed, take
the driver-side running board and insert three
T-rails into the slot as shown.
Note: Position each T-rail as close to the
mounting bracket location as possible.
Step 6
With help, carefully place the running board
onto the mounting brackets.
Align the T-rails with the mounting brackets
on the vehicle. Slide the top mounting track on
the board over the top flange on each bracket.
Adjust the T-rails in the lower track of the
board so the studs drop into the slots on the
bottom of each mounting bracket.
