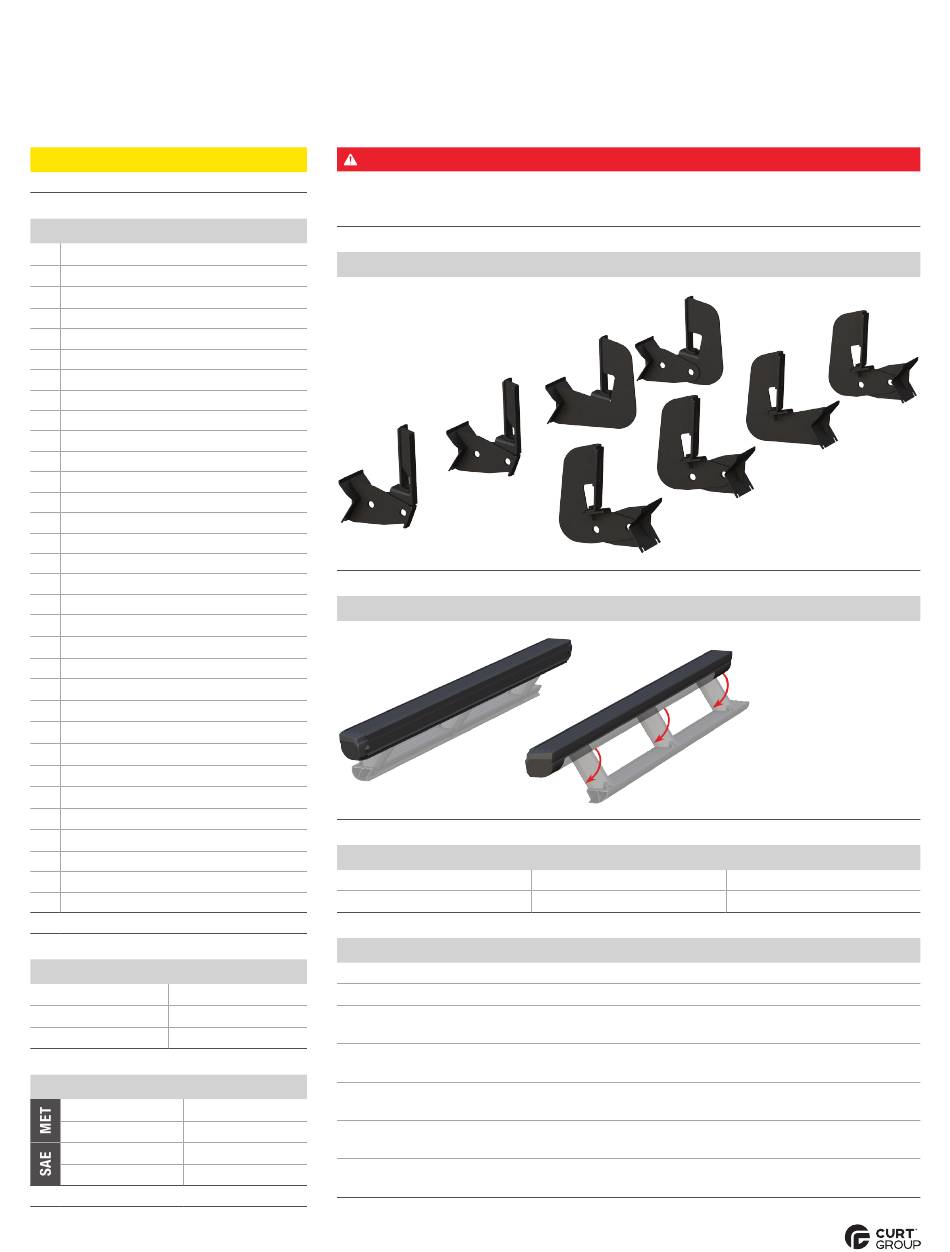

POWERED RUNNING BOARDS
INSTALLATION MANUAL
Level of Difficulty
Moderate
Parts List
1
Driver / left running board*
1
Passenger / right running board*
4
Mounting bracket, standard
2
Mounting bracket, middle
6
Step bracket
8
L-bracket
2
Def tank bracket
6
T-rails
8
Hex bolt, M8
8
Flat washer, M8
8
Lock washer, M8
4
Clip nut, M8
24 Flat washer, 5/16"
24 Nylock nut, 5/16"
12
Hex bolt, 7/16" x 1"
24 Flat washer, 7/16"
12
Lock washer, 7/16"
12
Hex nut, 7/16"
2
Rubber grommet
4
Door sensor
2
Door sensor extension
4
Magnet
2
Alcohol wipe
1
Power switch
1
Circuit board
1
Anti-seize
1
Wire loom
1
Wiring harness, two-piece
2
LED light
2
LED light bracket
4
Double-sided foam tape, 3/4" x 3/4"
8
Double-sided foam tape, 1/2" x 1/2"
* Running boards sold separately
Tools Required
Ratchet
Drill
Socket set
Drill bit set
Zip ties
Level
Torque Specifications
M6 bolt
3 ft-lbs.
M8 bolt
7 ft-lbs.
5/16" bolt
7 ft-lbs.
7/16" bolt
20 ft-lbs.
Use above torque setting unless otherwise noted
NEED ASSISTANCE?
•
844.278.4357
WARNING
Improper electrical installation may result in personal injury. Unless
you are familiar with the installation and handling of electrical systems,
have this step performed by someone who has that familiarity.

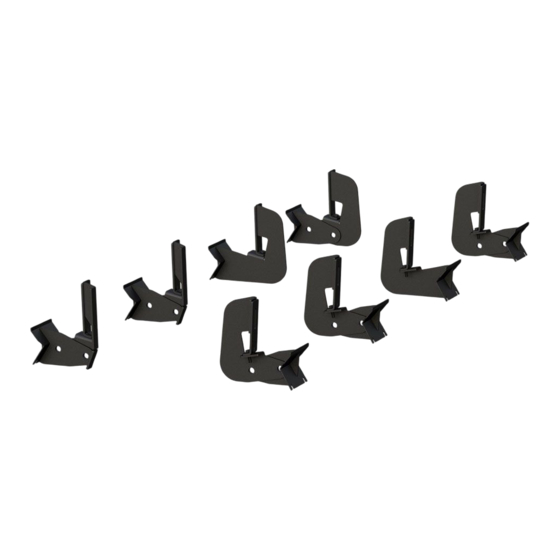

Product Photo
Def tank
Powered Running Boards (not included)
Part Numbers
3025101 (brackets)
3015101 (brackets)
Notes and Maintenance
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
No maintenance required on waterproof harness or water-resistant motors.
If mud or dirt is built up on the steps, simply spray them off and let them air dry.
Mild automotive detergent may be used to clean the product. Do not use dish detergent, abrasive
cleaners, abrasive pads, wire brushes or other similar products that may damage the finish.
Periodic inspection of all wires and connections should be
performed to ensure there is no visible damage or loose connections.
Refer to the last page of this manual for troubleshooting,
warranty and product registration information.
Refer to the table to the left when securing hardware during the
installation process to help prevent damage to the product or vehicle.
•
RA
•
PAGE 1
Standard
Middle
Def tank
Front
3025179 (boards)
3015179 (boards)
Rear
Middle
Standard
Standard
3047902 (brackets & boards)
3037902 (brackets & boards)
Standard
Advertisement
Related Manuals for Curt Group 3025101
Summary of Contents for Curt Group 3025101
- Page 1 Circuit board Anti-seize Wire loom Wiring harness, two-piece LED light Part Numbers LED light bracket 3025101 (brackets) 3025179 (boards) 3047902 (brackets & boards) Double-sided foam tape, 3/4" x 3/4" 3015101 (brackets) 3015179 (boards) 3037902 (brackets & boards) Double-sided foam tape, 1/2" x 1/2"...
- Page 2 Bracket Location Diagram Standard Standard Middle Middle Def tank Standard Def tank Standard NEED ASSISTANCE? • 844.278.4357 • • PAGE 2...
- Page 3 Step 1 Starting on the driver side, locate the five mounting locations underneath the vehicle. This installation will use the first, second, fourth and fifth mounting tabs. Note: Each bracket is specific to a mounting location. Refer to page 1 product image for correct locations.
- Page 4 Step 4 Locate the fifth mounting tab from step 1. Insert an M8 clip nut through the access hole and align it over the adjacent smaller hole. Place an L-bracket on to the body panel. Attach one standard mounting bracket to the L-bracket and vehicle using an M8 hex bolt, flat washer and lock washer.
- Page 5 Step 7 Secure the running board to the front mounting bracket using one M8 flat washer and one 5/16" nylock nut on each T-rail stud. Repeat for the middle mounting bracket. Before securing the rear mounting bracket, place an LED light bracket over one of the T-rail studs, as shown in the third image.
- Page 6 Step 9 On the front passenger-side mounting location, locate the threaded hole on the inside of the body panel and place an L-bracket on to that panel. Note: On models with def tanks you will not attach to the threaded hole on first mounting location.
- Page 7 Step 11 Remove the fuse from the wiring harness before installing. Once the fuse is removed, take that section of the wiring harness and attach it to the battery. Route the opposite end of the harness through the firewall into the cab of the vehicle. Zip-tie the wiring harness in place once it is in the desired location.
- Page 8 Step 13 Wiring Locations Once the trim panels are removed, take the Door sensor, rear Purple / Orange second section of wiring harness and route it Door sensor, front Yellow / Orange under the carpet, through the vehicle, from the passenger-side rear to the desired location.
- Page 9 Step 14 On the driver side, take the power wire and sensor wire (orange / yellow) and route it to the front of the vehicle underneath the carpet. If there is no plug in the floor behind the driver seat, skip to step 15. If there is a plug in the floor behind the driver seat continue this step.
- Page 10 Step 17 Plug the door sensor into the wiring harness and route it up the door frame, under the carpet. Note: Depending on the vehicle, you may need to use the supplied sensor harness extensions for the two front door sensors. Once the harness and sensor are routed to the desired location, wipe the sensor and door with the provided alcohol wipe.
- Page 11 Step 19 On the driver side, plug the rear actuator (red / black) into the running board and pull the extra wire back into the vehicle. Plug the LED light wire (brown / tan) into the LED light and secure it to the mounting bracket tab with the supplied jam nut.
- Page 12 Step 21 Once all wiring is installed, plug in the circuit board and place it underneath the carpet under the rear passenger seat. Attach the two wiring harnesses and re-install the fuse removed in step 11. Step 22 Congratulations on the installation of your new powered running boards.
-
