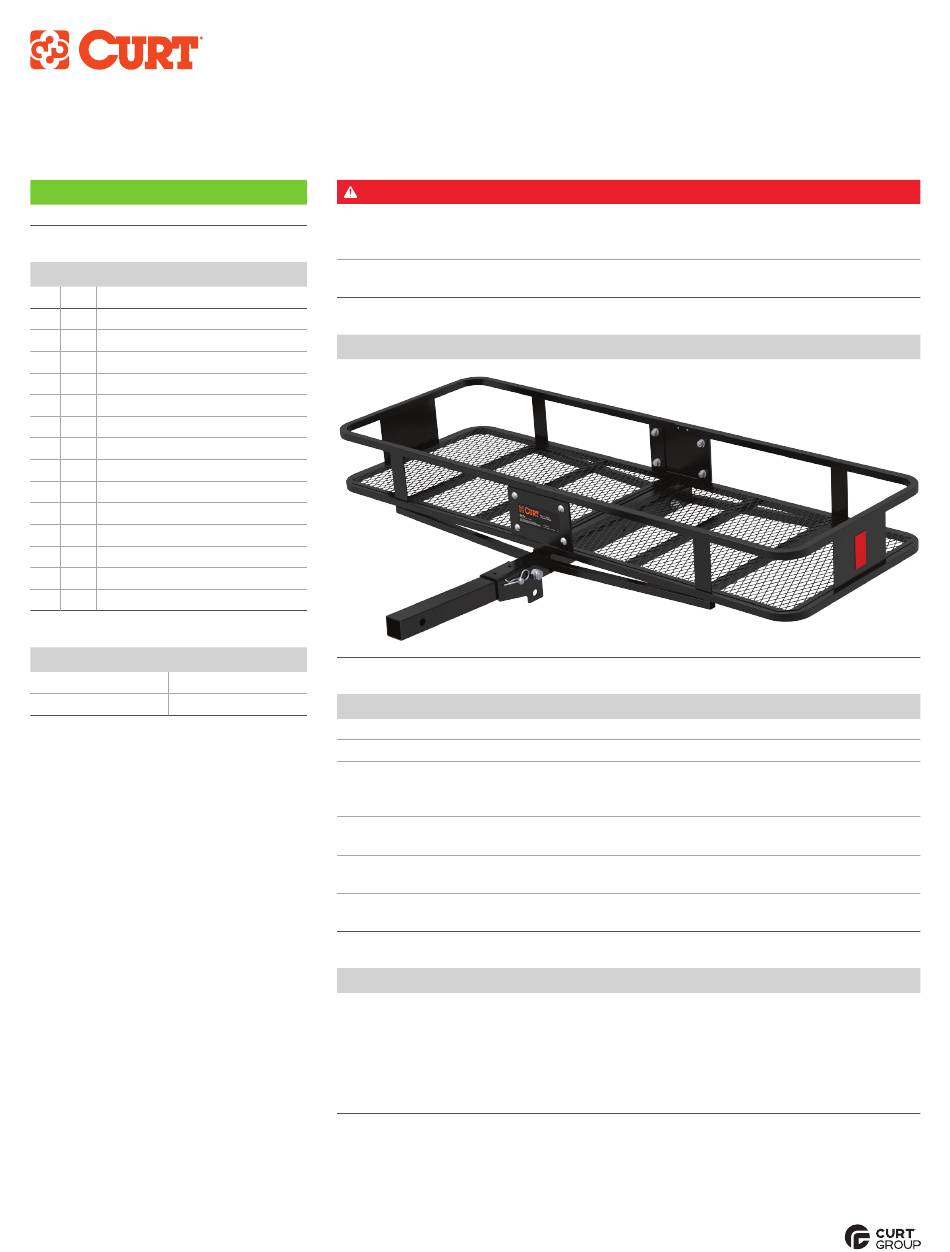

INSTALLATION MANUAL
Level of Difficulty
Easy
Parts List
#
Qty
Description
1
2
Frame half
2
1
Shank, 2"
3
2
Connecting plate
4
1
Folding shank assembly
5
1
Clip
6
1
Pin, 5/8"
7
1
Lock nut, M16
8
1
Hex head bolt, M16*80
9
2
Lock nut, M12
10 2
Flat washer, M12
11 2
Hex bolt, M12*75
12 8
Lock nut, M10
13 8
Flat washer, M10
14 8
Carriage bolt, M10*20
Tools Required
Open wrench, 17mm
Open wrench, 24mm
Open wrench, 19mm Adjustable wrench
CURTMFG.COM
•
NEED ASSISTANCE?
WARNING
Do not exceed maximum weight capacity of 500 lbs. when using 2"
receiver tube. Distribute the weight evenly on platform when hauling a load.
NOTE: This carrier is not intended for transporting people.
Do not carry loads wider or deeper than carrier. Do not carry flammable items
on carrier. Do not allow exhaust fumes to blow directly on items. This is a fire hazard.

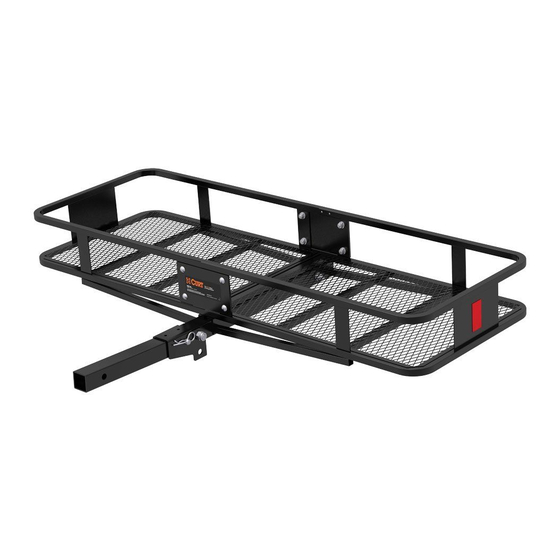

Product Photo
Notes and Maintenance
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
To protect the product, wax after installing. Regular waxing is recommended
to add a protective layer over the finish. Do not use any type of polish or wax
that may contain abrasives that could damage the finish.
For polished, gloss and other smooth finishes,
polish may be used to clear small scratches and scuffs on the finish.
Mild automotive detergent may be used to clean the product. Do not use dish detergent, abrasive
cleaners, abrasive pads, wire brushes or other similar products that may damage the finish.
Refer to the table to the left when securing hardware during the
installation process to help prevent damage to the product or vehicle.
Product Registration
CURT Group stands behind our products with industry leading warranties.
You can help us continue to improve our product line and help us understand
your needs by registering your purchase by visiting:
warranty.curtgroup.com/surveys
At CURT Group, customer is king. We value your feedback and we use that information to make
improvements on our products. Please, take a minute and let us know how we are doing.
•
877.287.8634
•
18151-INS-RB
•
PAGE 1
