Curt Group 45144 Installation Manual

INSTALLATION MANUAL
Level of Difficulty
Easy
Weight Capacity
Gross trailer weight (GTW)
Tongue weight (TW)
Parts List
Item Qty Description
1 1 Loaded ball mount assembly
2 1 Anti-rattle clamp plate
3 1 Anti-rattle hitch pin
4 1 Clip
Tools Required
Torque wrench Socket
Torque Specifications
1" bolt 250 ft-lbs.
1/2" anti-rattle pin 35 ft-lbs.
Use above torque setting unless otherwise noted
Product Registration
CURT Group stands behind our products
with industry-leading warranties. Provide
feedback and help us to improve our
products by registering your purchase at:
warranty.curtgroup.com/surveys
CURTMFG.COM
• NEED ASSISTANCE?
WARNING
Never exceed the vehicle manufacturer's recommended towing capacity. The ratings of
the trailer ball are intended to represent the capability of the product and in no way reflect
the ratings or capacity of the towing system it is being used with. The consumer or
operator are strongly advised to know the ratings of the various components of the
towing system and never exceed the limits of the lowest rated component being used.
7,500 lbs.
Use of any pin other than what is provided by the manufacturer
750 lbs.
could be a serious safety hazard and will void the warranty.
Ensure that the safety chains operate freely around the trailer ball
system and do not become entangled in the trailer ball system.
When the ball can be moved five degrees or more from a vertical position with minimal force,
by hand, the product has reached the end of its useful life and must be replaced. Continued
use of a worn trailer ball assembly may result in the trailer becoming separated from the
vehicle. Consult CURT customer service if you have any questions.
Periodically check the hex nut and ensure it is tightened to the correct torque specifications.
Before every use, be sure the snap ring on the pivot pin
of the trailer ball assembly is in place and properly seated.
Immediately discontinue product use if the snap ring is missing on the end of the trailer ball
pivot pin or if the trailer ball pin has backed partially out of the trailer ball assembly.

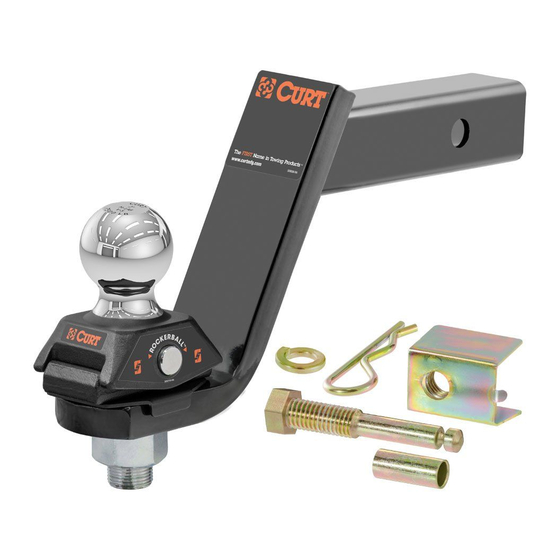

Product Photo
NOTICE
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
Ensure the trailer ball size matches the trailer coupler.
If it does not, the trailer could become uncoupled.
To help prevent damage to the product or vehicle, refer to the specified
torque specifications when securing hardware during the installation process.
RockerBall
• 877.287.8634 • 45144-INS-RB
should be greased prior to initial use and periodically as described in step 3.
™
• PAGE 1
45144
