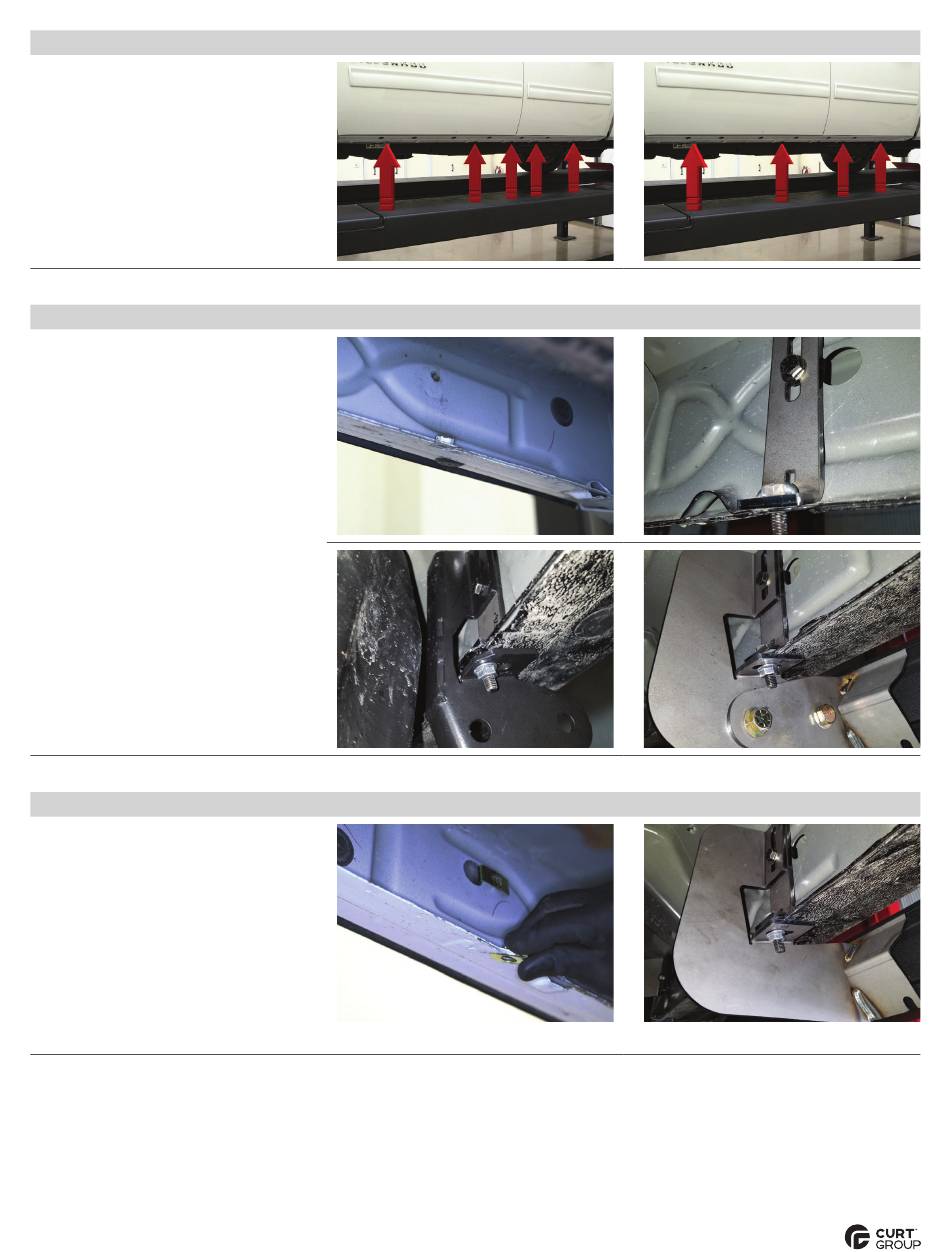

Step 1
Starting on the driver side, locate the five
mounting locations underneath the vehicle.
This installation will use the first, second,
fourth and fifth mounting tabs.
Note: Each bracket is specific to a mounting
location. Refer to page 1 product image for
correct locations.
Step 2
Starting at the front driver-side mounting
location, locate the threaded hole on the
inside of the body panel and place an
L-bracket on to that panel.
Attach one standard mounting bracket to the
L-bracket and vehicle using an M8 hex bolt,
flat washer and lock washer.
Attach the pinch weld with a 5/16" flat washer
and nylock nut. Attach a step bracket using
two 7/16" hex bolts, two 7/16" lock washers,
two 7/16" flat washers and two 7/16" hex nuts.
Snug the hardware, but do not fully tighten.
Repeat this step for the
second mounting location.
Step 3
Locate the fourth mounting tab from step 1.
Insert an M8 clip nut through the access hole
and align it over the adjacent smaller hole.
Secure an L-bracket and middle bracket to the
vehicle with an M8 hex bolt, lock washer and
flat washer.
Attach the pinch weld with a 5/16" flat washer
and nylock nut. Snug the hardware, but do not
fully tighten.
