INSTALLATION MANUAL
Level of Difficulty
Moderate
Installation difficulty levels are based on time
and effort involved and may vary depending on
the installer level of expertise, condition of the
vehicle and proper tools and equipment.
Installed Attachment Tabs
Height 18"
Width 24"
Parts List
Item Qty Description
1 1 Tow bar base plate
2 2 Spacer plate, 1" x 5/8"
3 2 Tow bar mounting tab
4 2 Safety cable, 7,500 lbs.
5 2 Hex bolt,
M10 x 1-1/2", 35mm, CL10.9
6 2 Conical washer, 3/8"
7 2 Carriage bolt,
1/2"-13 x 2-1/4", grade 8
8 2 Carriage bolt,
1/2"-13 x 1-1/2", grade 8
9 4 Square hole spacer,
1/4" x 1" x 3"
10 4 Flange nut, 1/2"-13, grade 8
11 2 Quick link, 1/2"
12 2 Socket plug
Tools Required
Torque wrench Drill
Socket, 3/4" Drill bit, 1/2"
Socket, 7/16" Wrench, 7/16"
Socket, 13mm Reciprocating saw
Socket, 16mm Nut driver, 5/16"
Socket, 17mm Fishwire, 1/2"
(includes two)
Socket, 18mm
CURTMFG.COM
• PRODUCT SUPPORT: 877.287.8634
WARNING
Never exceed the vehicle manufacturer's recommended gross vehicle weight rating (GVWR).

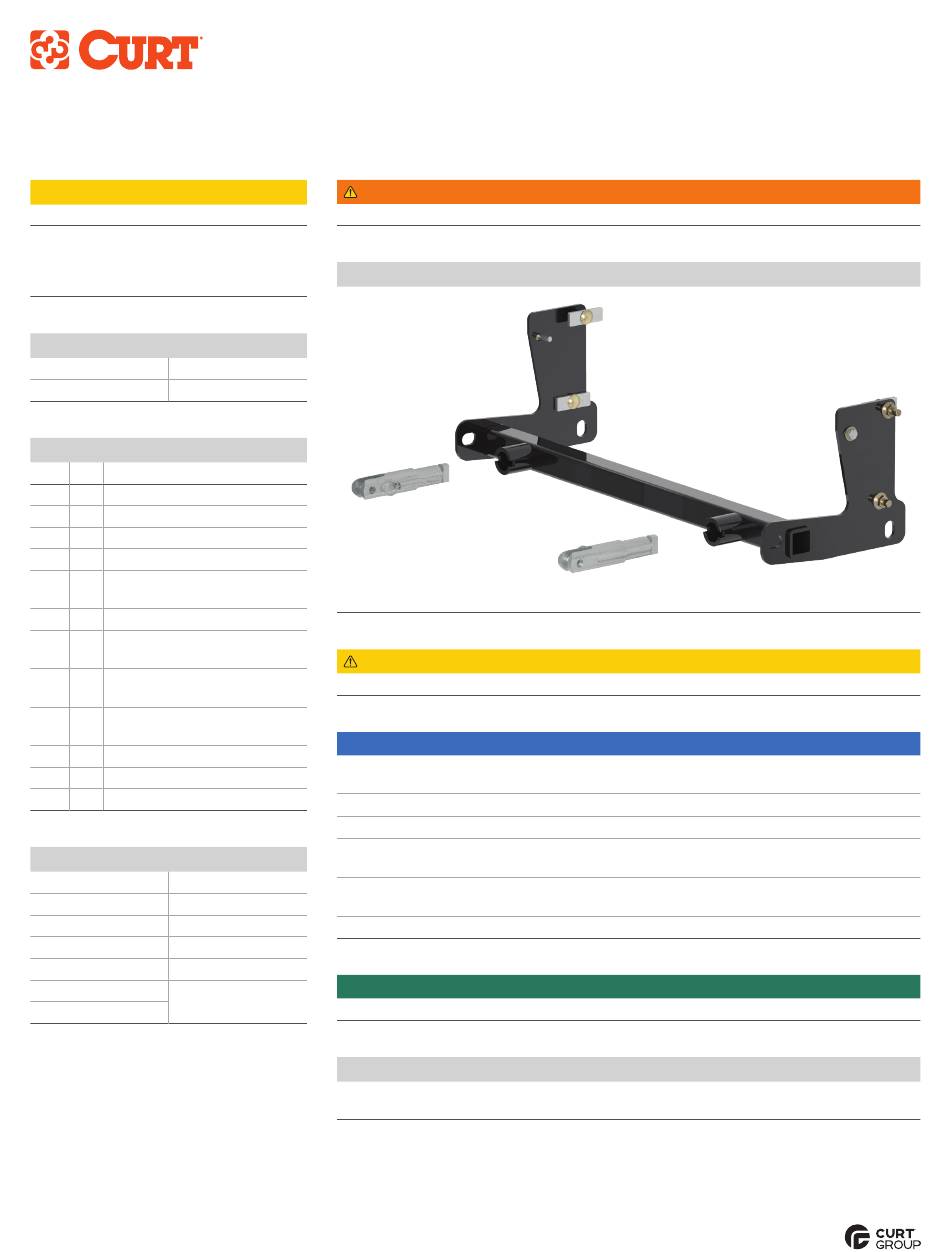

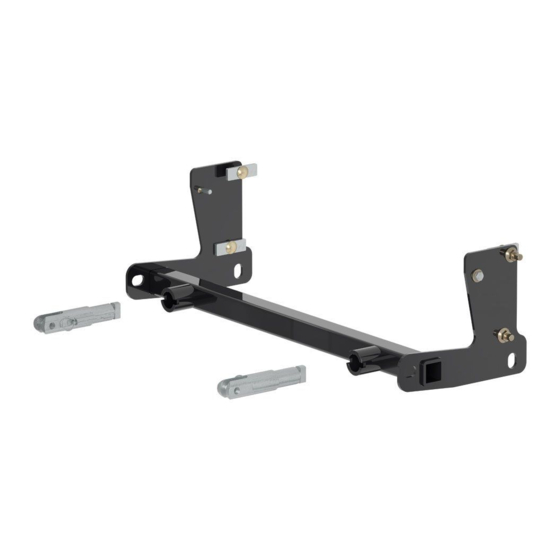

Product Photo
Not pictured: Safety cables, quick links and socket plugs
CAUTION
Take care when cutting any plastic or metal as injury may occur if done improperly.
NOTICE
Visit www.curtmfg.com for a full-color copy of this
instruction manual, as well as helpful videos, guides and much more!
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
This installation requires the factory bumper and front underbody panel to be
temporarily removed and reinstalled. Some drilling and trimming are required.
To help prevent damage to the product or vehicle, refer to the specified
torque specifications when securing hardware during the installation process.
If equipped, we recommend removing the base plate attachment tabs when not in use.
SAFETY INSTRUCTIONS
Safety glasses should be worn at all times while installing this product.
Product Registration and Warranty
CURT stands behind our products with industry-leading warranties. To get copies of the product
warranties, register your purchase or provide feedback, visit: warranty.curtgroup.com/surveys
• 70105-INS-RD • 04/14/2020 • ECN6926 • PAGE 1
