INSTALLATION MANUAL
Level of Difficulty
Easy
Parts List
1
Driver / left side 4" sidebar
1
Passenger / right side 4" sidebar
6
Mounting brackets, universal
12
Hex bolts, M10
12
Flat washers, M10
12
Lock washers, M10
18
Nylon lock nuts, M8
18
Flat washers, M8
Torque Specifications
M6 bolt
3 ft-lbs.
M8 bolt
7 ft-lbs.
M10 bolt
16 ft-lbs.
M12 bolt
28 ft-lbs.
1/4" bolt
3 ft-lbs.
5/16" bolt
7 ft-lbs.
3/8" bolt
16 ft-lbs.
7/16" bolt
20 ft-lbs.
1/2" bolt
28 ft-lbs.
Use above torque setting unless otherwise noted
Tools Required
Ratchet
Torque wrench
Socket set
Level
ARIESAUTOMOTIVE.COM

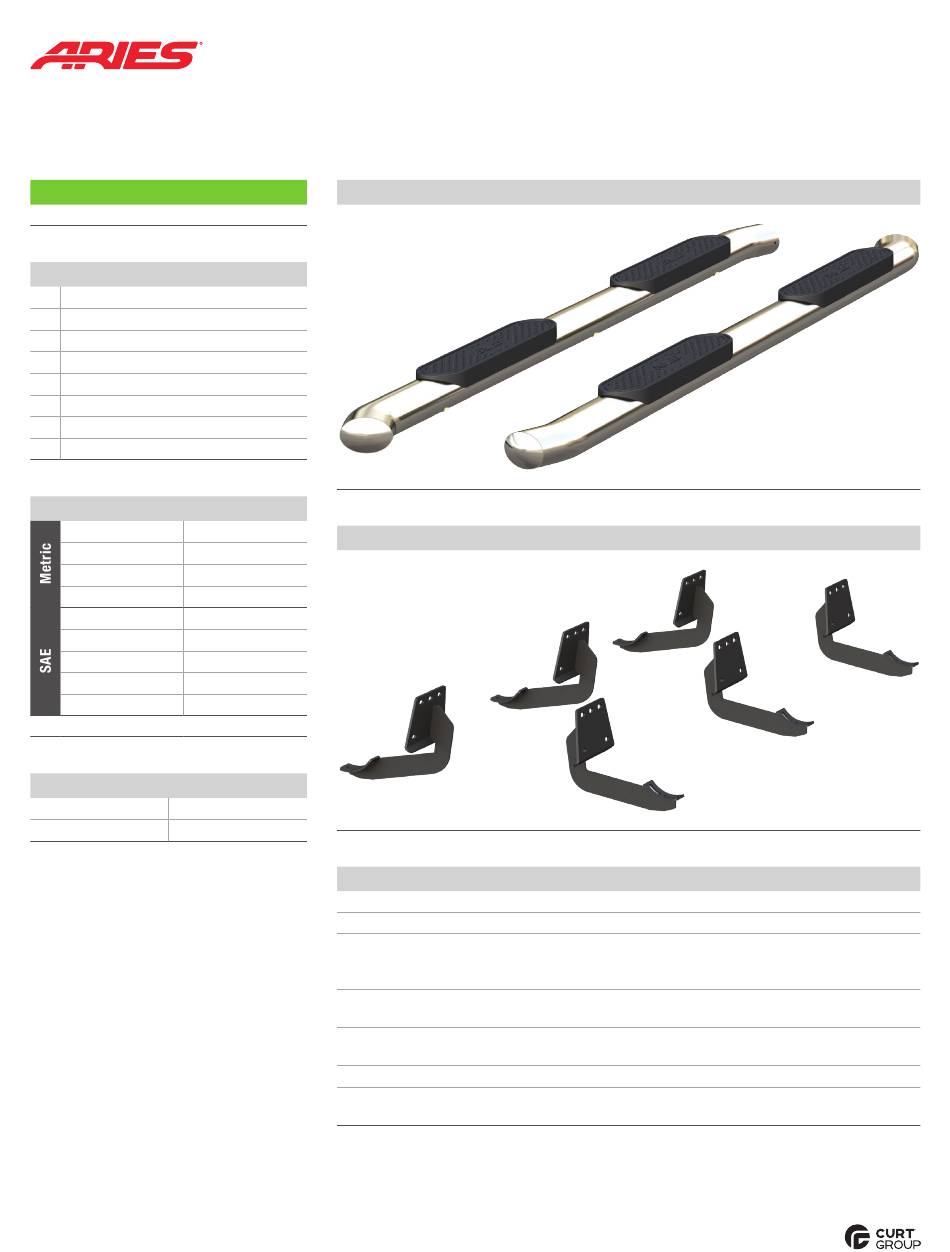

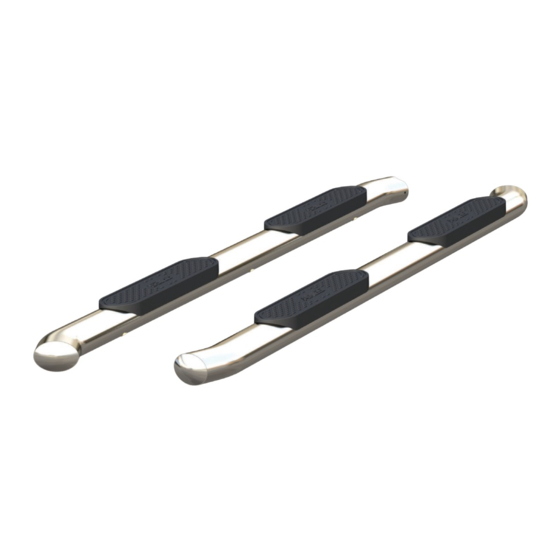

Product Photo
Brackets and Hardware
Notes and Maintenance
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
To protect the product, wax after installing. Regular waxing is recommended
to add a protective layer over the finish. Do not use any type of polish or wax
that may contain abrasives that could damage the finish.
For polished, gloss and other smooth finishes,
polish may be used to clear small scratches and scuffs on the finish.
Mild automotive detergent may be used to clean the product. Do not use dish detergent, abrasive
cleaners, abrasive pads, wire brushes or other similar products that may damage the finish.
Refer to the last page of this manual for warranty and product registration information.
Refer to the table to the left when securing hardware during the
installation process to help prevent damage to the product or vehicle.
NEED ASSISTANCE?
877.287.8634
Front
S225045-2-INS-RB
PAGE 1
S225045-2
Rear
